RN42L-MDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RN32,34,42,44

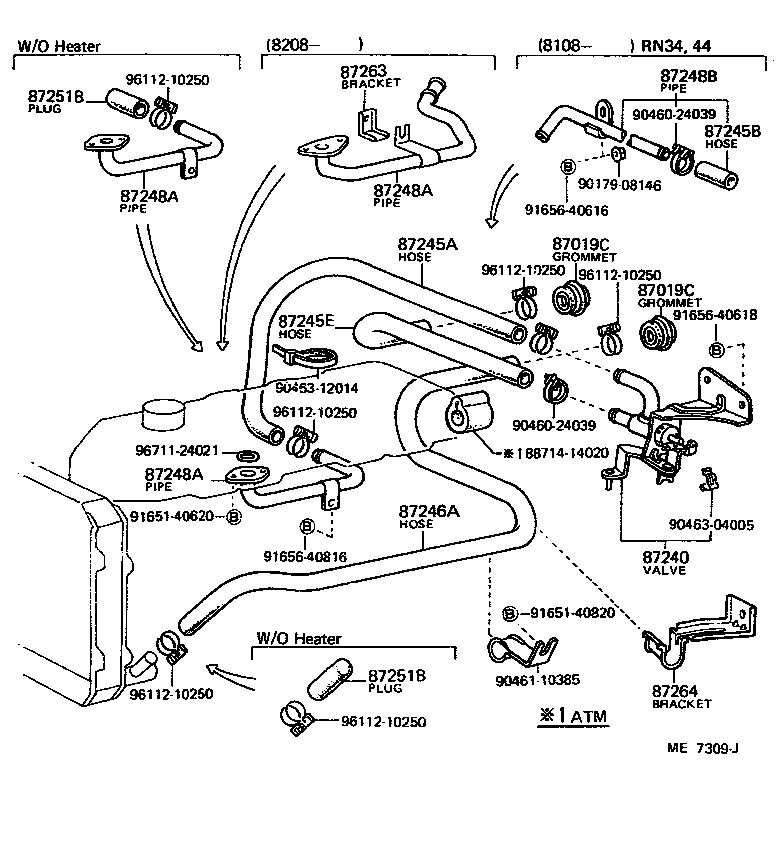

Click highlighted areas on diagram

diagram 87019C 87019C 87240 87245A 87245B 87245E 87246A 87248A 87248A 87248A 87248B 87251B 87251B 87263 87264 8871414020 9017908146 9046024039 9046024039 9046110385 9046304005 9046312014 9165140620 9165140820 9165640616 9165640618 9165640816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9671124021
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN40,RN3#,4#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN40,RN3#,4#

 2
87240 - VALVE ASSY, HEATER WATER
87240-89111

LN40,RN3#,4#

 1
87245A - HOSE, HEATER WATER, INLET A
99552-30780

RN3#,42

L=780

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89122

LN40,RN3#,4#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89129

RN32,42

 1
87248A - PIPE, HEATER WATER INLET, A
87208-89102

RN32,42

 1
87208-89102

RN3#,42

 1
87248A - PIPE, HEATER WATER INLET, A
87208-89102

RN32,42

 1
87208-89102

RN3#,42

 1
87248A - PIPE, HEATER WATER INLET, A
87208-89102

RN32,42

 1
87208-89102

RN3#,42

 1
87251B - PLUG, HEATER WATER
90339-16007

RN3#,4#..USA

W/BOOST VENTILATOR

 2
87251B - PLUG, HEATER WATER
90339-16007

RN3#,4#..USA

W/BOOST VENTILATOR

 2
Common parts
88714-14020
90179-08146
90460-24039
90461-10385
90463-04005
90463-12014
91651-40620
91651-40820
91656-40616
91656-40618
91656-40816
96112-10250
96711-24021
