RN42L-KRK (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

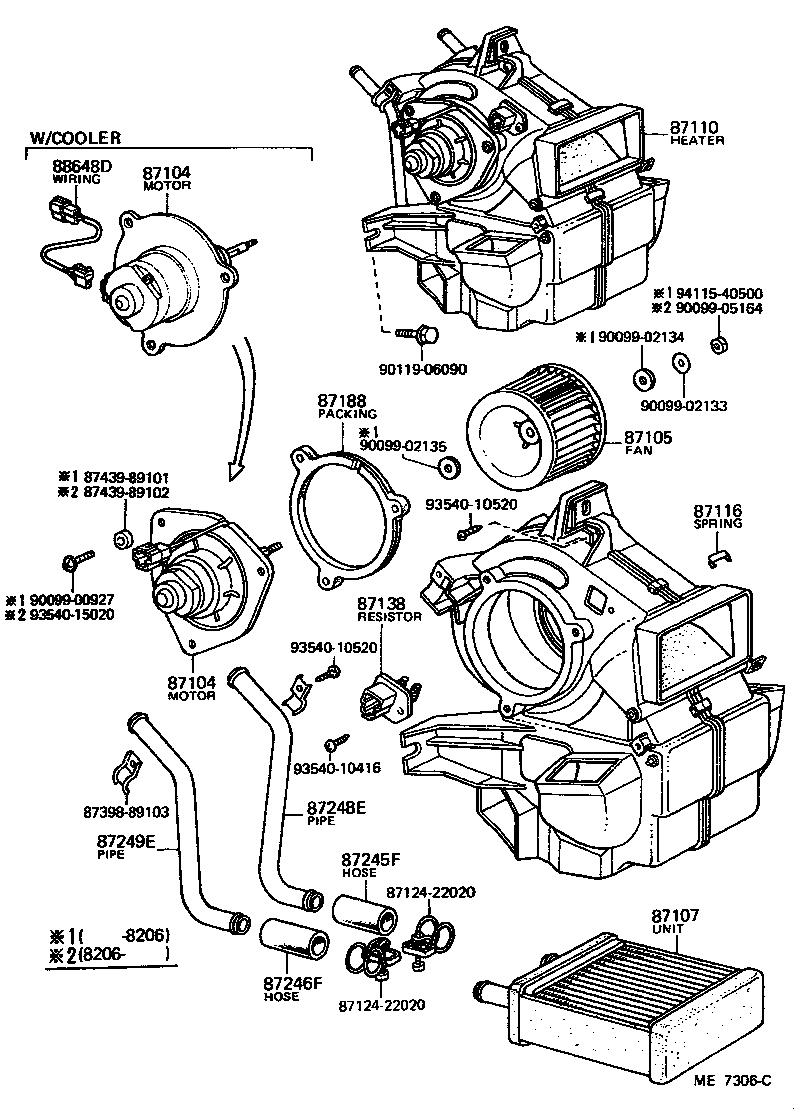

Click highlighted areas on diagram

diagram 87104 87104 87105 87107 87110 87116 8712422020 8712422020 87138 87188 87245F 87246F 87248E 87249E 8739889103 8743989101 8743989102 88648D 9009900927 9009902133 9009902134 9009902135 9009905164 9011906090 9354010416 9354010520 9354010520 9354015020 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95401

LN40,RN3#,4#

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95401

LN40,RN3#,4#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12040

LN40,RN3#,4#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-89109

LN40,RN3#,4#

HEAVY DUTY

 1
87110 - HEATER ASSY
87110-89130

LN40,RN3#,4#

HEAVY DUTY

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

LN40,RN3#,4#

 6
87138 - RESISTOR, HEATER BLOWER
87138-87003

LN40,RN3#,4#

 1
87188 - PACKING, HEATER BLOWER MOTOR
87128-22010

LN40,RN3#,4#

 1
87245F - HOSE, HEATER WATER, INLET F
99552-30040

LN40,RN3#,4#

*H,L=40

 1
87246F - HOSE, HEATER WATER, OUTLET F
99552-30040

LN40,RN3#,4#

*H,L=40

 1
87248E - PIPE, HEATER WATER INLET, E
87248-89116

LN40,RN3#,4#

 1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87248-89117

LN40,RN3#,4#

 1
Common parts
87124-22020
87398-89103
87439-89101
87439-89102
90099-00927
90099-02133
90099-02134
90099-02135
90099-05164
90119-06090
93540-10416
93540-10520
93540-15020
94115-40500
