RN42L-KRK (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )20R,22R

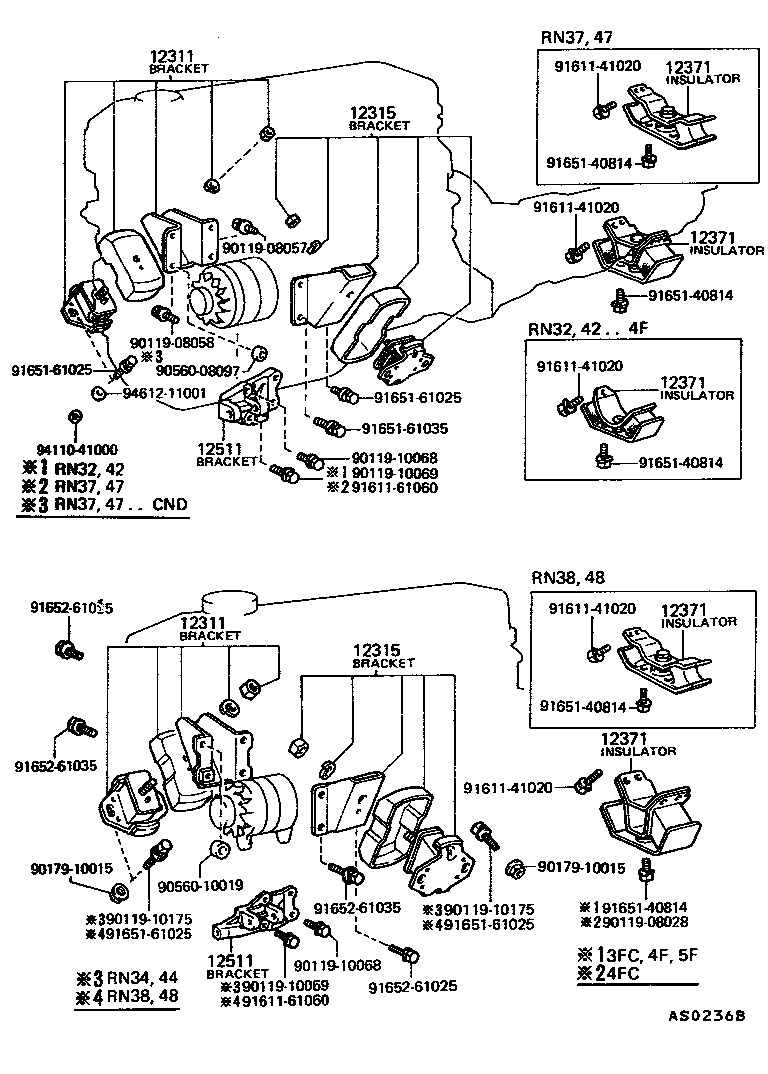

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-38080 |
20R..RN32,42 |
1 | ||
| 12301-38180 |
20R..RN32,42 |
1 | ||
| 12301-38120 |
20R..RN32,42 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-38080 |
20R..RN32,42 |
1 | ||
| 12301-38180 |
20R..RN32,42 |
1 | ||
| 12301-38120 |
20R..RN32,42 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-38090 |
20R..RN32,42 |
1 | ||
| 12302-38071 |
20R..RN32,42 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-38090 |
20R..RN32,42 |
1 | ||
| 12302-38071 |
20R..RN32,42 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-31040 |
20R..RN32,42..4F |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-31040 |
20R..RN32,42..4F |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-31040 |
20R..RN32,42..4F |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-31040 |
20R..RN32,42..4F |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-31040 |
20R..RN32,42..4F |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-38030 |
20R,22R..RN3#,4# |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-38030 |
20R,22R..RN3#,4# |
1 | ||
| Common parts | ||||
| 90119-08028 | ||||
| 90119-08057 | ||||
| 90119-08058 | ||||
| 90119-10068 | ||||
| 90119-10069 | ||||
| 90119-10175 | ||||
| 90179-10015 | ||||
| 90560-08097 | ||||
| 90560-10019 | ||||
| 91611-41020 | ||||
| 91611-61060 | ||||
| 91651-40814 | ||||
| 91651-61025 | ||||
| 91651-61035 | ||||
| 91652-61025 | ||||
| 91652-61035 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
