RN42L-KRA3 (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808-8108)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN40,RN3#,4# 12V 3.4W,12V 3.4W |
13 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-89132 |
RN3#,42..(DLX,STD)..USA |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN40,RN3#,4# BULB=3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-89142 |
RN3#,42 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89142 |
RN3#,42..(DLX,STD)..USA |
1 | ||
| 83110-89164 |
RN3#,42..(DLX,STD)..USA |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-89142 |
RN3#,42..(DLX,STD)..USA |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-89130 |
RN3#,42..(DLX,STD)..USA |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-89130 |
RN3#,42 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN40,RN3#,4# |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN40,RN3#,4# |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89113 |
RN3#,42 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89112 |
RN3#,42 |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89111 |
RN3#,42 |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-89110 |
RN32,42 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-89130 |
LN40,RN3#,4# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-89130 |
RN3#,42 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20360 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20020 | ||||
| 83165-20100 | ||||
| 90159-40029 | ||||
| 90183-04083 | ||||
| 93540-13016 | ||||
| 93540-14012 | ||||
| 94115-40400 | ||||

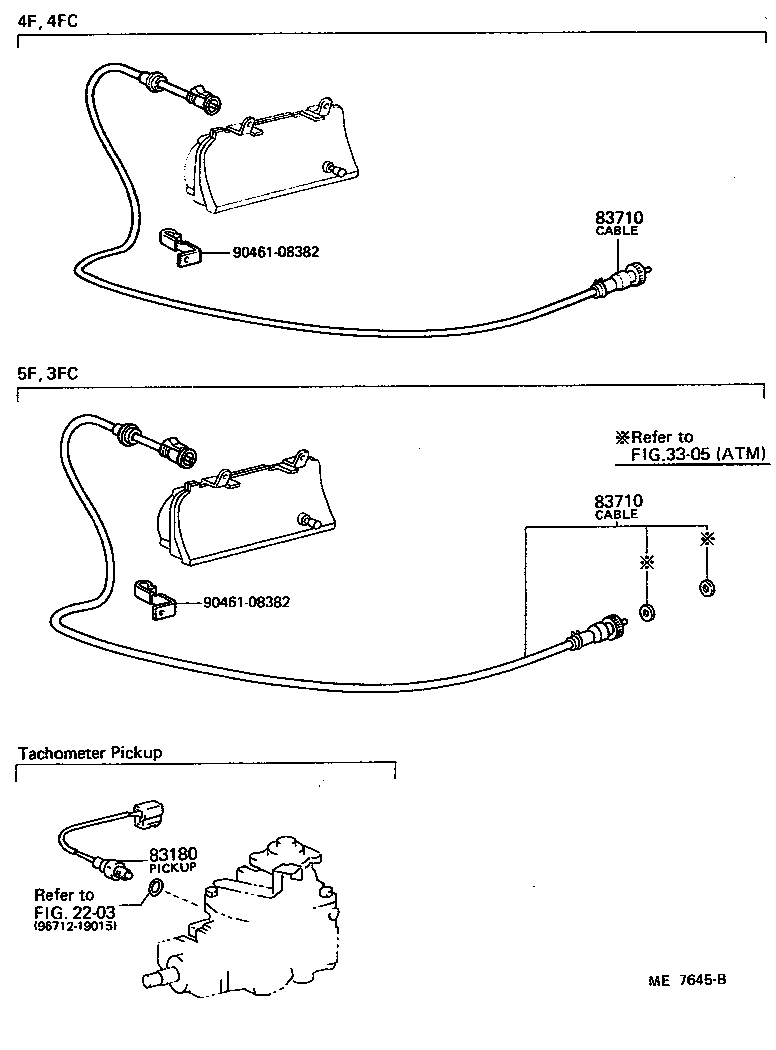

(7808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89122 |
RN32,42..4F |
1 | ||
| 83710-89125 |
RN32,42..4F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89122 |
RN32,42..4F |
1 | ||
| 83710-89125 |
RN32,42..4F |
1 | ||
| Common parts | ||||
| 90461-08382 | ||||
| 96712-19015 | ||||
| Linked diagrams | ||||
| 2203 | ||||
| 3305 | ||||

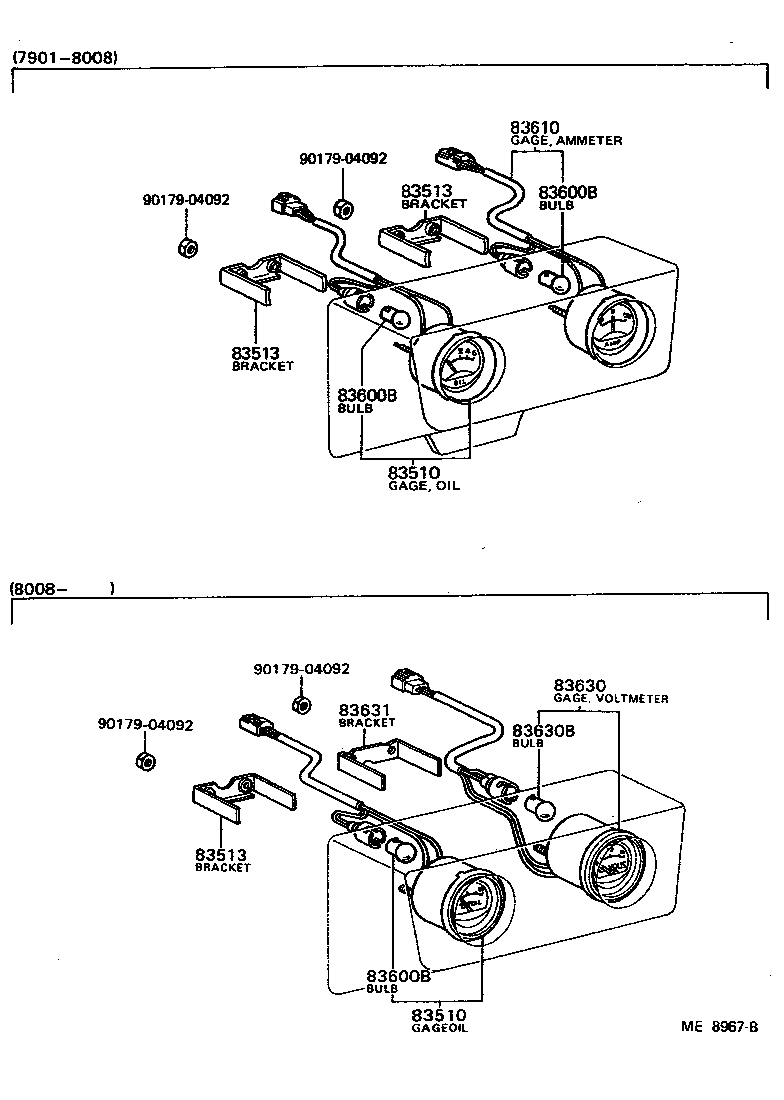

(7808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-04092 | ||||
