RN42L-KDHA3 (1979)

Toyota Pickup

Production Jan 1979 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )RN3#,4#

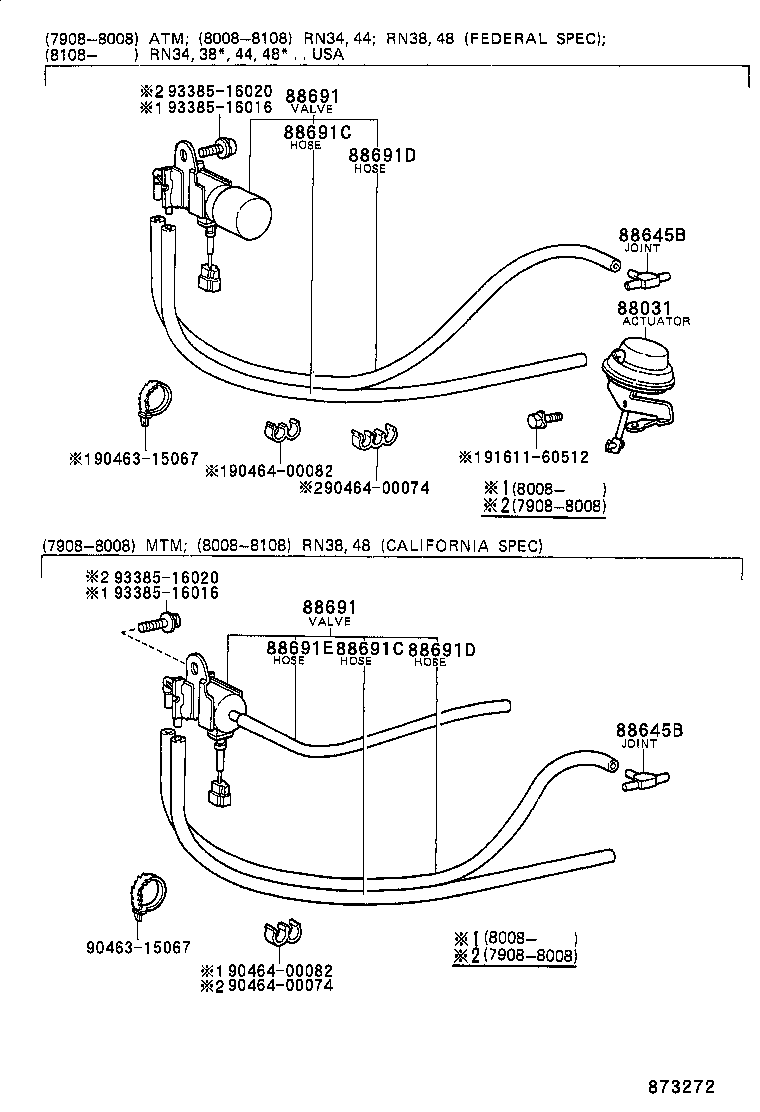

Click highlighted areas on diagram

diagram 88031 88645B 88645B 88691 88691 88691C 88691C 88691D 88691D 88691E 9046315067 9046315067 9046400074 9046400074 9046400082 9046400082 9161160512 9338516016 9338516016 9338516020 9338516020
Part # Description Qty Price
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90414-04002

RN3#,42..MTM..USA

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90414-04002

RN3#,42..MTM..USA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89107

RN32,42..MTM..USA

 1
88690-89105

RN3#,42..MTM..USA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89107

RN32,42..MTM..USA

 1
88690-89105

RN3#,42..MTM..USA

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

RN3#,42..MTM..USA

*H,L=300,MARK=#*

 1
95411-10195

RN3#,42..USA

*H,L=700,MARK=#1

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

RN3#,42..MTM..USA

*H,L=300,MARK=#*

 1
95411-10195

RN3#,42..USA

*H,L=700,MARK=#1

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-10060

RN3#,42..USA

*H,L=510,MARK=#0

 1
95411-10060

RN3#,42..USA

*H,L=600,MARK=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-10060

RN3#,42..USA

*H,L=510,MARK=#0

 1
95411-10060

RN3#,42..USA

*H,L=600,MARK=#0

 1
88691E - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.3
95411-10130

RN3#,42..MTM..USA

*H,L=200,MARK=#1

 1
Common parts
90463-15067
90464-00074
90464-00082
91611-60512
93385-16016
93385-16020

(7808-7908)

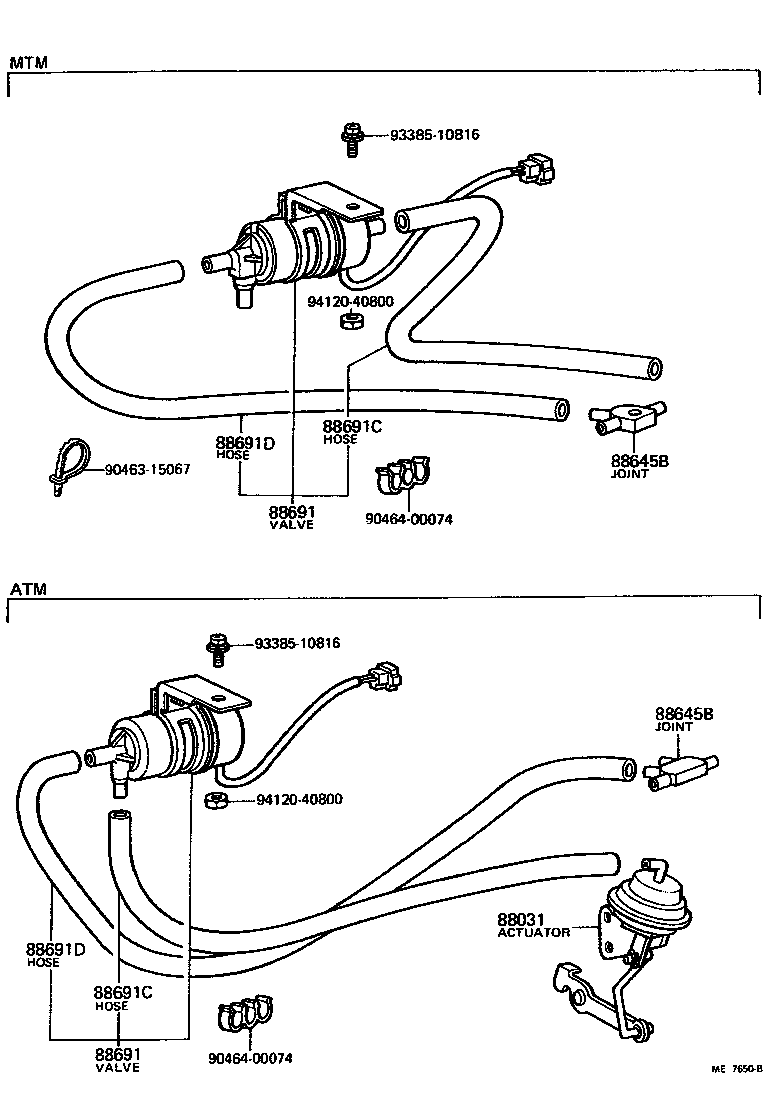

Click highlighted areas on diagram

diagram 88031 88645B 88645B 88691 88691 88691C 88691C 88691D 88691D 9046315067 9046400074 9046400074 9338510816 9338510816 9412040800 9412040800
Part # Description Qty Price
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90414-04002

RN3#,42..MTM..USA

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90414-04002

RN3#,42..MTM..USA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89107

RN32,42..MTM..USA

 1
88690-89105

RN3#,42..MTM..USA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89107

RN32,42..MTM..USA

 1
88690-89105

RN3#,42..MTM..USA

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

RN3#,42..MTM..USA

*H,L=300,MARK=#*

 1
95411-10195

RN3#,42..USA

*H,L=700,MARK=#1

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

RN3#,42..MTM..USA

*H,L=300,MARK=#*

 1
95411-10195

RN3#,42..USA

*H,L=700,MARK=#1

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-10060

RN3#,42..USA

*H,L=510,MARK=#0

 1
95411-10060

RN3#,42..USA

*H,L=600,MARK=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-10060

RN3#,42..USA

*H,L=510,MARK=#0

 1
95411-10060

RN3#,42..USA

*H,L=600,MARK=#0

 1
Common parts
90463-15067
90464-00074
93385-10816
94120-40800
