RN42L-KDA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7908)

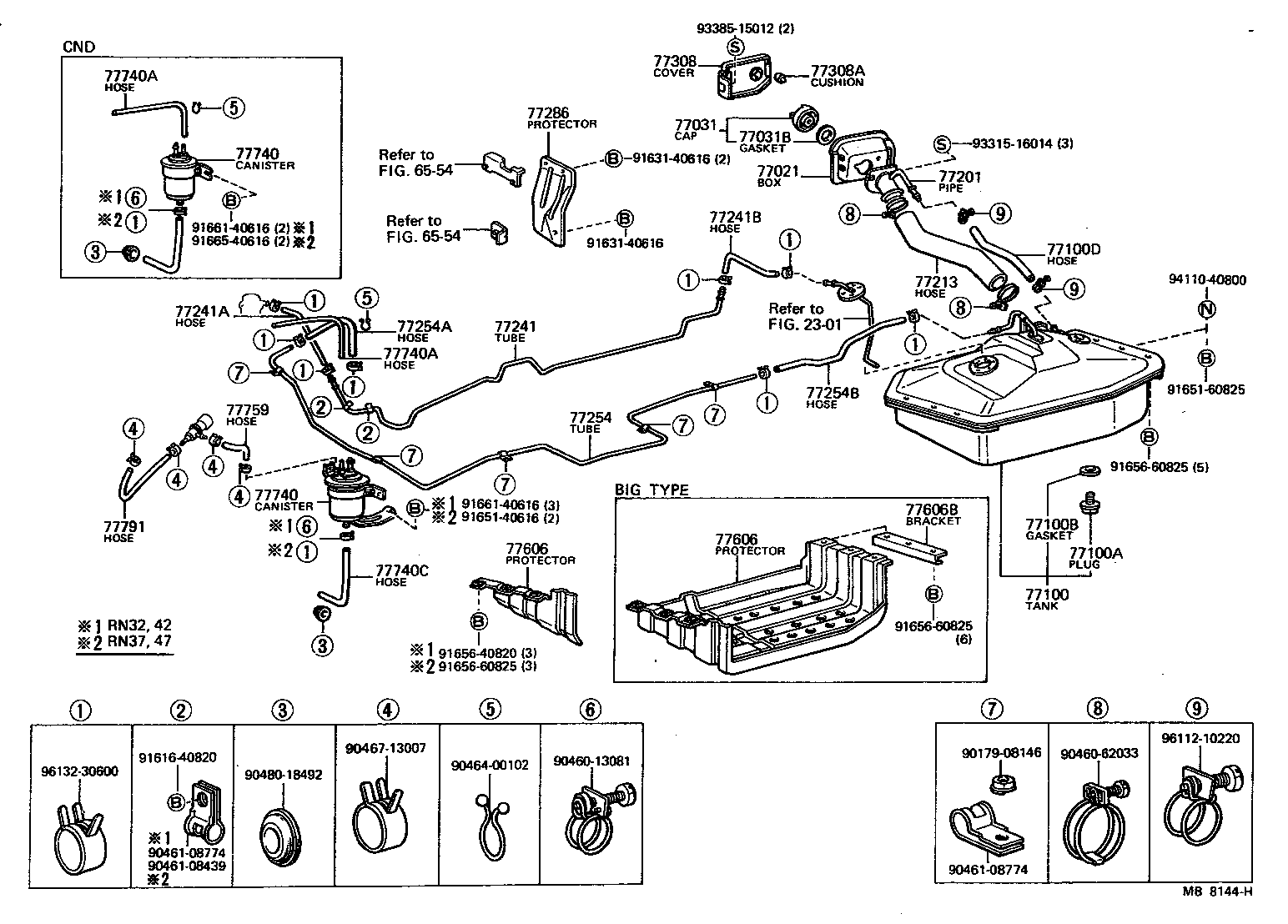

Click highlighted areas on diagram

diagram 2301 6554 6554 77021 77031 77031B 77100 77100A 77100B 77100D 77201 77213 77241 77241A 77241B 77254 77254A 77254B 77286 77308 77308A 77606 77606 77606B 77740 77740 77740A 77740A 77740C 77759 77791 9017908146 9046013081 9046062033 9046108439 9046108774 9046108774 9046400102 9046713007 9048018492 9161640820 9163140616 9163140616 9165140616 9165160825 9165640820 9165660825 9165660825 9165660825 9166140616 9166140616 9166540616 9331516014 9338515012 9411040800 9611210220 9613230600
Part # Description Qty Price
77031 - CAP ASSY, FUEL TANK
77310-14070

RN3#,42

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

LN40,RN3#,4#

 1
77100 - TANK ASSY, FUEL
77100-35110

RN42

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN40,RN3#,4#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN40,RN3#,4#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-21883

LN40,RN3#,4#

L=320

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35110

RN3#,42

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-35040

LN40,RN3#,4#

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-35130

RN42,44

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06040

RN32,42

*H,L=400

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06030

RN42

*H,L=220

 1
95332-06022

RN42

*H,L=220

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-35020

RN3#,42

 1
77261-35021

RN3#,42

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06028

RN3#,42

*H,L=280

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77209-35100

LN40,RN4#

 1
77286 - PROTECTOR, FUEL TANK INLET PIPE
65625-89106

LN40,RN3#,4#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

RN3#,42

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35010

LN40,RN3#,4#

L=313

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35010

LN40,RN3#,4#

L=313

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35070

RN3#,42..USA

CALIFORNIA SPEC

 1
77740-35070

RN3#,42..USA

 1
77740-35090

RN3#,42..(3QT,HLF)..USA

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35070

RN3#,42..USA

CALIFORNIA SPEC

 1
77740-35070

RN3#,42..USA

 1
77740-35090

RN3#,42..(3QT,HLF)..USA

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN3#,42

*H,L=480,MARK=#*

 1
95411-39960

RN3#,42..3QT,HLF

*H,L=480

 1
95411-39960

RN3#,42..(3QT,HLF)..USA

CALIFORNIA SPEC,*H,L=510

 1
95411-19960

RN32,42;RN37..USA

*H,L=510,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN3#,42

*H,L=480,MARK=#*

 1
95411-39960

RN3#,42..3QT,HLF

*H,L=480

 1
95411-39960

RN3#,42..(3QT,HLF)..USA

CALIFORNIA SPEC,*H,L=510

 1
95411-19960

RN32,42;RN37..USA

*H,L=510,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35070

RN32,34,42,44

 1
77759 - HOSE, CHARCOAL CANISTER
77759-14011

RN3#,42..USA;RN42..HVY..CND

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77249-35010

RN3#,42..USA

 1
Common parts
90179-08146
90460-13081
90460-62033
90461-08439
90461-08774
90464-00102
90467-13007
90480-18492
91616-40820
91631-40616
91651-40616
91651-60825
91656-40820
91656-60825
91661-40616
91665-40616
93315-16014
93385-15012
94110-40800
96112-10220
96132-30600
Linked diagrams
2301
6554

(7908-8008)

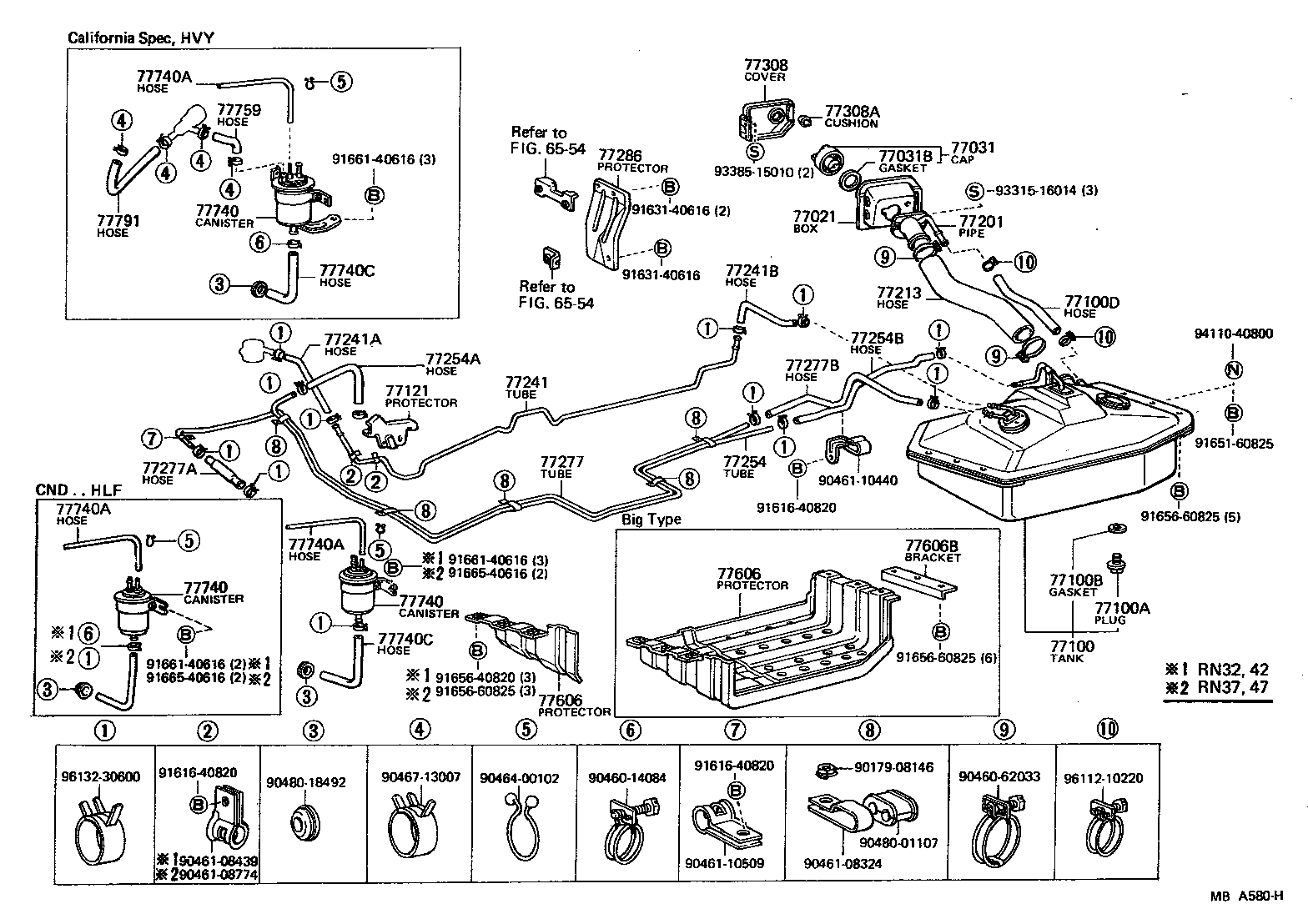

Click highlighted areas on diagram

diagram 6554 6554 77021 77031 77031B 77100 77100A 77100B 77100D 77121 77201 77213 77241 77241A 77241B 77254 77254A 77254B 77277 77277A 77277B 77286 77308 77308A 77606 77606 77606B 77740 77740 77740 77740A 77740A 77740A 77740C 77740C 77759 77791 9017908146 9046014084 9046062033 9046108324 9046108439 9046108774 9046110440 9046110509 9046400102 9046713007 9048001107 9048018492 9161640820 9161640820 9161640820 9163140616 9163140616 9165160825 9165640820 9165660825 9165660825 9165660825 9166140616 9166140616 9166140616 9166540616 9166540616 9331516014 9338515010 9411040800 9611210220 9613230600
Part # Description Qty Price
77031 - CAP ASSY, FUEL TANK
77310-14070

RN3#,42

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

LN40,RN3#,4#

 1
77100 - TANK ASSY, FUEL
77100-35110

RN42

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN40,RN3#,4#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN40,RN3#,4#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-21883

LN40,RN3#,4#

L=320

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35110

RN3#,42

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-35040

LN40,RN3#,4#

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-35130

RN42,44

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06040

RN32,42

*H,L=400

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06030

RN42

*H,L=220

 1
95332-06022

RN42

*H,L=220

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-35020

RN3#,42

 1
77261-35021

RN3#,42

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06028

RN3#,42

*H,L=280

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77209-35100

LN40,RN4#

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-35060

RN3#,42

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12010

RN32,42

 1
90447-12014

RN3#,42

 1
77286 - PROTECTOR, FUEL TANK INLET PIPE
65625-89106

LN40,RN3#,4#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

RN3#,42

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35010

LN40,RN3#,4#

L=313

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35010

LN40,RN3#,4#

L=313

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35070

RN3#,42..USA

CALIFORNIA SPEC

 1
77740-35070

RN3#,42..USA

 1
77740-35090

RN3#,42..(3QT,HLF)..USA

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35070

RN3#,42..USA

CALIFORNIA SPEC

 1
77740-35070

RN3#,42..USA

 1
77740-35090

RN3#,42..(3QT,HLF)..USA

 1
77740 - CANISTER ASSY, CHARCOAL
77740-35070

RN3#,42..USA

CALIFORNIA SPEC

 1
77740-35070

RN3#,42..USA

 1
77740-35090

RN3#,42..(3QT,HLF)..USA

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN3#,42

*H,L=480,MARK=#*

 1
95411-39960

RN3#,42..3QT,HLF

*H,L=480

 1
95411-39960

RN3#,42..(3QT,HLF)..USA

CALIFORNIA SPEC,*H,L=510

 1
95411-19960

RN32,42;RN37..USA

*H,L=510,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN3#,42

*H,L=480,MARK=#*

 1
95411-39960

RN3#,42..3QT,HLF

*H,L=480

 1
95411-39960

RN3#,42..(3QT,HLF)..USA

CALIFORNIA SPEC,*H,L=510

 1
95411-19960

RN32,42;RN37..USA

*H,L=510,MARK=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

RN3#,42

*H,L=480,MARK=#*

 1
95411-39960

RN3#,42..3QT,HLF

*H,L=480

 1
95411-39960

RN3#,42..(3QT,HLF)..USA

CALIFORNIA SPEC,*H,L=510

 1
95411-19960

RN32,42;RN37..USA

*H,L=510,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35070

RN32,34,42,44

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77754-35070

RN32,34,42,44

 1
77759 - HOSE, CHARCOAL CANISTER
77759-14011

RN3#,42..USA;RN42..HVY..CND

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77249-35010

RN3#,42..USA

 1
Common parts
90179-08146
90460-14084
90460-62033
90461-08324
90461-08439
90461-08774
90461-10440
90461-10509
90464-00102
90467-13007
90480-01107
90480-18492
91616-40820
91631-40616
91651-60825
91656-40820
91656-60825
91661-40616
91665-40616
93315-16014
93385-15010
94110-40800
96112-10220
96132-30600
Linked diagrams
6554
