RN42L-KDA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

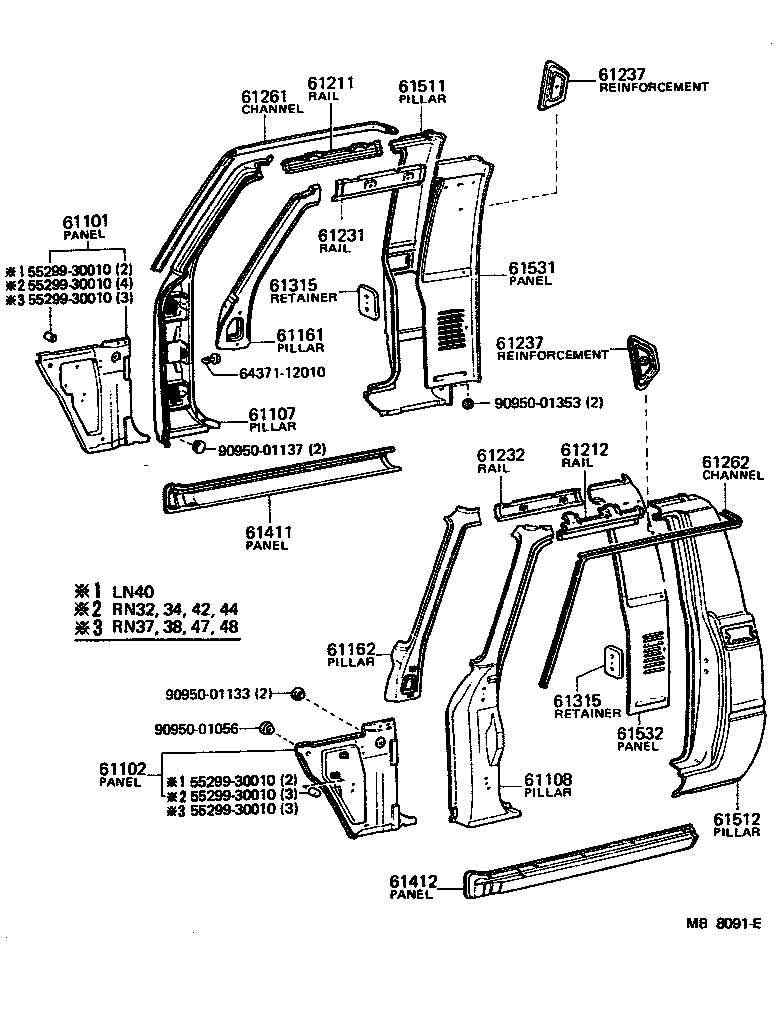

Click highlighted areas on diagram

diagram 5529930010 5529930010 5529930010 5529930010 5529930010 5529930010 61101 61102 61107 61108 61161 61162 61211 61212 61231 61232 61237 61237 61261 61262 61315 61315 61411 61412 61511 61512 61531 61532 6437112010 9095001056 9095001133 9095001137 9095001353
Part # Description Qty Price
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-89119

LN40,RN32,34,42,44

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-89115

RN3#,42

 1
61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61027-89101

LN40,RN3#,4#

 1
61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61028-89101

LN40,RN3#,4#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-89105

LN40,RN3#,4#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-89105

LN40,RN3#,4#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-89103

LN40,RN3#,4#

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-89103

LN40,RN3#,4#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-89107

LN40,RN32,34,42,44

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-89107

LN40,RN32,34,42,44

 1
61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE
61766-89102

LN40,RN3#,4#

 2
61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE
61766-89102

LN40,RN3#,4#

 2
61261 - CHANNEL, ROOF DRIP, RH
61261-89103

LN40,RN3#,4#

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-89103

LN40,RN3#,4#

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-89101

LN40,RN3#,4#

 2
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-89101

LN40,RN3#,4#

 2
61411 - PANEL, ROCKER, OUTER RH
61411-89104

LN40,RN3#,4#

 1
61412 - PANEL, ROCKER, OUTER LH
61412-89104

LN40,RN3#,4#

 1
61511 - PILLAR, QUARTER LOCK, RH
61511-89107

LN40,RN3#,4#

 1
61512 - PILLAR, QUARTER LOCK, LH
61512-89111

LN40,RN3#,4#

 1
61531 - PANEL, BACK CORNER, INNER RH
61531-89108

LN40,RN3#,4#

 1
61532 - PANEL, BACK CORNER, INNER LH
61532-89108

LN40,RN3#,4#

 1
Common parts
55299-30010
64371-12010
90950-01056
90950-01133
90950-01137
90950-01353
