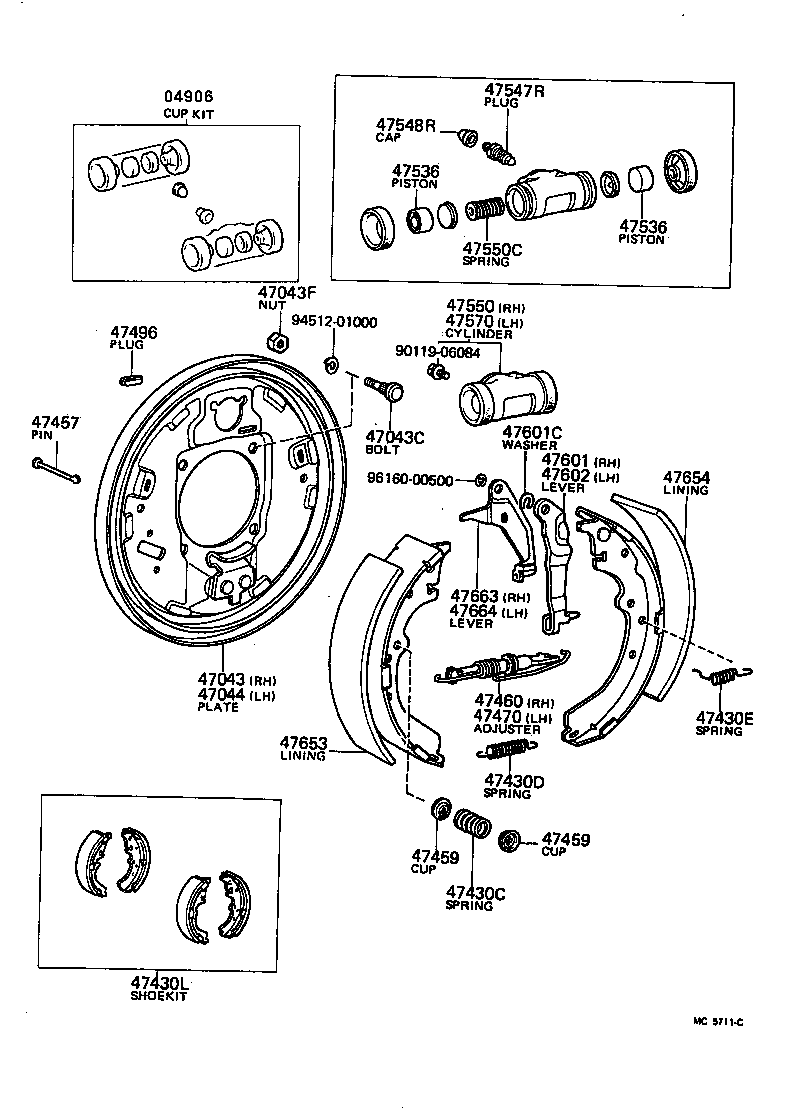

RN42L-KDA (1978)
Toyota Pickup
(7808- )LN40,RN32,34,42,44..3QT,HLF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-30100 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-35060 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10002 |
RN32,42..HLF *10-1.25PX37-18.5,*10-1.25PX35.5 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10172 |
LN40,RN32,34,42,44 |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-35050 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LN40,RN32,34,42,44..3QT,HLF |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-20005 |
LN40,RN32,34,42,44..3QT,HLF |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-12015 |
LN40,RN32,34,42,44..3QT,HLF |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04495-35060 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30020 |
LN40,RN32,34,42,44..3QT,HLF |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LN40,RN3#,4# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LN40,RN3#,4# |
8 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47061-35010 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47062-35010 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
LN40,RN32,34,42,44..3QT,HLF |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22020 |
LN40,RN32,34,42,44..HLF |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22020 |
LN40,RN32,34,42,44..HLF |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20030 |
LN40,RN32,34,42,44..3QT,HLF |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-39275 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-20010 |
LN40,RN32,34,42,44..HLF |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-39275 |
LN40,RN32,34,42,44..HLF |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-35020 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
LN40,RN3#,4# T=1.6 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-35020 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-30050 |
LN40,RN32,34,42,44..3QT,HLF |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47655-30050 |
LN40,RN32,34,42,44..3QT,HLF |
2 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47643-35010 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47644-35010 |
LN40,RN32,34,42,44..3QT,HLF |
1 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 94512-01000 | ||||
| 96160-00500 | ||||
