RN42L-KDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8008)

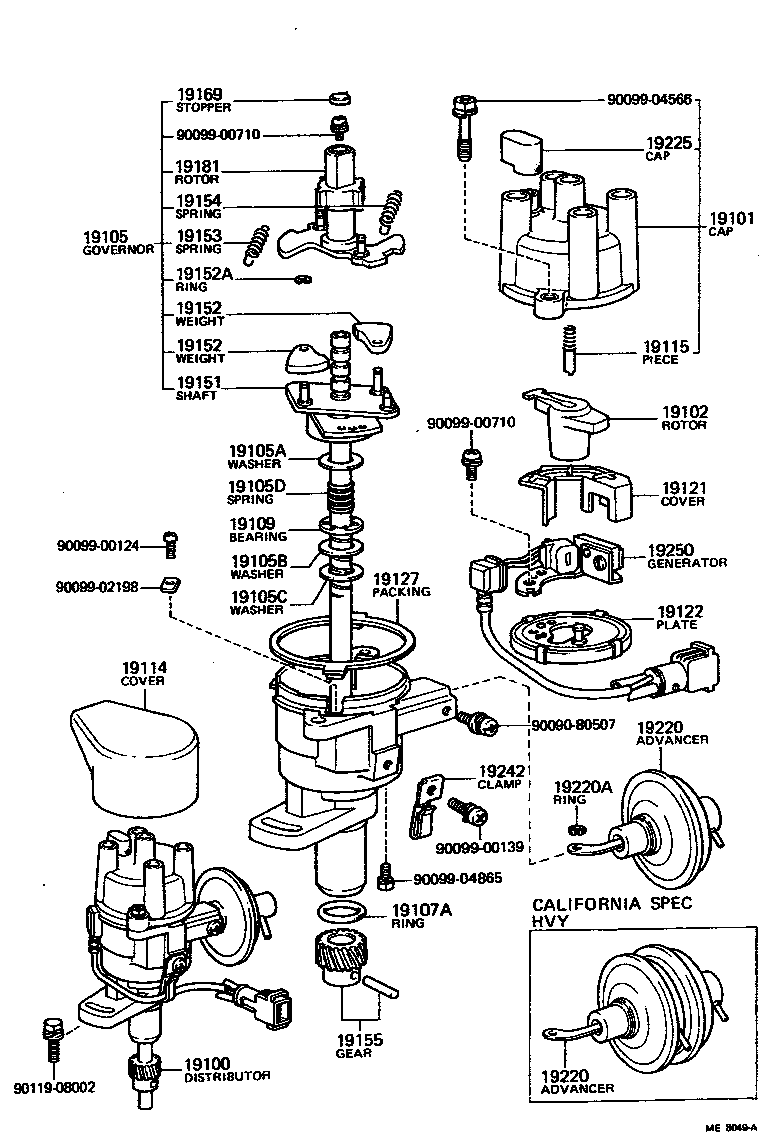

Click highlighted areas on diagram

diagram 19100 19101 19102 19105 19105A 19105B 19105C 19105D 19107A 19109 19114 19115 19121 19122 19127 19151 19152 19152 19152A 19153 19154 19155 19169 19181 19220 19220 19220A 19225 19242 19250 9009080507 9009900124 9009900139 9009900710 9009900710 9009902198 9009904566 9009904865 9011908002
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-38260

20R..RN3#,4#..(3QT,HLF)..USA

 1
19100-38150

20R..RN32,42..MTM..USA

 1
19100-38250

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-38150

20R..RN3#,4#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-33012

20R..RN3#,4#..USA

 1
19102-15021

20R..RN3#,4#..USA

 1
19105 - GOVERNOR SUB-ASSY
19105-38040

20R..RN3#,4#

 1
19105-38040

20R..RN3#,4#..(3QT,HLF)..USA

 1
19105-38210

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01417

20R..RN3#,4#

 1
19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01426

20R..RN3#,4#

 1
19105C - WASHER, NO.3(FOR GOVERNOR SHAFT THRUST)
90099-01427

20R..RN3#,4#

 1
19105D - SPRING, NO.1(FOR GOVERNOR SHAFT THRUST)
90099-17113

20R..RN3#,4#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

20R,22R..RN3#,4#

 1
19109 - BEARING, THRUST
19109-38010

20R..RN3#,4#

 1
19114 - COVER, WATER PROOF(FOR DISTRIBUTOR)
19114-38150

20R..RN3#,4#..USA

COLD SPEC

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

20R,22R..RN3#,4#

 1
19121 - COVER, DUST PROOF
19121-27020

20R..RN3#,4#

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-88262

20R,22R..RN3#,4#

 1
19127 - PACKING, DUST PROOF
19127-15010

20R..RN32,42

 1
19127-38150

20R..RN3#,4#

 1
19151 - SHAFT, GOVERNOR
19151-38011

20R,22R..RN3#,4#

 1
19152 - WEIGHT, GOVERNOR
19152-45060

20R..RN3#,4#

 2
19152 - WEIGHT, GOVERNOR
19152-45060

20R..RN3#,4#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07104

20R..RN3#,4#

 2
19153 - SPRING, GOVERNOR, A
19153-38040

20R..RN3#,4#

 1
19154 - SPRING, GOVERNOR, B
19154-38040

20R..RN3#,4#

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-38150

20R..RN3#,4#

 1
19169 - STOPPER, CAM GREASE
19169-32010

20R,22R..RN3#,4#

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-26280

20R..RN3#,4#..(3QT,HLF)..USA

 1
19181-38210

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
19181-26280

20R..RN3#,4#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-38150

20R..RN32,42..MTM

 1
19220-38260

20R..RN3#,4#..(3QT,HLF)..USA

 1
19220-38220

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-38150

20R..RN32,42..MTM

 1
19220-38260

20R..RN3#,4#..(3QT,HLF)..USA

 1
19220-38220

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

20R,22R..RN3#,4#

 1
19225 - CAP, RUBBER
19225-38011

20R,22R..RN3#,4#

 1
19242 - CLAMP, CORD
19242-26250

20R,22R..RN3#,4#

 1
19250 - GENERATOR ASSY, SIGNAL
19250-38210

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
19250-38260

20R..RN3#,4#..(3QT,HLF)..USA

 1
19250-38150

20R..RN3#,4#..USA

 1
Common parts
90090-80507
90099-00124
90099-00139
90099-00710
90099-02198
90099-04566
90099-04865
90119-08002
