RN42L-HRK (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

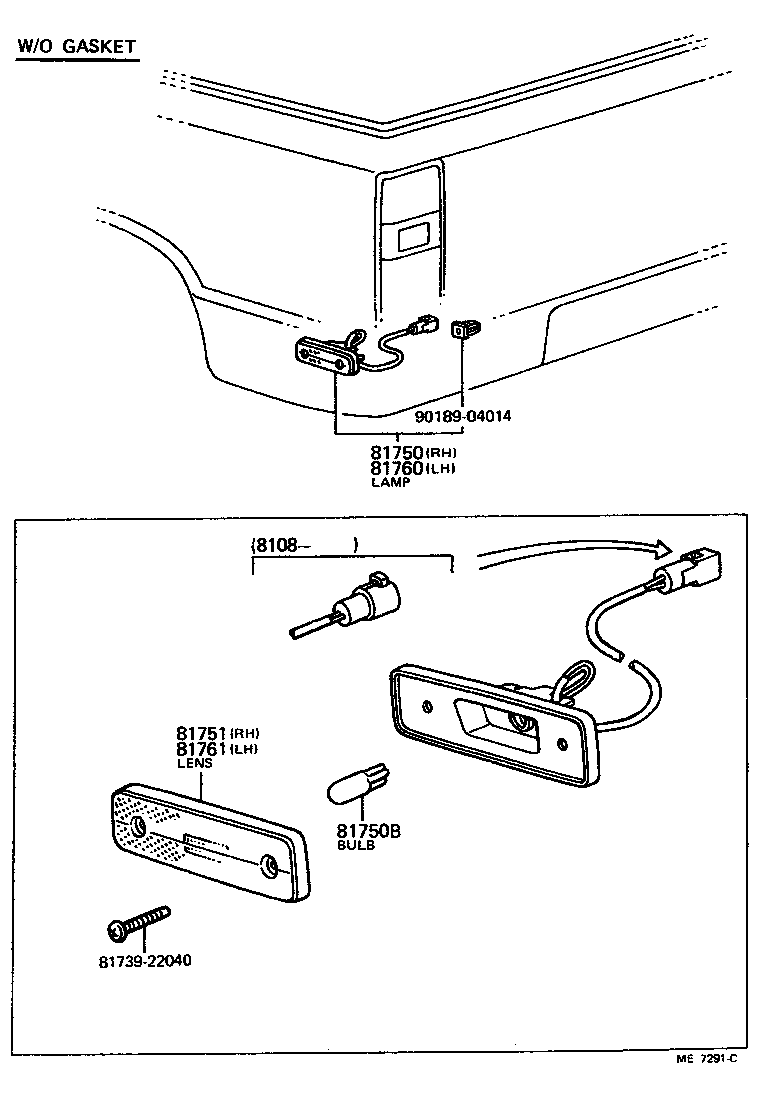

Click highlighted areas on diagram

diagram 8173922040 81750 81750B 81751 81760 81761 9018904014
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-39085

LN40,RN3#,4#..CBU

W/GASKET

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

LN40,RN3#,4#

12V 3.8W,12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-89107

LN40,RN3#,4#

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-39075

LN40,RN3#,4#..CBU

W/GASKET

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81761-89107

LN40,RN3#,4#

 1
Common parts
81739-22040
90189-04014

(7808- )

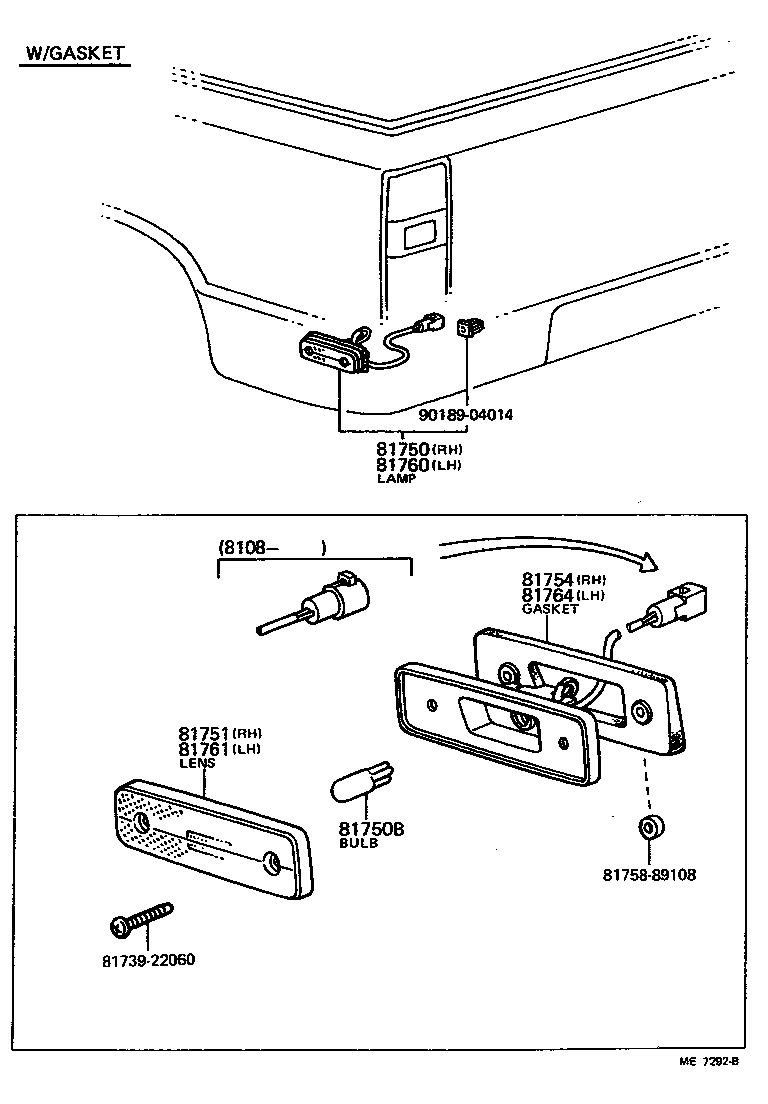

Click highlighted areas on diagram

diagram 8173922060 81750 81750B 81751 81754 8175889108 81760 81761 81764 9018904014
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-39085

LN40,RN3#,4#..CBU

W/GASKET

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

LN40,RN3#,4#

12V 3.8W,12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-89107

LN40,RN3#,4#

 1
81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH
81754-89108

LN40,RN3#,4#..CBU

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-39075

LN40,RN3#,4#..CBU

W/GASKET

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81761-89107

LN40,RN3#,4#

 1
81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH
81764-89108

LN40,RN3#,4#..CBU

 1
Common parts
81739-22060
81758-89108
90189-04014
