RN42L-HRK (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7908)

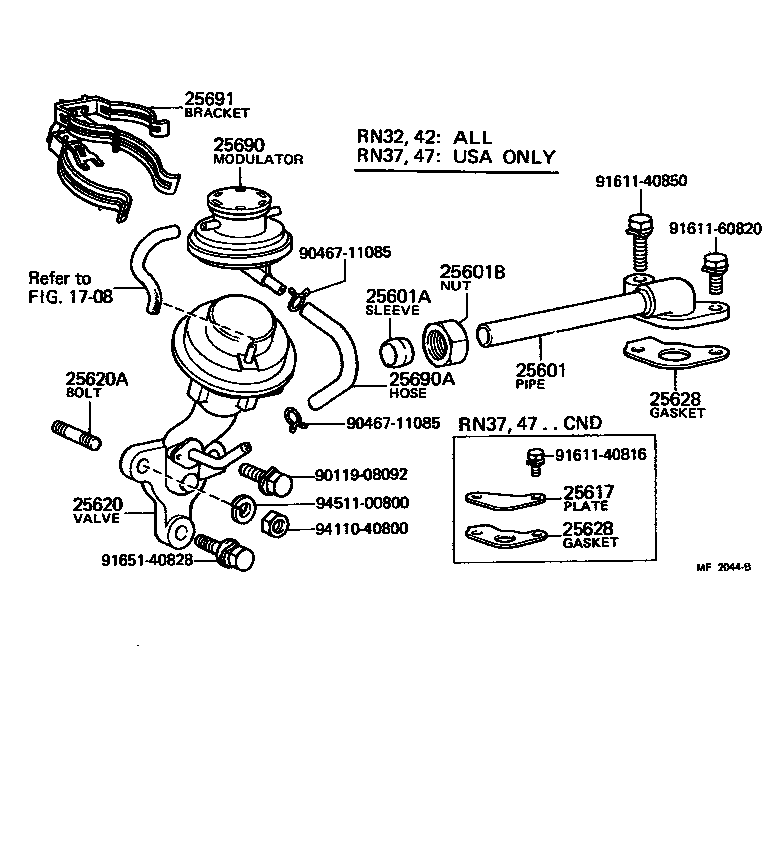

Click highlighted areas on diagram

diagram 1708 25601 25601A 25601B 25617 25620 25620A 25628 25628 25690 25690A 25691 9011908092 9046711085 9046711085 9161140816 9161140850 9161160820 9165140828 9411040800 9451100800
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010

20R,22R..RN32,34,42,44

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

20R,22R..RN32,34,42,44

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

20R,22R..RN32,34,42,44

 1
25620 - VALVE ASSY, EGR
25620-38210

20R..RN32,42..3FC

 1
25620-38211

20R..RN32,42..3FC

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207

20R,22R..RN32,34,42,44

 1
25628 - GASKET, EGR INLET
25628-38010

20R..RN3#,4#

 1
25628 - GASKET, EGR INLET
25628-38010

20R..RN3#,4#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-38020

20R..RN32,42

 1
25870-38030

20R..RN32,42

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-05147

20R..RN32,42

 1
90910-05137

20R..RN32,42

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-38030

20R..RN32,42

 1
25691-38040

20R..RN32,42

 1
Common parts
90119-08092
90467-11085
91611-40816
91611-40850
91611-60820
91651-40828
94110-40800
94511-00800
Linked diagrams
1708

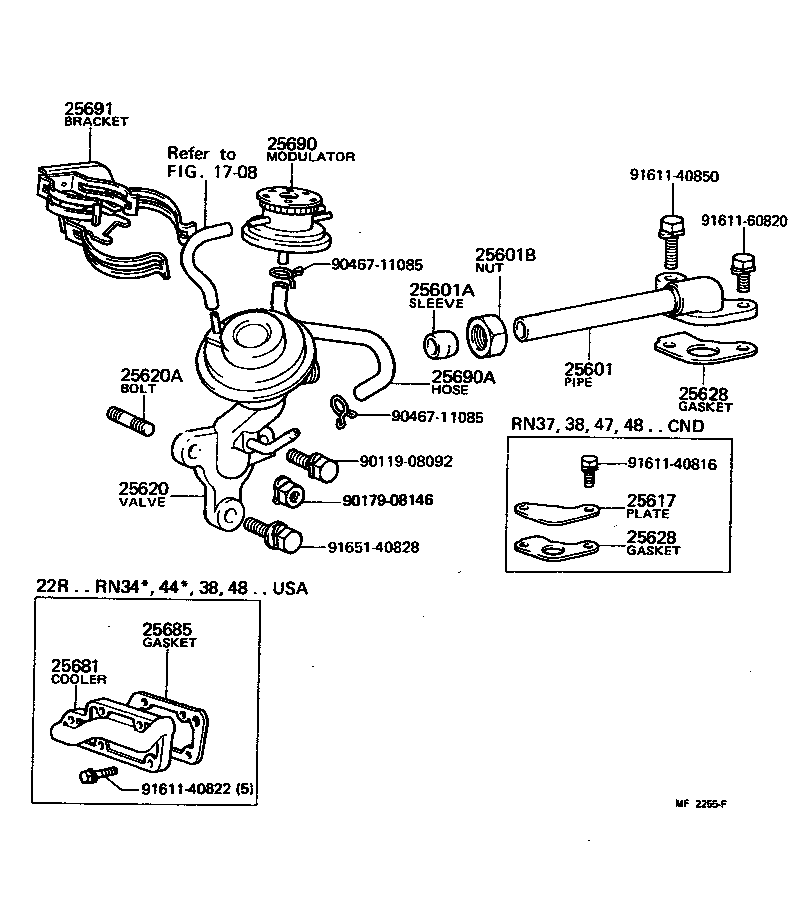

(7908- )20R,22R

Click highlighted areas on diagram

diagram 1708 25601 25601A 25601B 25617 25620 25620A 25628 25628 25681 25685 25690 25690A 25691 9011908092 9017908146 9046711085 9046711085 9161140816 9161140822 9161140850 9161160820 9165140828
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010

20R,22R..RN32,34,42,44

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

20R,22R..RN32,34,42,44

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

20R,22R..RN32,34,42,44

 1
25620 - VALVE ASSY, EGR
25620-38210

20R..RN32,42..3FC

 1
25620-38211

20R..RN32,42..3FC

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207

20R,22R..RN32,34,42,44

 1
25628 - GASKET, EGR INLET
25628-38010

20R..RN3#,4#

 1
25628 - GASKET, EGR INLET
25628-38010

20R..RN3#,4#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25690-38020

20R..RN32,42

 1
25870-38030

20R..RN32,42

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-05147

20R..RN32,42

 1
90910-05137

20R..RN32,42

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-38030

20R..RN32,42

 1
25691-38040

20R..RN32,42

 1
Common parts
90119-08092
90179-08146
90467-11085
91611-40816
91611-40822
91611-40850
91611-60820
91651-40828
Linked diagrams
1708
