RN42L-HRK (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8208)20R,22R

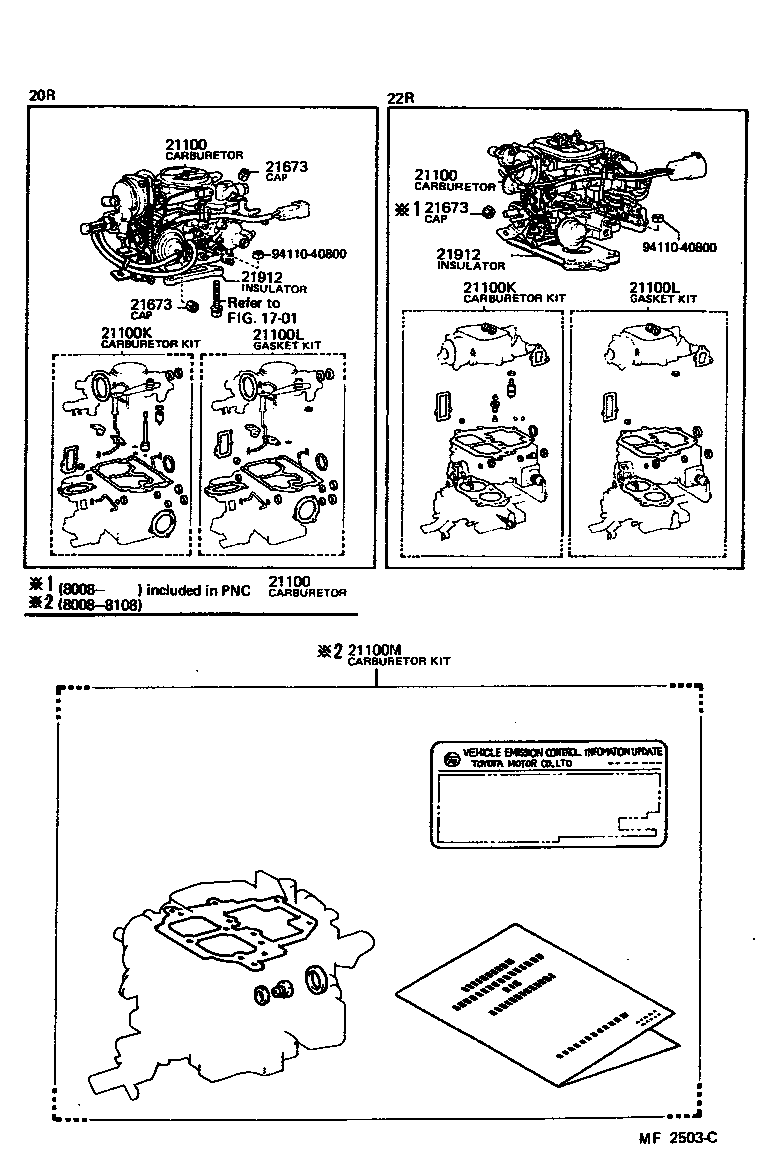

Click highlighted areas on diagram

diagram 1701 21100 21100 21100K 21100K 21100L 21100L 21100M 21673 21673 21673 21912 21912 9411040800 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-38380

20R..RN3#,4#..CND

 1
21100-38361

20R..RN32,42..3FC

 1
21100 - CARBURETOR ASSY
21100-38380

20R..RN3#,4#..CND

 1
21100-38361

20R..RN32,42..3FC

 1
21100K - CARBURETOR KIT
04211-38014

20R..RN3#,4#

 1
04211-38014

20R..RN3#,4#..3QT,HLF

 1
21100K - CARBURETOR KIT
04211-38014

20R..RN3#,4#

 1
04211-38014

20R..RN3#,4#..3QT,HLF

 1
21100L - GASKET KIT, CARBURETOR
04212-38012

20R..RN3#,4#

 1
04212-38020

20R..RN3#,4#..3QT,HLF

 1
21100L - GASKET KIT, CARBURETOR
04212-38012

20R..RN3#,4#

 1
04212-38020

20R..RN3#,4#..3QT,HLF

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-38030

20R..RN3#,4#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-38030

20R..RN3#,4#

 1
Common parts
94110-40800
Linked diagrams
1701
