RN42L-HDK (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )

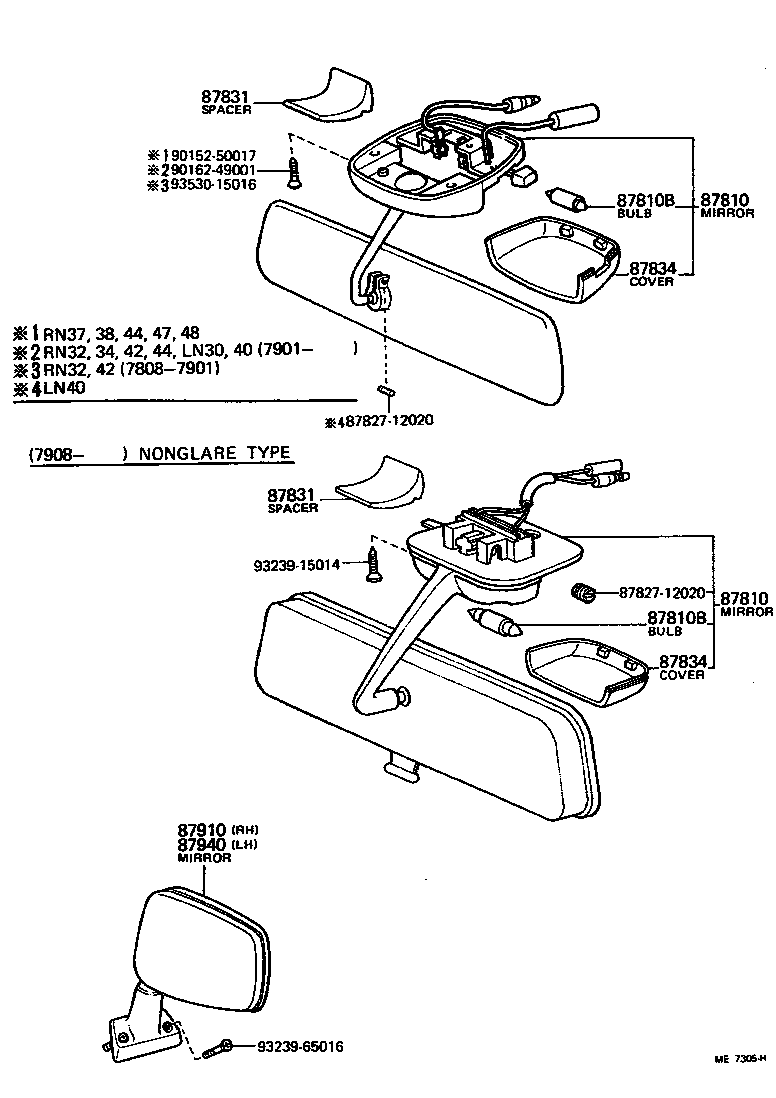

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-8910405 |
RN3#,4# BEIGE,BEIGE |
1 | ||
| 87810-8910403 |
RN3#,4# GRAY,GRAY |
1 | ||
| 87810-8910404 |
RN3#,4# BLUE,BLUE |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-8910405 |
RN3#,4# BEIGE,BEIGE |
1 | ||
| 87810-8910403 |
RN3#,4# GRAY,GRAY |
1 | ||
| 87810-8910404 |
RN3#,4# BLUE,BLUE |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 99132-13050 |
LN40,RN3#,4# 12V 5W,12V 5W |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 99132-13050 |
LN40,RN3#,4# 12V 5W,12V 5W |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87814-12020 |
LN40,RN3#,4# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87814-12020 |
LN40,RN3#,4# |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-89112 |
LN40,RN3#,4#..3QT,HLF |
1 | ||
| Common parts | ||||
| 87827-12020 | ||||
| 90152-50017 | ||||
| 90162-49001 | ||||
| 93239-15014 | ||||
| 93239-65016 | ||||
| 93530-15016 | ||||
