RN42L-HDA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

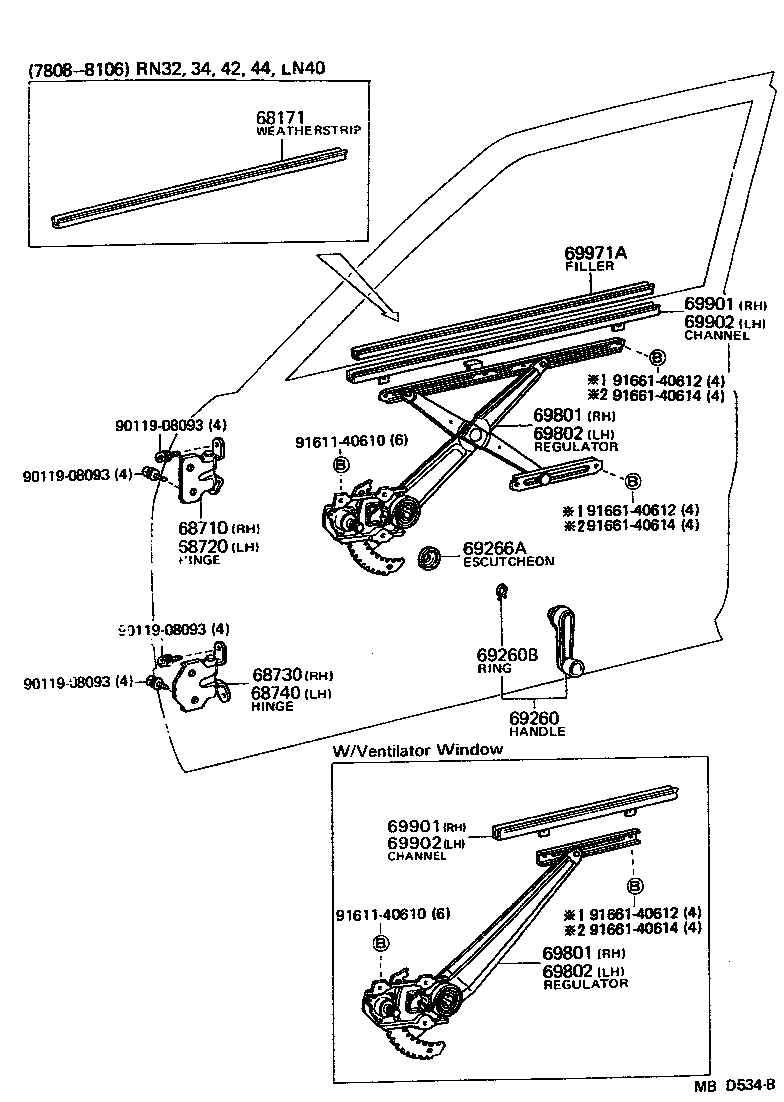

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69801 69802 69802 69901 69901 69902 69902 69971A 9011908093 9011908093 9011908093 9011908093 9161140610 9161140610 9166140612 9166140612 9166140612 9166140614 9166140614 9166140614
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-89102

LN40,RN32,34,42,44

W/O *VW

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14020

LN40,RN3#,4#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14020

LN40,RN3#,4#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14020

LN40,RN3#,4#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14020

LN40,RN3#,4#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004005

LN40,RN3#,4#

BEIGE,BEIGE

 2
69260-1004001

LN40,RN3#,4#

BLACK,BLACK

 2
69260-1004004

LN40,RN3#,4#

BLUE,BLUE

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LN40,RN3#,4#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69266-2201001

RN3#,42

BLACK,BLACK

 2
69266-2201004

RN3#,42

BLUE,BLUE

 2
69266-2201005

RN3#,42

BEIGE,BEIGE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-89105

LN40,RN3#,4#

W/O *VW

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-89105

LN40,RN3#,4#

W/O *VW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-89105

LN40,RN3#,4#

W/O *VW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-89105

LN40,RN3#,4#

W/O *VW

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-89105

LN40,RN3#,4#

W/O *VW

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-89105

LN40,RN3#,4#

W/O *VW

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-89105

LN40,RN3#,4#

W/O *VW

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-89105

LN40,RN3#,4#

W/O *VW

 1
Common parts
90119-08093
91611-40610
91661-40612
91661-40614
