RN42L-HDA3 (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )LN40,RN32,34,42,44

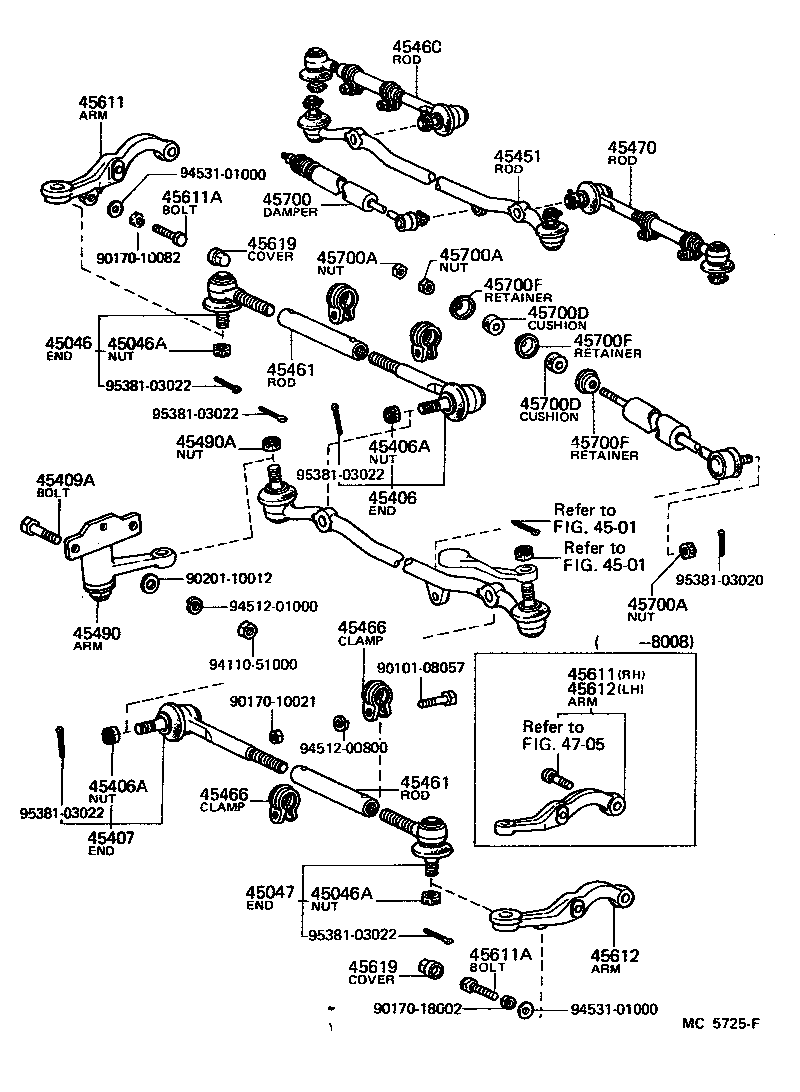

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39105 |
RN3#,42 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN40,RN3#,4# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN40,RN3#,4# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39105 |
RN32,42 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39085 |
RN32,42 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
LN40,RN32,34,42,44 |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
LN40,RN32,34,42,44 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39085 |
RN32,42 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90101-10053 |
LN40,RN32,34,42,44 |
3 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45450-39035 |
RN32,42 |
1 | ||
| 45450-39025 |
RN32,42 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39095 |
RN32,42 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35020 |
LN40,RN32,34,42,44 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35020 |
LN40,RN32,34,42,44 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN40,RN3#,4# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LN40,RN3#,4# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39095 |
RN32,42 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-35090 |
RN32,42 |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
LN40,RN32,34,42,44 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45601-35060 |
RN32,42 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45601-35060 |
RN32,42 |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
LN40,RN32,34,42,44 |
2 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
LN40,RN32,34,42,44 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45606-35040 |
RN32,42 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45606-35040 |
RN32,42 |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90170-10021 | ||||
| 90170-10082 | ||||
| 90170-18002 | ||||
| 90201-10012 | ||||
| 94110-51000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4705 | ||||
