RN42L-HDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7908)20R..RN32,42 ; (7901-7908)20R..RN37,47..USA

Click highlighted areas on diagram

diagram 1709 17303B 17650 17650 2103 2103 23262 23265 23269 23271 23272 23275 23281 23282 25715 9011908063 9041304005 9046106158 9046400082 9046400108 9161140610 9161140610 9161140816 9165140814 9165140814 9165140818 9451119930 9541110060 9541110130 9541110160 9541110330 9541110430 9541110430 9541110830 9541110830 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-38060

20R..RN32,42

 1
17303-38040

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
17303-38050

20R..RN32,42

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35070

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
89570-35060

20R..RN32,42

 1
89570-14080

20R..RN32,42..3FC..USA

AI,TP&EVAPO,CALIFORNIA SPEC

 1
89570-12130

20R..RN32,42..3FC

AI,EXCL/CALIFORNIA SPEC

 1
89570-35120

20R..RN32,42..3FC

EVAPO,EXCL/CALIFORNIA SPEC

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35070

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
89570-35060

20R..RN32,42

 1
89570-14080

20R..RN32,42..3FC..USA

AI,TP&EVAPO,CALIFORNIA SPEC

 1
89570-12130

20R..RN32,42..3FC

AI,EXCL/CALIFORNIA SPEC

 1
89570-35120

20R..RN32,42..3FC

EVAPO,EXCL/CALIFORNIA SPEC

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

20R..RN32,42

 1
25820-13010

20R..RN32,42

 1
23265 - FILTER, GAS, NO.1
90917-11023

20R..RN32,42

 1
90917-11024

20R..RN32,42

 1
23269 - UNION(FOR GAS FILTER)
90404-54010

20R..RN3#,4#..(3QT,HLF)..USA

 1
90404-54010

20R..RN3#,4#

 1
90404-54010

20R..RN32,42..3FC..USA

CALIFORNIA SPEC

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02057

20R..RN32,42

 1
90925-02060

20R..RN3#,4#

 1
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02056

20R..RN32,42

 1
90925-02049

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03069

20R..RN32,42

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01031

20R..RN32,42

 1
90925-01031

20R..RN32,42..3QT,HLF

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01021

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
90925-01021

20R..RN32,42..3FC

 1
90925-01032

20R..RN32,42

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-38050

20R..RN32,42

 1
Common parts
90119-08063
90413-04005
90461-06158
90464-00082
90464-00108
91611-40610
91611-40816
91651-40814
91651-40818
94511-19930
95411-10060
95411-10130
95411-10160
95411-10330
95411-10430
95411-10830
95411-19930
95411-19960
Linked diagrams
1709
2103

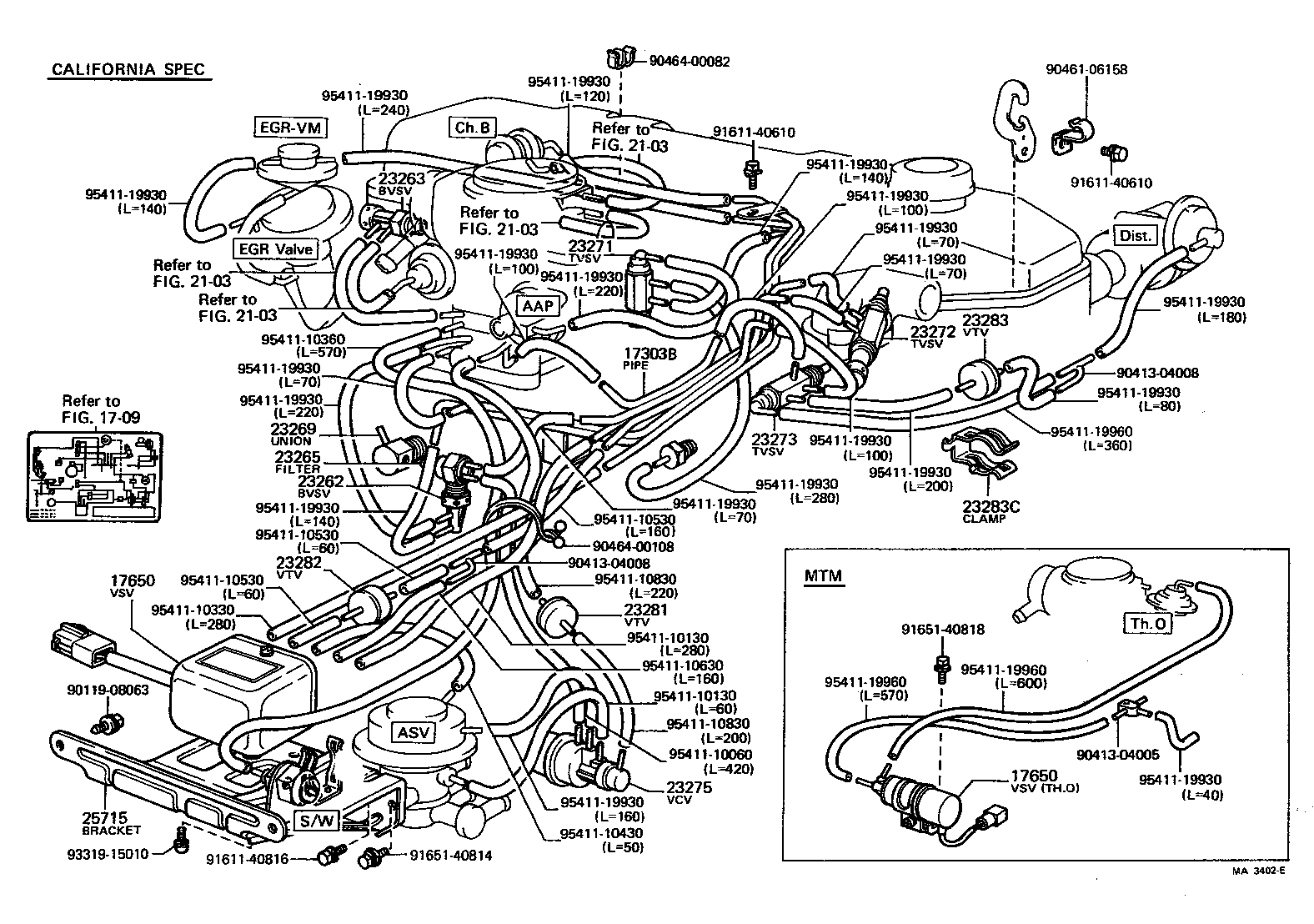

(7808-7908)20R..USA

Click highlighted areas on diagram

diagram 1709 17303B 17650 17650 2103 2103 2103 2103 23262 23263 23265 23269 23271 23272 23273 23275 23281 23282 23283 23283C 25715 9011908063 9041304005 9041304008 9041304008 9046106158 9046400082 9046400108 9161140610 9161140610 9161140816 9165140814 9165140818 9331915010 9541110060 9541110130 9541110130 9541110330 9541110360 9541110430 9541110530 9541110530 9541110530 9541110630 9541110830 9541110830 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-38060

20R..RN32,42

 1
17303-38040

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
17303-38050

20R..RN32,42

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35070

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
89570-35060

20R..RN32,42

 1
89570-14080

20R..RN32,42..3FC..USA

AI,TP&EVAPO,CALIFORNIA SPEC

 1
89570-12130

20R..RN32,42..3FC

AI,EXCL/CALIFORNIA SPEC

 1
89570-35120

20R..RN32,42..3FC

EVAPO,EXCL/CALIFORNIA SPEC

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35070

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
89570-35060

20R..RN32,42

 1
89570-14080

20R..RN32,42..3FC..USA

AI,TP&EVAPO,CALIFORNIA SPEC

 1
89570-12130

20R..RN32,42..3FC

AI,EXCL/CALIFORNIA SPEC

 1
89570-35120

20R..RN32,42..3FC

EVAPO,EXCL/CALIFORNIA SPEC

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

20R..RN32,42

 1
25820-13010

20R..RN32,42

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13010

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
23265 - FILTER, GAS, NO.1
90917-11023

20R..RN32,42

 1
90917-11024

20R..RN32,42

 1
23269 - UNION(FOR GAS FILTER)
90404-54010

20R..RN3#,4#..(3QT,HLF)..USA

 1
90404-54010

20R..RN3#,4#

 1
90404-54010

20R..RN32,42..3FC..USA

CALIFORNIA SPEC

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02057

20R..RN32,42

 1
90925-02060

20R..RN3#,4#

 1
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02056

20R..RN32,42

 1
90925-02049

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
23273 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.3
90925-02053

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03069

20R..RN32,42

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01031

20R..RN32,42

 1
90925-01031

20R..RN32,42..3QT,HLF

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01021

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
90925-01021

20R..RN32,42..3FC

 1
90925-01032

20R..RN32,42

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01027

20R..RN32,42..3FC..USA

CALIFORNIA SPEC

 1
23283C - CLAMP, VACUUM TRANSMITTING VALVE
90461-06140

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-38050

20R..RN32,42

 1
Common parts
90119-08063
90413-04005
90413-04008
90461-06158
90464-00082
90464-00108
91611-40610
91611-40816
91651-40814
91651-40818
93319-15010
95411-10060
95411-10130
95411-10330
95411-10360
95411-10430
95411-10530
95411-10630
95411-10830
95411-19930
95411-19960
Linked diagrams
1709
2103

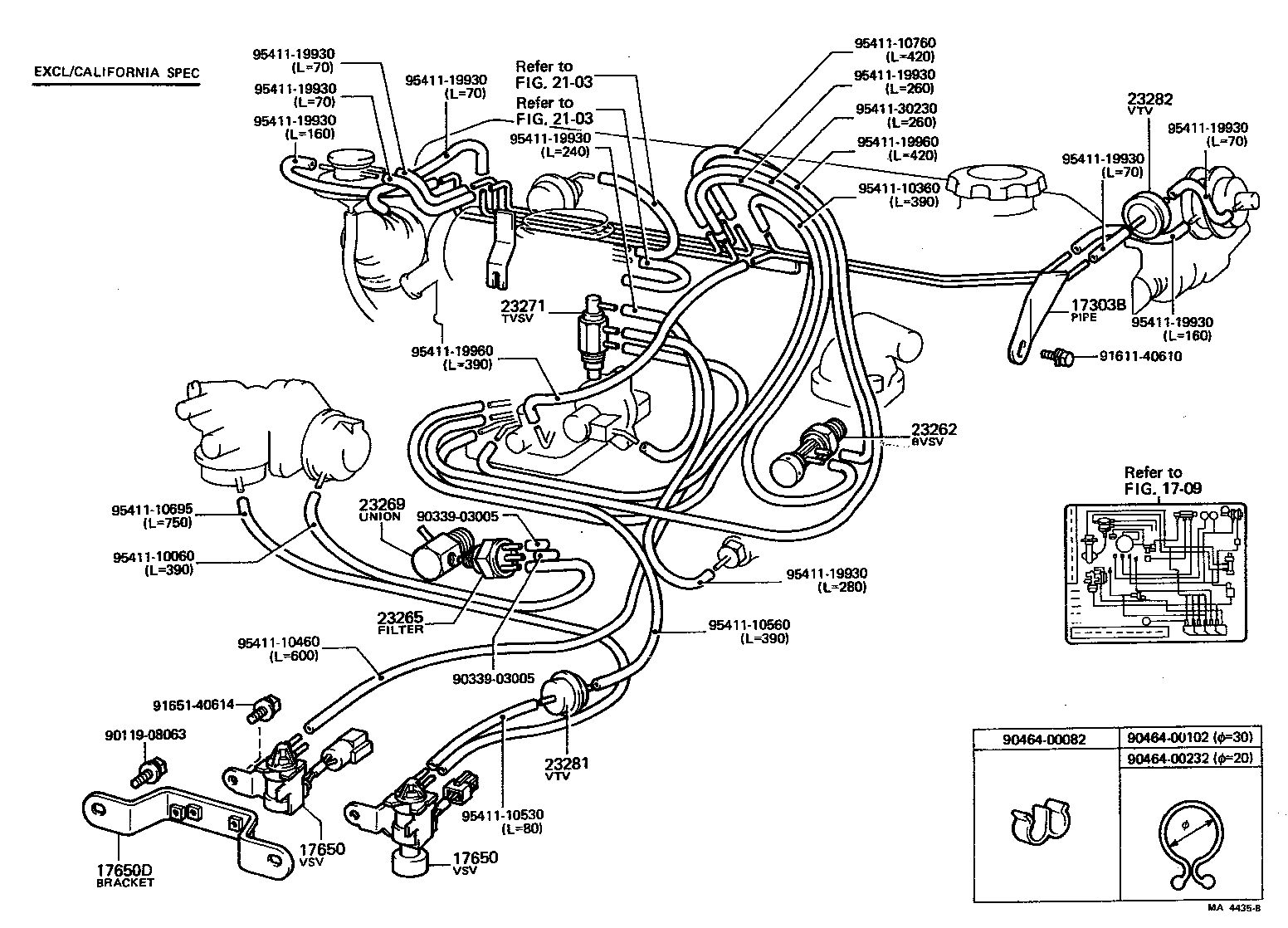

(7908-8008)20R..RN32,42..3FC

Click highlighted areas on diagram

diagram 1709 17303B 17650 17650 17650D 2103 2103 23262 23265 23269 23271 23281 23282 9011908063 9033903005 9033903005 9046400082 9046400102 9046400232 9161140610 9165140614 9541110060 9541110360 9541110460 9541110530 9541110560 9541110695 9541110760 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541130230
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-38060

20R..RN32,42

 1
17303-38040

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
17303-38050

20R..RN32,42

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35070

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
89570-35060

20R..RN32,42

 1
89570-14080

20R..RN32,42..3FC..USA

AI,TP&EVAPO,CALIFORNIA SPEC

 1
89570-12130

20R..RN32,42..3FC

AI,EXCL/CALIFORNIA SPEC

 1
89570-35120

20R..RN32,42..3FC

EVAPO,EXCL/CALIFORNIA SPEC

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35070

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
89570-35060

20R..RN32,42

 1
89570-14080

20R..RN32,42..3FC..USA

AI,TP&EVAPO,CALIFORNIA SPEC

 1
89570-12130

20R..RN32,42..3FC

AI,EXCL/CALIFORNIA SPEC

 1
89570-35120

20R..RN32,42..3FC

EVAPO,EXCL/CALIFORNIA SPEC

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35020

20R..RN32,42..3FC

CALIFORNIA SPEC

 1
89579-35030

20R..RN32,42..3FC

EXCL/CALIFORNIA SPEC

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

20R..RN32,42

 1
25820-13010

20R..RN32,42

 1
23265 - FILTER, GAS, NO.1
90917-11023

20R..RN32,42

 1
90917-11024

20R..RN32,42

 1
23269 - UNION(FOR GAS FILTER)
90404-54010

20R..RN3#,4#..(3QT,HLF)..USA

 1
90404-54010

20R..RN3#,4#

 1
90404-54010

20R..RN32,42..3FC..USA

CALIFORNIA SPEC

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02057

20R..RN32,42

 1
90925-02060

20R..RN3#,4#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01031

20R..RN32,42

 1
90925-01031

20R..RN32,42..3QT,HLF

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01021

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
90925-01021

20R..RN32,42..3FC

 1
90925-01032

20R..RN32,42

 1
Common parts
90119-08063
90339-03005
90464-00082
90464-00102
90464-00232
91611-40610
91651-40614
95411-10060
95411-10360
95411-10460
95411-10530
95411-10560
95411-10695
95411-10760
95411-19930
95411-19960
95411-30230
Linked diagrams
1709
2103

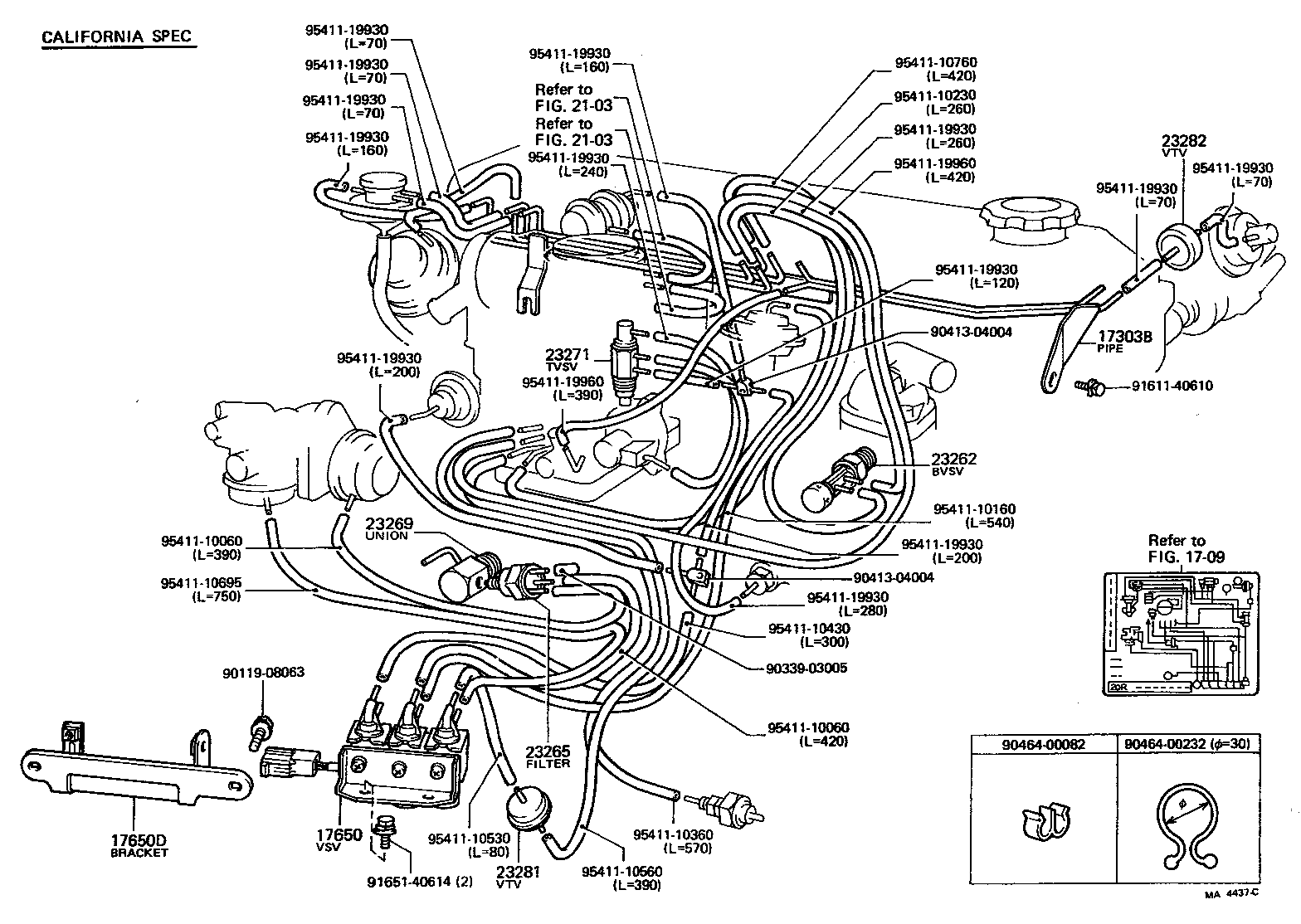

(7908-8008)20R..RN32,42..3FC

Click highlighted areas on diagram

diagram 1709 17303B 17650 17650D 2103 2103 23262 23265 23269 23271 23281 23282 9011908063 9033903005 9041304004 9041304004 9046400082 9046400232 9161140610 9165140614 9541110060 9541110060 9541110160 9541110230 9541110360 9541110430 9541110530 9541110560 9541110695 9541110760 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-38060

20R..RN32,42

 1
17303-38040

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
17303-38050

20R..RN32,42

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35070

20R..RN3#,4#..USA

CALIFORNIA SPEC

 1
89570-35060

20R..RN32,42

 1
89570-14080

20R..RN32,42..3FC..USA

AI,TP&EVAPO,CALIFORNIA SPEC

 1
89570-12130

20R..RN32,42..3FC

AI,EXCL/CALIFORNIA SPEC

 1
89570-35120

20R..RN32,42..3FC

EVAPO,EXCL/CALIFORNIA SPEC

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-35020

20R..RN32,42..3FC

CALIFORNIA SPEC

 1
89579-35030

20R..RN32,42..3FC

EXCL/CALIFORNIA SPEC

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05035

20R..RN32,42

 1
25820-13010

20R..RN32,42

 1
23265 - FILTER, GAS, NO.1
90917-11023

20R..RN32,42

 1
90917-11024

20R..RN32,42

 1
23269 - UNION(FOR GAS FILTER)
90404-54010

20R..RN3#,4#..(3QT,HLF)..USA

 1
90404-54010

20R..RN3#,4#

 1
90404-54010

20R..RN32,42..3FC..USA

CALIFORNIA SPEC

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02057

20R..RN32,42

 1
90925-02060

20R..RN3#,4#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01031

20R..RN32,42

 1
90925-01031

20R..RN32,42..3QT,HLF

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01021

20R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
90925-01021

20R..RN32,42..3FC

 1
90925-01032

20R..RN32,42

 1
Common parts
90119-08063
90339-03005
90413-04004
90464-00082
90464-00232
91611-40610
91651-40614
95411-10060
95411-10160
95411-10230
95411-10360
95411-10430
95411-10530
95411-10560
95411-10695
95411-10760
95411-19930
95411-19960
Linked diagrams
1709
2103

(7808- )20R,22R

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
