RN38L-MSA3 (1981)
Toyota Pickup
Production
Aug 1981
-
Jul 1983
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )RN3#,4#..SR5

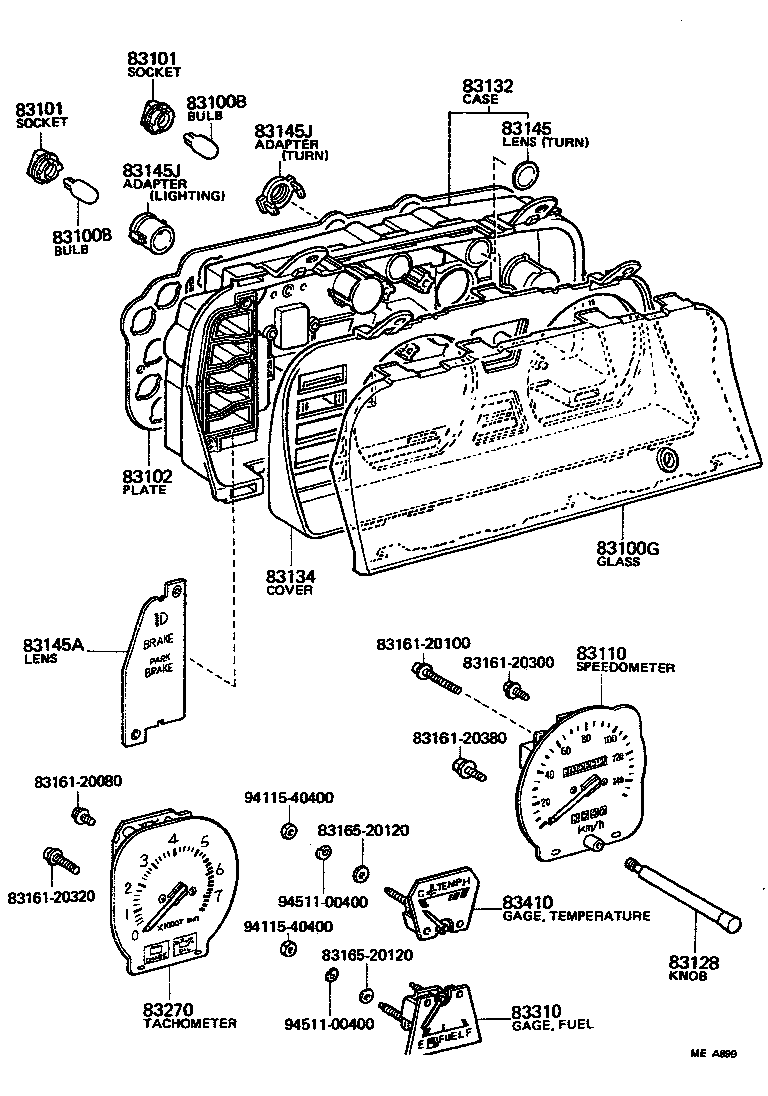

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN40,RN3#,4# 12V 3.4W,12V 3.4W |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN40,RN3#,4# 12V 3.4W,12V 3.4W |
13 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-89257 |
RN3#,4#..SR5 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN40,RN3#,4# BULB=3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN40,RN3#,4# BULB=3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-89142 |
RN3#,42 |
1 | ||
| 83247-89220 |
RN3#,4#..SR5 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89173 |
RN3#,4#..SR5..USA |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89130 |
LN40,RN3#,4#..SR5 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89257 |
RN3#,4#..SR5 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-89257 |
RN3#,4#..SR5 |
1 | ||
| 83134-89131 |
RN3#,42..DLX,SR5 W/CLOCK OR TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN40,RN3#,4# |
2 | ||
| 83145-89246 |
RN3#,4#..SR5 |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95F22 |
RN38,48..SR5 |
1 | ||
| 83145-95F25 |
RN38,48..SR5 |
1 | ||
| 83145-89113 |
RN3#,42 |
1 | ||
| 83145J - ADAPTER, METER BULB SOCKET | ||||
| 83145-16020 |
LN40,RN3#,4# LIGHTING |
4 | ||
| 83145-89244 |
RN3#,4#..SR5 TURN |
2 | ||
| 83145J - ADAPTER, METER BULB SOCKET | ||||
| 83145-16020 |
LN40,RN3#,4# LIGHTING |
4 | ||
| 83145-89244 |
RN3#,4#..SR5 TURN |
2 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-89177 |
RN3#,4#..SR5 |
1 | ||
| 83270-89170 |
RN3#,4#..SR5 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-89130 |
LN40,RN3#,4# |
1 | ||
| 83243-89212 |
RN3#,4#..SR5 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-89130 |
RN3#,42 |
1 | ||
| 83244-89213 |
RN3#,4#..SR5 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20300 | ||||
| 83161-20320 | ||||
| 83161-20380 | ||||
| 83165-20120 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
