RN38L-MDA (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8208)20R,22R

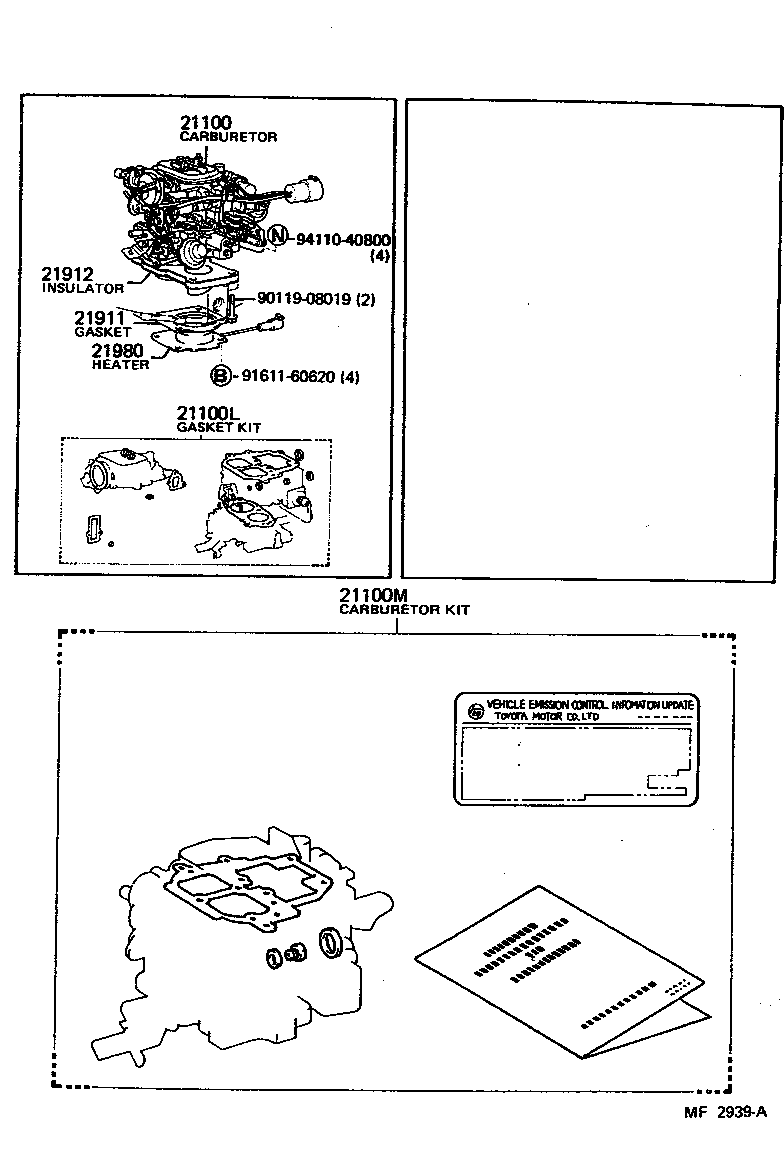

Click highlighted areas on diagram

diagram 1701 21100 21100 21100K 21100K 21100L 21100L 21100M 21673 21673 21673 21912 21912 9411040800 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-35100

22R..RN38,48..USA

HIGH ALTITUDE SPEC

 1
21100-35060

22R..RN38,48..USA

CALIFORNIA SPEC

 1
21100-35090

22R..RN38,48..USA

 1
21100-35170

22R..RN38,48..USA

 1
21100-35210

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100-35240

22R..RN38,48..USA

 1
21100-35071

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100-35171

22R..RN38,48..USA

 1
21100-35070

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100 - CARBURETOR ASSY
21100-35100

22R..RN38,48..USA

HIGH ALTITUDE SPEC

 1
21100-35060

22R..RN38,48..USA

CALIFORNIA SPEC

 1
21100-35090

22R..RN38,48..USA

 1
21100-35170

22R..RN38,48..USA

 1
21100-35210

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100-35240

22R..RN38,48..USA

 1
21100-35071

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100-35171

22R..RN38,48..USA

 1
21100-35070

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100K - CARBURETOR KIT
04211-35010

22R..RN38,48..USA

 1
21100K - CARBURETOR KIT
04211-35010

22R..RN38,48..USA

 1
21100L - GASKET KIT, CARBURETOR
04212-37041

22R..RN3#,4#

 1
04212-35010

22R..RN38,48..USA

 1
21100L - GASKET KIT, CARBURETOR
04212-37041

22R..RN3#,4#

 1
04212-35010

22R..RN38,48..USA

 1
21100M - CARBURETOR KIT, HIGH ALTITUDE, PERFORMANCE, MODIFICATIO
04214-35050

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
04214-35030

22R..RN38,48..USA

 1
21673 - CAP, IDLE LIMIT
21673-38020

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21673 - CAP, IDLE LIMIT
21673-38020

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21673 - CAP, IDLE LIMIT
21673-38020

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-37020

22R..RN3#,4#

 1
21912-35030

22R..RN3#,4#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-37020

22R..RN3#,4#

 1
21912-35030

22R..RN3#,4#

 1
Common parts
94110-40800
Linked diagrams
1701

(8208- )22R

Click highlighted areas on diagram

diagram 21100 21100L 21100M 21911 21912 21980 9011908019 9161160620 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-35100

22R..RN38,48..USA

HIGH ALTITUDE SPEC

 1
21100-35060

22R..RN38,48..USA

CALIFORNIA SPEC

 1
21100-35090

22R..RN38,48..USA

 1
21100-35170

22R..RN38,48..USA

 1
21100-35210

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100-35240

22R..RN38,48..USA

 1
21100-35071

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100-35171

22R..RN38,48..USA

 1
21100-35070

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21100L - GASKET KIT, CARBURETOR
04212-37041

22R..RN3#,4#

 1
04212-35010

22R..RN38,48..USA

 1
21100M - CARBURETOR KIT, HIGH ALTITUDE, PERFORMANCE, MODIFICATIO
04214-35050

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
04214-35030

22R..RN38,48..USA

 1
21911 - GASKET, CARBURETOR
21995-35010

22R..RN3#,4#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-37020

22R..RN3#,4#

 1
21912-35030

22R..RN3#,4#

 1
21980 - HEATER ASSY, COLD MIXTURE
21980-35010

22R..RN3#,4#

DENSO

 1
21980-35020

22R..RN3#,4#

TDK

 1
Common parts
90119-08019
91611-60620
94110-40800
