RN38L-MDA (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8101- )L

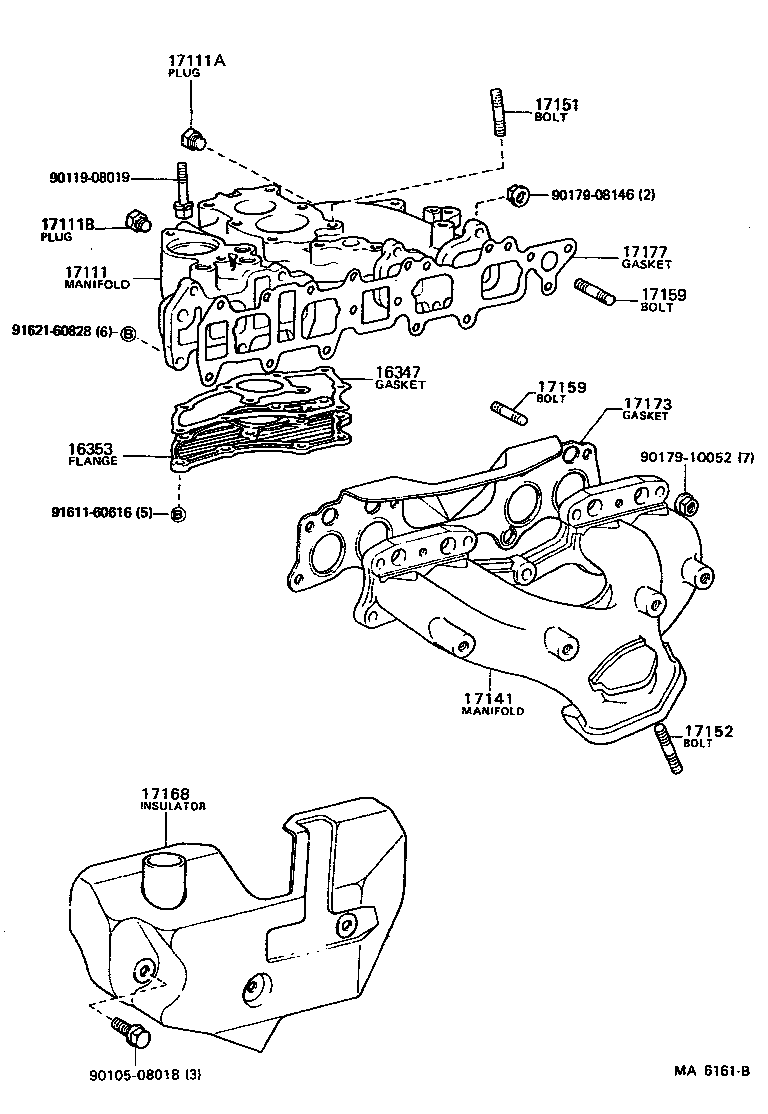

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17173 17177 9011910237 9017008184 9017010199 9017908040 9020110283 9161160822 9162140812 9162160825 9461110800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-35012

22R..RN3#,4#

 1
17111-35010

22R..RN3#,4#

 1
17111-35030

22R..RN3#,4#

 1
17141 - MANIFOLD, EXHAUST
17141-35020

22R..RN38,48..USA

 1
17141-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17141-35050

22R..RN38,48..USA

 1
17141-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

20R,22R..RN3#,4#

L=39,S=15&15

 3
90116-10087

22R..RN3#,4#

L=46.5,S=14&20

 3
90116-10058

22R..RN3#,4#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35011

22R..RN38,48..USA

 1
17167-35010

22R..RN38,48..USA

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35050

22R..RN38,48..USA

 1
17168-35020

22R..RN38,48..USA

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020

22R..RN3#,4#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35010

22R..RN3#,4#

 1
17177-35011

22R..RN3#,4#

 1
17177-35021

22R..RN3#,4#

 1
17177-35020

22R..RN3#,4#

 1
Common parts
90119-10237
90170-08184
90170-10199
90179-08040
90201-10283
91611-60822
91621-40812
91621-60825
94611-10800

(8008-8208)22R..RN38,48..USA ; (8008-8208)22R..RN34,44..3QT,HLF

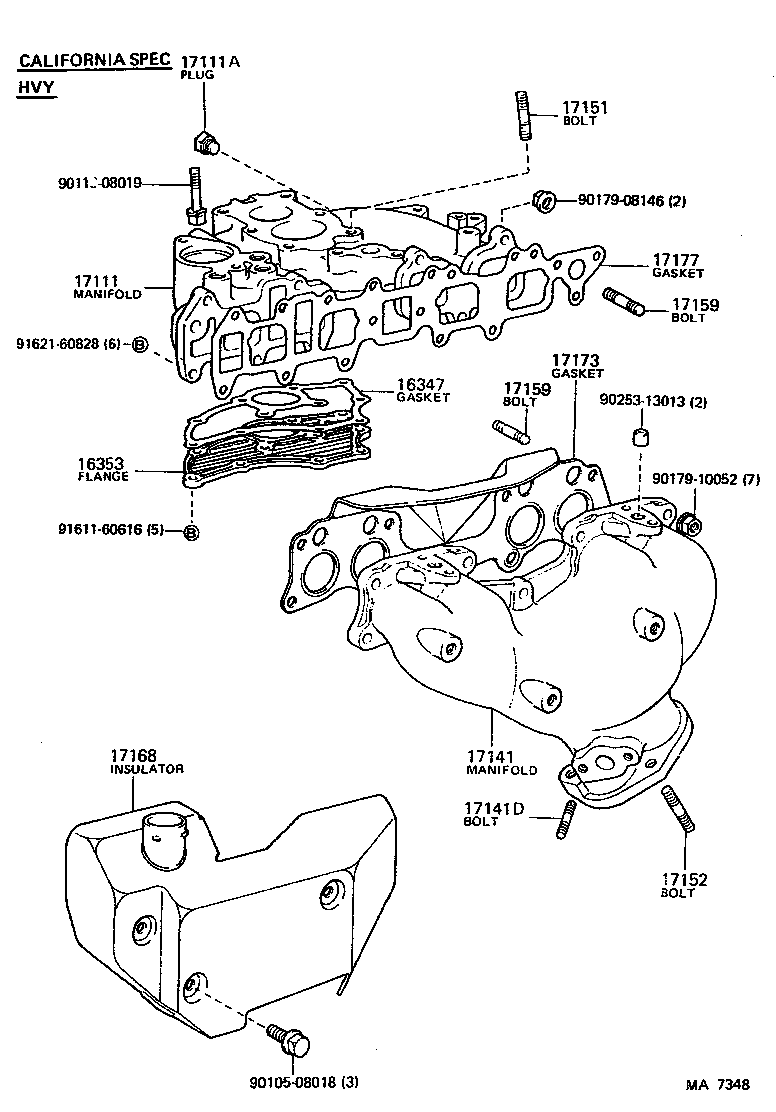

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17111C 17141 17151 17152 17159 17159 17167 17168 17168A 17177 17187 17188 9011908019 9017010199 9017906026 9017910052 9161160616 9165160828 9411050800
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

22R..RN3#,4#

 1
16347-35020

22R..RN3#,4#

 1
16353 - FLANGE, WATER BY-PASS
16353-35010

22R..RN3#,4#

 1
16353-35020

22R..RN3#,4#

 1
17111 - MANIFOLD, INTAKE
17111-35012

22R..RN3#,4#

 1
17111-35010

22R..RN3#,4#

 1
17111-35030

22R..RN3#,4#

 1
17111A - PLUG, NO.1
90345-51025

22R..RN3#,4#

 1
17111B - PLUG, NO.2
90345-53007

22R..RN3#,4#..3QT,HLF

 3
17111C - PLUG, NO.3
90340-16002

22R..RN3#,4#..MTM..(3QT,HLF)

 1
90340-16002

22R..RN38,48..USA

 1
17141 - MANIFOLD, EXHAUST
17141-35020

22R..RN38,48..USA

 1
17141-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17141-35050

22R..RN38,48..USA

 1
17141-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

20R,22R..RN3#,4#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

20R,22R..RN3#,4#

L=39,S=15&15

 3
90116-10087

22R..RN3#,4#

L=46.5,S=14&20

 3
90116-10058

22R..RN3#,4#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35011

22R..RN38,48..USA

 1
17167-35010

22R..RN38,48..USA

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35050

22R..RN38,48..USA

 1
17168-35020

22R..RN38,48..USA

 1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-11001

20R,22R..RN3#,4#

OD=11.5

 2
90480-12001

20R,22R..RN3#,4#

OD=12.5

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35010

22R..RN3#,4#

 1
17177-35011

22R..RN3#,4#

 1
17177-35021

22R..RN3#,4#

 1
17177-35020

22R..RN3#,4#

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020

20R,22R..RN3#,4#

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010

20R,22R..RN3#,4#

 1
Common parts
90119-08019
90170-10199
90179-06026
90179-10052
91611-60616
91651-60828
94110-50800

(8008-8208)22R

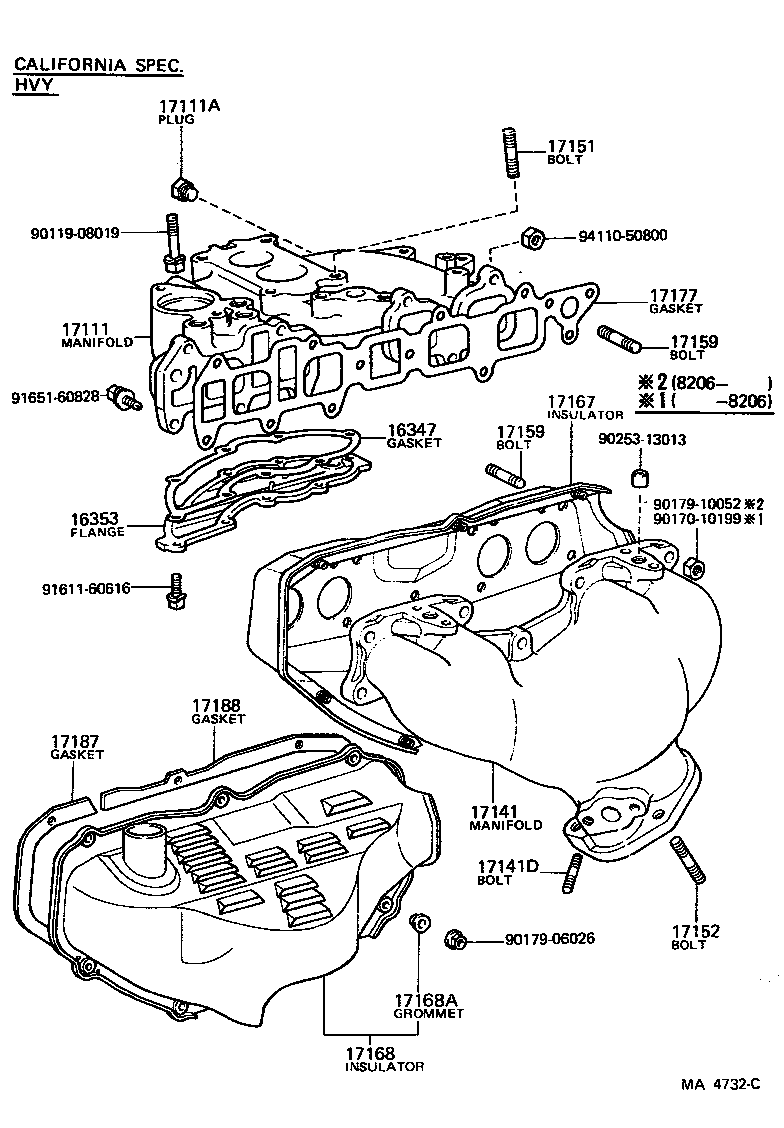

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17141 17141D 17151 17152 17159 17159 17167 17168 17168A 17177 17187 17188 9011908019 9017010199 9017906026 9017910052 9025313013 9161160616 9165160828 9411050800
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

22R..RN3#,4#

 1
16347-35020

22R..RN3#,4#

 1
16353 - FLANGE, WATER BY-PASS
16353-35010

22R..RN3#,4#

 1
16353-35020

22R..RN3#,4#

 1
17111 - MANIFOLD, INTAKE
17111-35012

22R..RN3#,4#

 1
17111-35010

22R..RN3#,4#

 1
17111-35030

22R..RN3#,4#

 1
17111A - PLUG, NO.1
90345-51025

22R..RN3#,4#

 1
17141 - MANIFOLD, EXHAUST
17141-35020

22R..RN38,48..USA

 1
17141-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17141-35050

22R..RN38,48..USA

 1
17141-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

22R..RN3#,4#..USA

CALIFORNIA SPEC

 2
90116-08128

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

20R,22R..RN3#,4#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

20R,22R..RN3#,4#

L=39,S=15&15

 3
90116-10087

22R..RN3#,4#

L=46.5,S=14&20

 3
90116-10058

22R..RN3#,4#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35011

22R..RN38,48..USA

 1
17167-35010

22R..RN38,48..USA

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35050

22R..RN38,48..USA

 1
17168-35020

22R..RN38,48..USA

 1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-11001

20R,22R..RN3#,4#

OD=11.5

 2
90480-12001

20R,22R..RN3#,4#

OD=12.5

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35010

22R..RN3#,4#

 1
17177-35011

22R..RN3#,4#

 1
17177-35021

22R..RN3#,4#

 1
17177-35020

22R..RN3#,4#

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020

20R,22R..RN3#,4#

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010

20R,22R..RN3#,4#

 1
Common parts
90119-08019
90170-10199
90179-06026
90179-10052
90253-13013
91611-60616
91651-60828
94110-50800

(8208- )22R..RN38,48..USA ; (8208- )22R..RN34,44..3QT,HLF

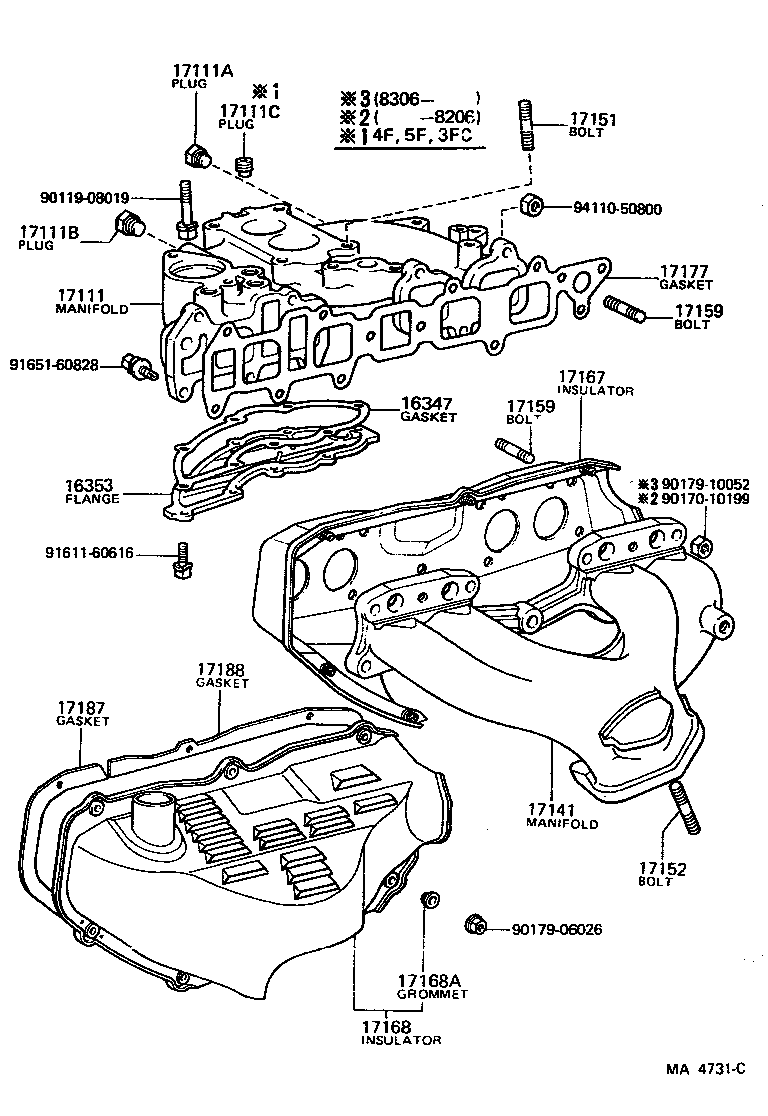

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17141 17151 17152 17159 17159 17168 17173 17177 9010508018 9011908019 9017908146 9017910052 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

22R..RN3#,4#

 1
16347-35020

22R..RN3#,4#

 1
16353 - FLANGE, WATER BY-PASS
16353-35010

22R..RN3#,4#

 1
16353-35020

22R..RN3#,4#

 1
17111 - MANIFOLD, INTAKE
17111-35012

22R..RN3#,4#

 1
17111-35010

22R..RN3#,4#

 1
17111-35030

22R..RN3#,4#

 1
17111A - PLUG, NO.1
90345-51025

22R..RN3#,4#

 1
17111B - PLUG, NO.2
90345-53007

22R..RN3#,4#..3QT,HLF

 3
17141 - MANIFOLD, EXHAUST
17141-35020

22R..RN38,48..USA

 1
17141-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17141-35050

22R..RN38,48..USA

 1
17141-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

20R,22R..RN3#,4#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

20R,22R..RN3#,4#

L=39,S=15&15

 3
90116-10087

22R..RN3#,4#

L=46.5,S=14&20

 3
90116-10058

22R..RN3#,4#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35050

22R..RN38,48..USA

 1
17168-35020

22R..RN38,48..USA

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020

22R..RN3#,4#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35010

22R..RN3#,4#

 1
17177-35011

22R..RN3#,4#

 1
17177-35021

22R..RN3#,4#

 1
17177-35020

22R..RN3#,4#

 1
Common parts
90105-08018
90119-08019
90179-08146
90179-10052
91611-60616
91621-60828

(8208- )22R

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17141 17141D 17151 17152 17159 17159 17168 17173 17177 9010508018 9011908019 9017908146 9017910052 9025313013 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

22R..RN3#,4#

 1
16347-35020

22R..RN3#,4#

 1
16353 - FLANGE, WATER BY-PASS
16353-35010

22R..RN3#,4#

 1
16353-35020

22R..RN3#,4#

 1
17111 - MANIFOLD, INTAKE
17111-35012

22R..RN3#,4#

 1
17111-35010

22R..RN3#,4#

 1
17111-35030

22R..RN3#,4#

 1
17111A - PLUG, NO.1
90345-51025

22R..RN3#,4#

 1
17141 - MANIFOLD, EXHAUST
17141-35020

22R..RN38,48..USA

 1
17141-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17141-35050

22R..RN38,48..USA

 1
17141-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

22R..RN3#,4#..USA

CALIFORNIA SPEC

 2
90116-08128

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

20R,22R..RN3#,4#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

20R,22R..RN3#,4#

L=39,S=15&15

 3
90116-10087

22R..RN3#,4#

L=46.5,S=14&20

 3
90116-10058

22R..RN3#,4#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10050

22R..RN3#,4#

 4
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10011

22R..RN3#,4#

L=42,S=12&25

 4
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17167-35050

22R..RN38,48..USA

 1
17168-35020

22R..RN38,48..USA

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020

22R..RN3#,4#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35010

22R..RN3#,4#

 1
17177-35011

22R..RN3#,4#

 1
17177-35021

22R..RN3#,4#

 1
17177-35020

22R..RN3#,4#

 1
Common parts
90105-08018
90119-08019
90179-08146
90179-10052
90253-13013
91611-60616
91621-60828
