RN38L-MDA (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8101- )L

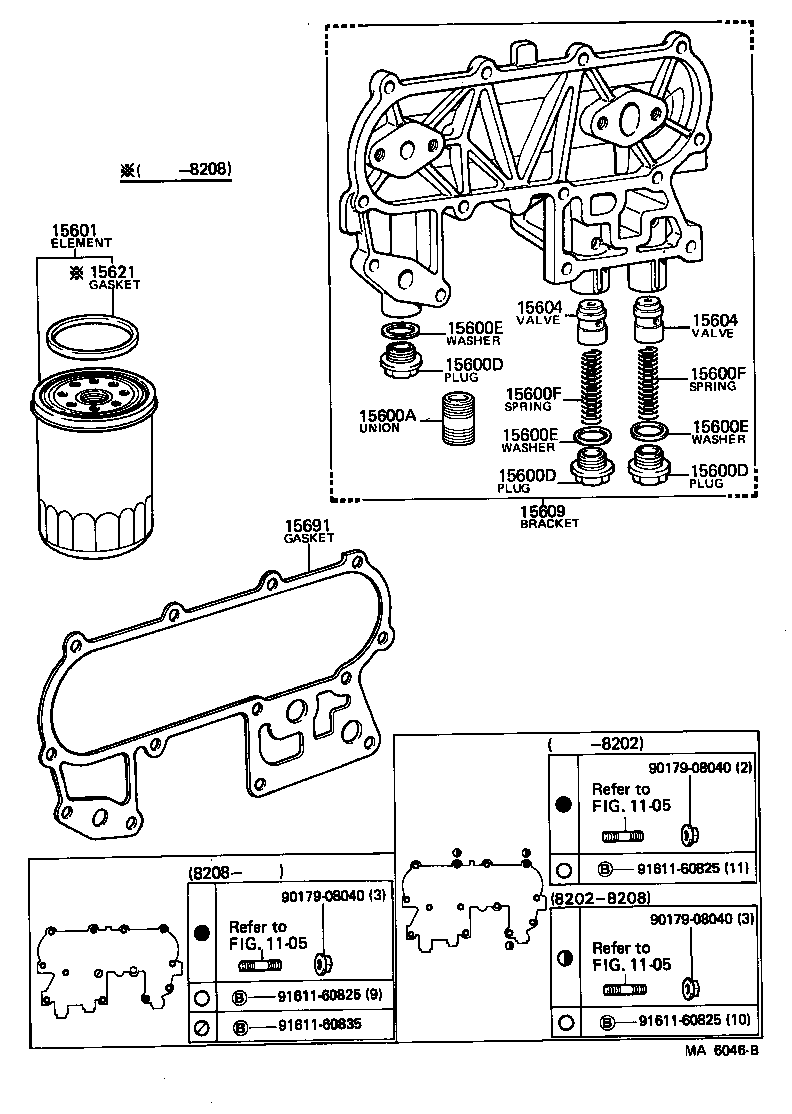

Click highlighted areas on diagram

diagram 1105 1105 1105 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15621 15691 9017908040 9017908040 9017908040 9161160825 9161160825 9161160825 9161160835
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-20173

20R,22R..RN3#,4#

 1
15601 - FILTER SUB-ASSY, OIL
15601-44011

20R,22R..RN3#,4#

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

20R,22R..RN3#,4#

 1
Common parts
90179-08040
91611-60825
91611-60835
Linked diagrams
1105
