RN38L-KDK (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8101-8108)SR5 ; (8101-8108)RN38,48 ; (8108-)SR5

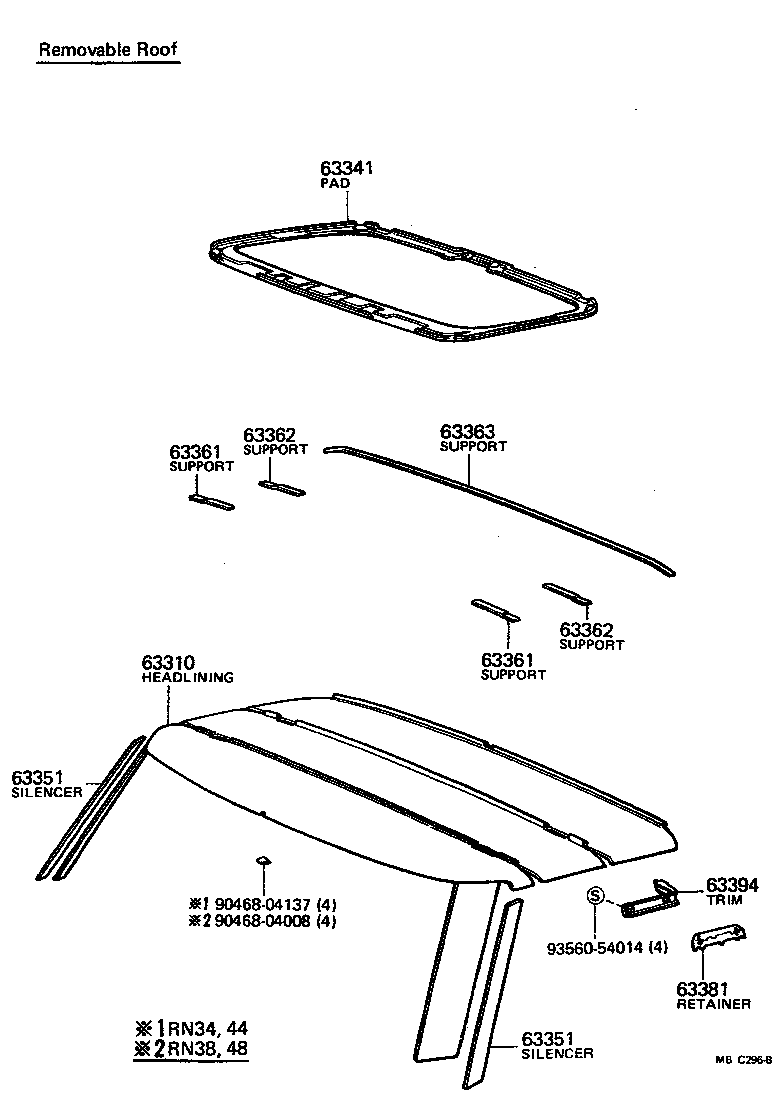

Click highlighted areas on diagram

diagram 63310 63341 63351 63351 63361 63361 63362 63362 63363 63381 63394 9046804008 9046804137 9356054014
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-8910405

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF,LIGHT BEIGE,BEIGE

 1
63311-8910203

LN40,RN3#,4#

GRAY,GRAY

 1
63311-8910403

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF,GRAY,GRAY

 1
63311-8910205

LN40,RN3#,4#

LIGHT BEIGE,BEIGE

 1
63311-8910404

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF,LIGHT BLUE,BLUE

 1
63311-8910204

LN40,RN3#,4#

LIGHT BLUE,BLUE

 1
63341 - PAD, ROOF SILENCER, NO.1
63351-89102

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-89101

LN40,RN3#,4#

L=1230,YELLOW

 1
63361-89108

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF,L=145

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-89101

LN40,RN3#,4#

L=1230,YELLOW

 1
63361-89108

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF,L=145

 2
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-89101

LN40,RN3#,4#

L=1230,YELLOW

 1
63361-89108

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF,L=145

 2
63362 - SUPPORT, ROOF HEADLINING, NO.2
63361-89101

LN40,RN3#,4#

L=1230,YELLOW

 1
63361-89108

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF,L=145

 2
63363 - SUPPORT, ROOF HEADLINING, NO.3
63361-89102

LN40,RN3#,4#

L=1225,RED

 1
63361-89105

RN38,48;RN34,44..SR5

W/REMOVABLE ROOF,L=1215,WHITE

 1
63394 - TRIM, ROOF HEADLINING
63393-8910205

LN40,RN3#,4#

RH,LIGHT BEIGE,BEIGE

 1
63393-8910204

LN40,RN3#,4#

RH,LIGHT BLUE,BLUE

 1
63394-8910204

LN40,RN3#,4#

LH,LIGHT BLUE,BLUE

 1
63393-8910203

LN40,RN3#,4#

RH,GRAY,GRAY

 1
63394-8910203

LN40,RN3#,4#

LH,GRAY,GRAY

 1
63394-8910205

LN40,RN3#,4#

LH,LIGHT BEIGE,BEIGE

 1
Common parts
90468-04008
90468-04137
93560-54014
