RN37L-KDA3 (1979)
Toyota Pickup

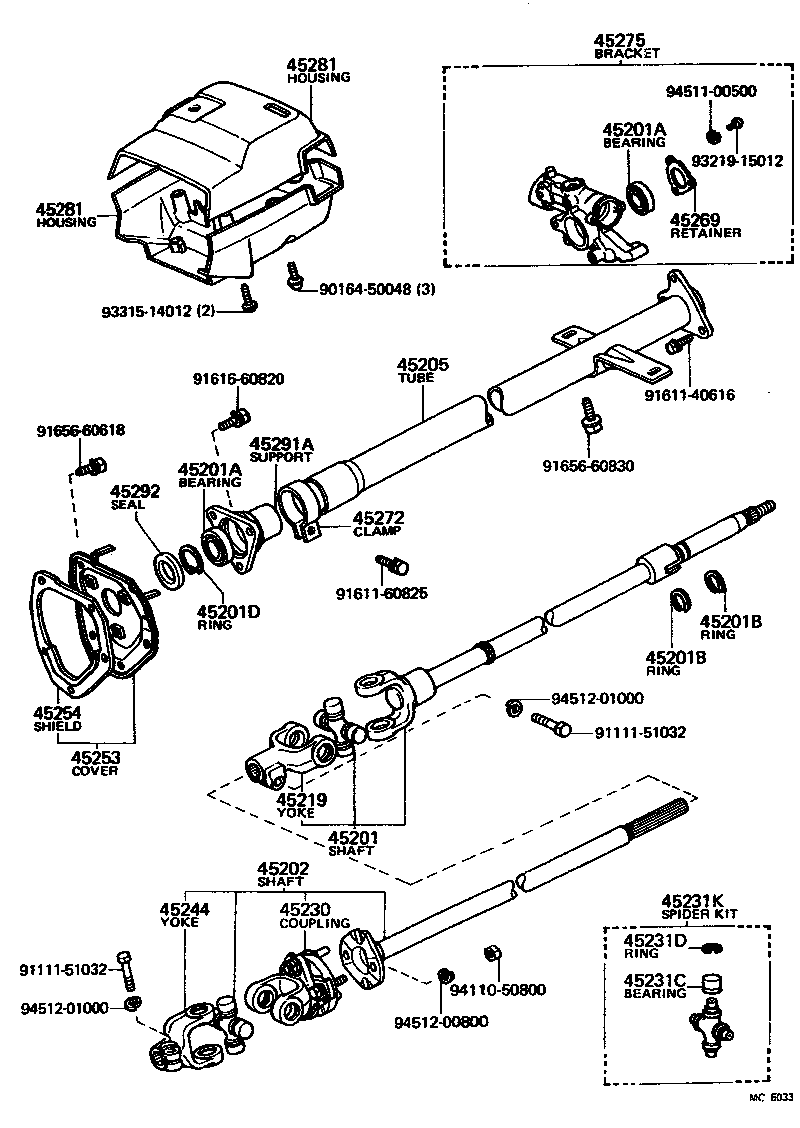

(7901-7908)RN37,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35020 |
RN37 W/STEERING LOCK |
1 | ||
| 45210-22050 |
RN37 W/TILT STEERING |
1 | ||
| 45210-35030 |
RN37 W/O STEERING LOCK |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
RN37 |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35030 |
RN37 W/POWER STEERING |
1 | ||
| 45220-35060 |
RN37 W/POWER STEERING |
1 | ||
| 45220-35010 |
RN37 |
1 | ||
| 45220-35050 |
RN37 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35080 |
RN37 |
1 | ||
| 45205-35090 |
RN37 W/TILT STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35030 |
RN37 |
1 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-36010 |
RN37 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35010 |
RN37 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-89102 |
RN3#,42 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LN40,RN3#,4# |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
RN37 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-35070 |
LN40,RN3#,4# W/O STEERING LOCK |
1 | ||
| 45307-35060 |
LN40,RN3#,4# W/STEERING LOCK |
1 | ||
| 45280-22200 |
RN37 W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3514004 |
RN37 UPR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3514001 |
RN37 UPR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45287-3508004 |
RN37 LWR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45286-3514005 |
RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45287-3508001 |
RN37 LWR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45287-3508005 |
RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3514004 |
RN37 UPR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3514001 |
RN37 UPR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45287-3508004 |
RN37 LWR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45286-3514005 |
RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45287-3508001 |
RN37 LWR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45287-3508005 |
RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
RN37 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
RN37 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 91111-51032 | ||||
| 91611-40616 | ||||
| 91611-60825 | ||||
| 91616-60820 | ||||
| 91656-60618 | ||||
| 91656-60830 | ||||
| 93219-15012 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||

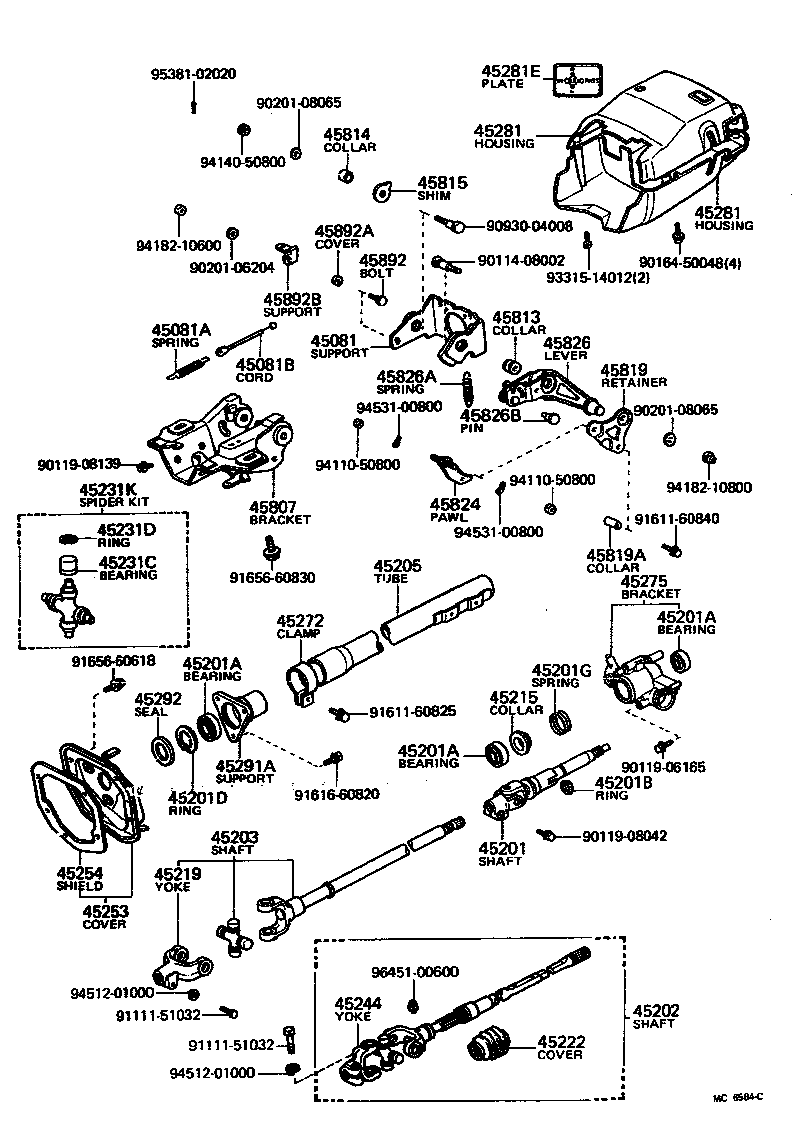

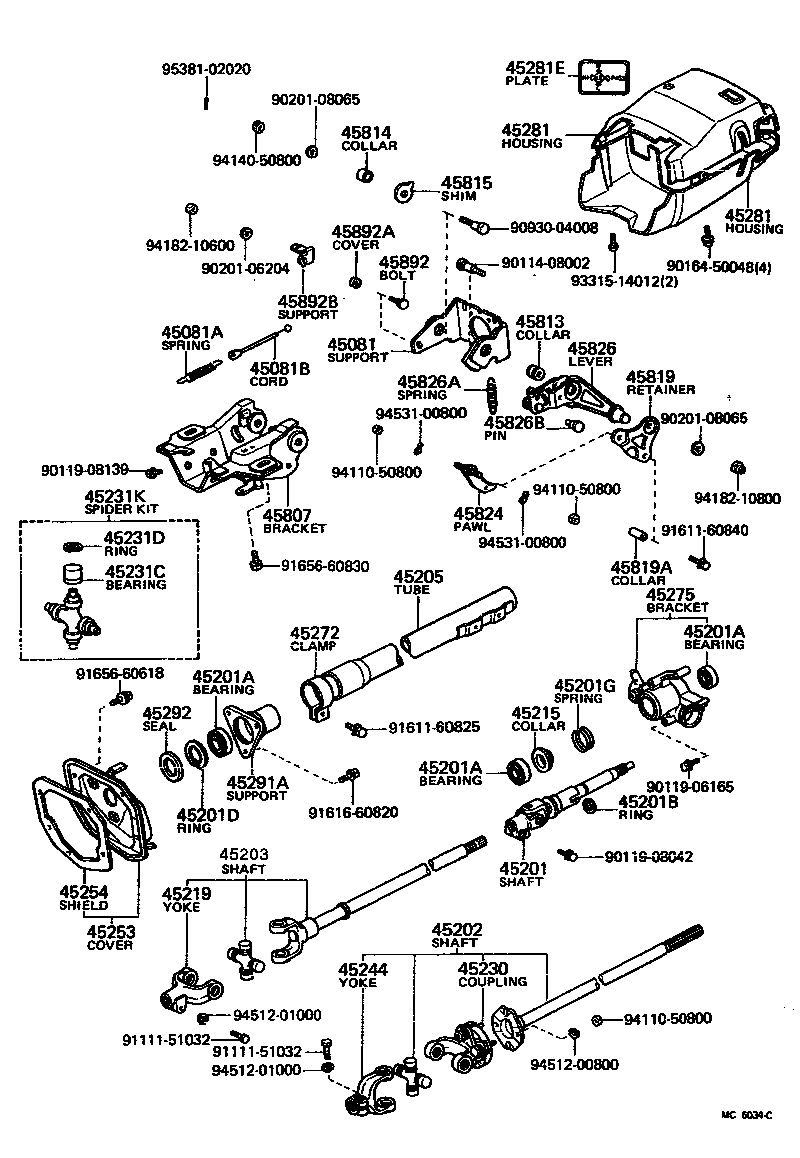

(7901-7908)RN37,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22010 |
RN37 |
1 | ||
| 45081-22010 |
RN37;RN32,42..SR5 |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
RN37 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
RN37 L=107.5 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35020 |
RN37 W/STEERING LOCK |
1 | ||
| 45210-22050 |
RN37 W/TILT STEERING |
1 | ||
| 45210-35030 |
RN37 W/O STEERING LOCK |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
RN37 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
RN37 W/TILT STEERING |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35030 |
RN37 W/POWER STEERING |
1 | ||
| 45220-35060 |
RN37 W/POWER STEERING |
1 | ||
| 45220-35010 |
RN37 |
1 | ||
| 45220-35050 |
RN37 |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35010 |
RN37 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35080 |
RN37 |
1 | ||
| 45205-35090 |
RN37 W/TILT STEERING |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
RN37 W/TILT STEERING |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35030 |
RN37 |
1 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-36010 |
RN37 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35010 |
RN37 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-89102 |
RN3#,42 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
RN37 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-35070 |
LN40,RN3#,4# W/O STEERING LOCK |
1 | ||
| 45307-35060 |
LN40,RN3#,4# W/STEERING LOCK |
1 | ||
| 45280-22200 |
RN37 W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3514004 |
RN37 UPR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3514001 |
RN37 UPR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45287-3508004 |
RN37 LWR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45286-3514005 |
RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45287-3508001 |
RN37 LWR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45287-3508005 |
RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3514004 |
RN37 UPR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3514001 |
RN37 UPR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45287-3508004 |
RN37 LWR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45286-3514005 |
RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45287-3508001 |
RN37 LWR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45287-3508005 |
RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
RN37 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
RN37 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-35010 |
RN37 W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
RN37 OD=17.996-18.003,D=17.996-18.003 |
1 | ||
| 45813-22040 |
RN37 OD=18.017-18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
RN37 OD=18.010-18.017,D=18.010-18.017 |
1 | ||
| 45813-22020 |
RN37 OD=18.003-18.010,D=18.003-18.010 |
1 | ||
| 45813-22050 |
RN37 OD=17.989-17.996,D=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
RN37 OD=17.982-18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
RN37 OD=18.000-18.018,D=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22030 |
RN37 T=0.8 |
2 | ||
| 45815-22010 |
RN37 T=0.2 |
2 | ||
| 45815-22050 |
RN37 T=1.8 |
2 | ||
| 45815-22040 |
RN37 T=1.4 |
2 | ||
| 45815-22020 |
RN37;RN32,42..SR5 T=0.5 |
2 | ||
| 45815-22010 |
RN37;RN32,42..SR5 T=0.2 |
2 | ||
| 45815-22050 |
RN37;RN32,42..SR5 T=1.8 |
2 | ||
| 45815-22040 |
RN37;RN32,42..SR5 T=1.4 |
2 | ||
| 45815-22030 |
RN37;RN32,42..SR5 T=0.8 |
2 | ||
| 45815-22020 |
RN37 T=0.5 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
RN37 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
RN37 |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
RN37 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
RN37 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
RN37 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
RN37 |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
RN37 |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
RN37 |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22010 |
RN37 |
1 | ||
| Common parts | ||||
| 90114-08002 | ||||
| 90119-06165 | ||||
| 90119-08042 | ||||
| 90119-08139 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90930-04008 | ||||
| 91111-51032 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91616-60820 | ||||
| 91656-60618 | ||||
| 91656-60830 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||

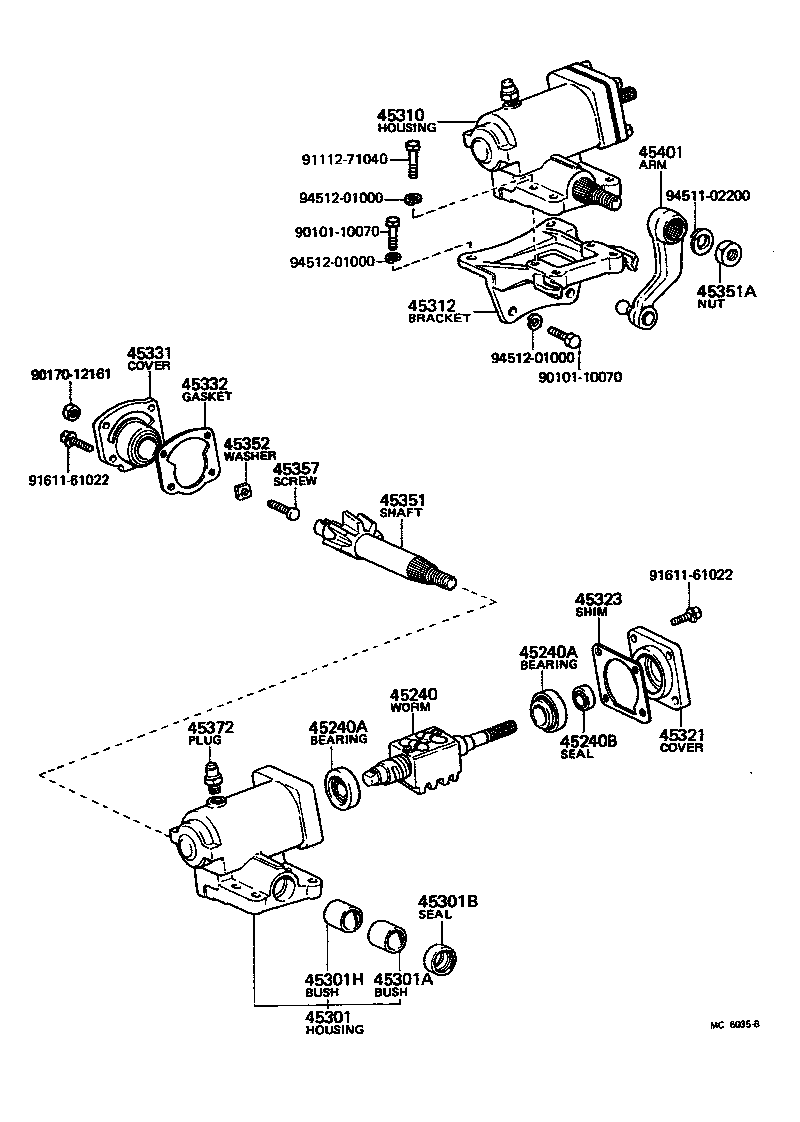

(7901- )RN37,38,47,48
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36040 |
RN37 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35110 |
RN37 |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35040 |
RN37 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-35080 |
RN37 |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 90170-12161 | ||||
| 91112-71040 | ||||
| 91611-61022 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(7901- )RN37,38,47,48
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

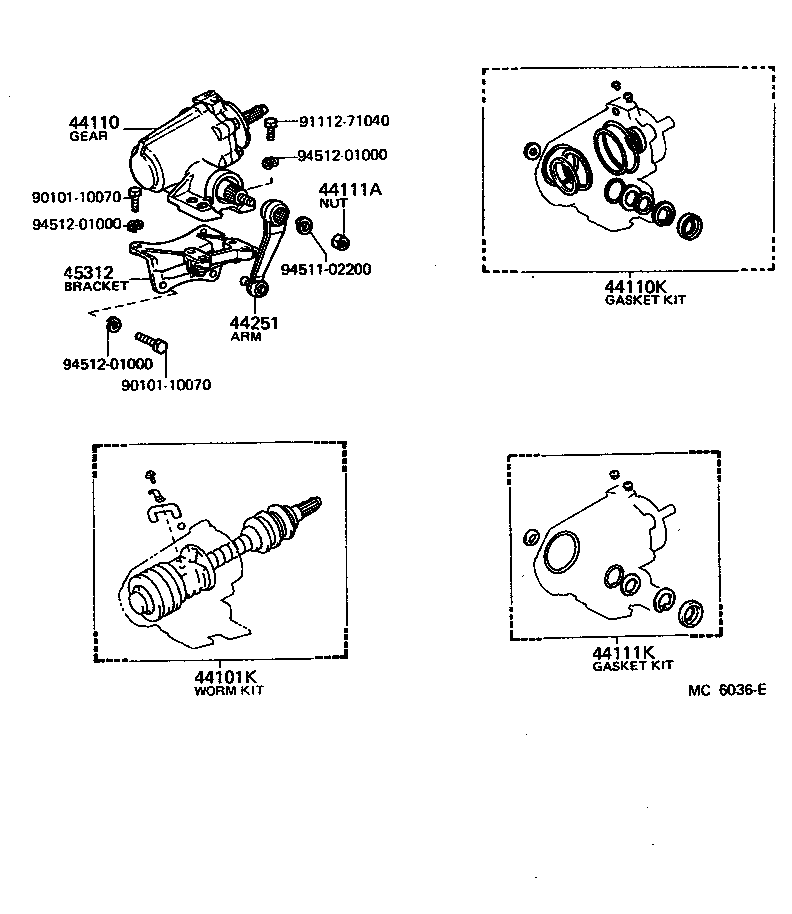

| 44101K - WORM KIT, POWER STEERING | ||||
| 04044-35010 |
RN37 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35010 |
RN37 |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-35010 |
RN37 |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-35080 |
RN37 |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-35040 |
RN37 |
1 | ||
| Common parts | ||||
| 90101-10070 | ||||
| 91112-71040 | ||||
| 94511-02200 | ||||
| 94512-01000 | ||||
(7908-8008)RN37,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35020 |
RN37 W/STEERING LOCK |
1 | ||
| 45210-22050 |
RN37 W/TILT STEERING |
1 | ||
| 45210-35030 |
RN37 W/O STEERING LOCK |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
RN37 |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35030 |
RN37 W/POWER STEERING |
1 | ||
| 45220-35060 |
RN37 W/POWER STEERING |
1 | ||
| 45220-35010 |
RN37 |
1 | ||
| 45220-35050 |
RN37 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35080 |
RN37 |
1 | ||
| 45205-35090 |
RN37 W/TILT STEERING |
1 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-36010 |
RN37 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35010 |
RN37 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-89102 |
RN3#,42 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LN40,RN3#,4# |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
RN37 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-35070 |
LN40,RN3#,4# W/O STEERING LOCK |
1 | ||
| 45307-35060 |
LN40,RN3#,4# W/STEERING LOCK |
1 | ||
| 45280-22200 |
RN37 W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3514004 |
RN37 UPR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3514001 |
RN37 UPR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45287-3508004 |
RN37 LWR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45286-3514005 |
RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45287-3508001 |
RN37 LWR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45287-3508005 |
RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3514004 |
RN37 UPR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3514001 |
RN37 UPR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45287-3508004 |
RN37 LWR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45286-3514005 |
RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45287-3508001 |
RN37 LWR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45287-3508005 |
RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
RN37 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
RN37 |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 91111-51032 | ||||
| 91611-40616 | ||||
| 91611-60825 | ||||
| 91616-60820 | ||||
| 91656-60618 | ||||
| 91656-60830 | ||||
| 93219-15012 | ||||
| 93315-14012 | ||||
| 94511-00500 | ||||
| 94511-01000 | ||||
| 94512-01000 | ||||
| 96451-00600 | ||||
(7908-8008)RN37,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22010 |
RN37 |
1 | ||
| 45081-22010 |
RN37;RN32,42..SR5 |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
RN37 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
RN37 L=107.5 |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-35020 |
RN37 W/STEERING LOCK |
1 | ||
| 45210-22050 |
RN37 W/TILT STEERING |
1 | ||
| 45210-35030 |
RN37 W/O STEERING LOCK |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
RN37 W/TILT STEERING,UPR |
1 | ||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 90363-28001 |
RN37 W/TILT STEERING,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
RN37 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
RN37 W/TILT STEERING |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45220-35030 |
RN37 W/POWER STEERING |
1 | ||
| 45220-35060 |
RN37 W/POWER STEERING |
1 | ||
| 45220-35010 |
RN37 |
1 | ||
| 45220-35050 |
RN37 |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35010 |
RN37 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35080 |
RN37 |
1 | ||
| 45205-35090 |
RN37 W/TILT STEERING |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
RN37 W/TILT STEERING |
1 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-36010 |
RN37 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-35010 |
RN37 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-89102 |
RN3#,42 |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
RN37 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-35070 |
LN40,RN3#,4# W/O STEERING LOCK |
1 | ||
| 45307-35060 |
LN40,RN3#,4# W/STEERING LOCK |
1 | ||
| 45280-22200 |
RN37 W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3514004 |
RN37 UPR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3514001 |
RN37 UPR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45287-3508004 |
RN37 LWR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45286-3514005 |
RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45287-3508001 |
RN37 LWR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45287-3508005 |
RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3514004 |
RN37 UPR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3514001 |
RN37 UPR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45287-3508004 |
RN37 LWR,W/TILT STEERING,BLUE,BLUE |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45286-3514005 |
RN37 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45287-3508001 |
RN37 LWR,W/TILT STEERING,BLACK,BLACK |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45287-3508005 |
RN37 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
RN37 |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
RN37 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-35010 |
RN37 W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
RN37 OD=17.996-18.003,D=17.996-18.003 |
1 | ||
| 45813-22040 |
RN37 OD=18.017-18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
RN37 OD=18.010-18.017,D=18.010-18.017 |
1 | ||
| 45813-22020 |
RN37 OD=18.003-18.010,D=18.003-18.010 |
1 | ||
| 45813-22050 |
RN37 OD=17.989-17.996,D=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
RN37 OD=17.982-18.000,D=17.982-18.000 |
1 | ||
| 45814-22020 |
RN37 OD=18.000-18.018,D=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22030 |
RN37 T=0.8 |
2 | ||
| 45815-22010 |
RN37 T=0.2 |
2 | ||
| 45815-22050 |
RN37 T=1.8 |
2 | ||
| 45815-22040 |
RN37 T=1.4 |
2 | ||
| 45815-22020 |
RN37;RN32,42..SR5 T=0.5 |
2 | ||
| 45815-22010 |
RN37;RN32,42..SR5 T=0.2 |
2 | ||
| 45815-22050 |
RN37;RN32,42..SR5 T=1.8 |
2 | ||
| 45815-22040 |
RN37;RN32,42..SR5 T=1.4 |
2 | ||
| 45815-22030 |
RN37;RN32,42..SR5 T=0.8 |
2 | ||
| 45815-22020 |
RN37 T=0.5 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
RN37 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
RN37 |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
RN37 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
RN37 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
RN37 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
RN37 |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
RN37 |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
RN37 |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22010 |
RN37 |
1 | ||
| Common parts | ||||
| 90114-08002 | ||||
| 90119-06165 | ||||
| 90119-08042 | ||||
| 90119-08139 | ||||
| 90164-50048 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90930-04008 | ||||
| 91111-51032 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91616-60820 | ||||
| 91656-60618 | ||||
| 91656-60830 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-01000 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
| 96451-00600 | ||||

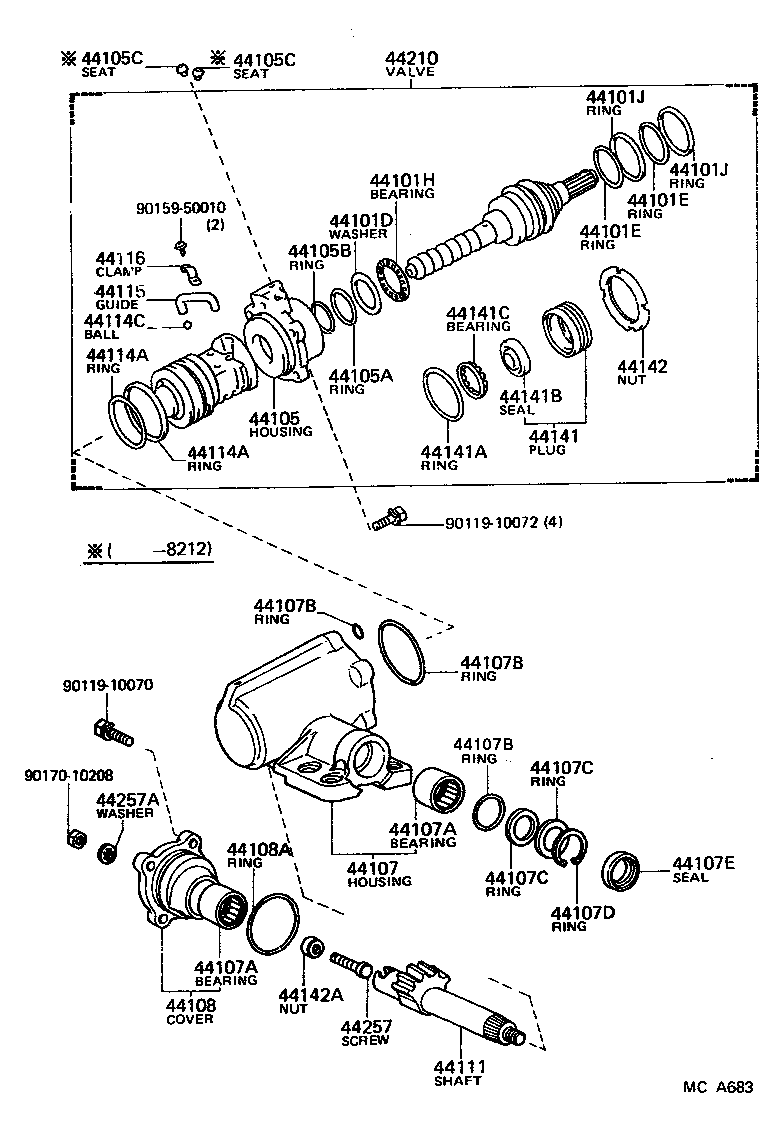

(7901- )RN37,38,47,48
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
RN37 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
RN37 |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
RN37 |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
RN37 |
1 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-60010 |
RN37 |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
RN37 |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
RN37 |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
RN37 OD=13,PRESSUR PORT |
1 | ||
| 90410-05035 |
RN37 OD=11.8,RETURN PORT |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
RN37 OD=13,PRESSUR PORT |
1 | ||
| 90410-05035 |
RN37 OD=11.8,RETURN PORT |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
RN37 OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
RN37 OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96710-01010 |
RN37 OD=13,T=1.9 |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
RN37 |
44 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
RN37 |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
RN37 |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
RN37 |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
RN37 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
RN37 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
RN37 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-35010 |
RN37 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
RN37 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90119-10072 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
