RN37L-KDA3 (1979)

Toyota Pickup

Production Jan 1979 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )RN37,38,47,48

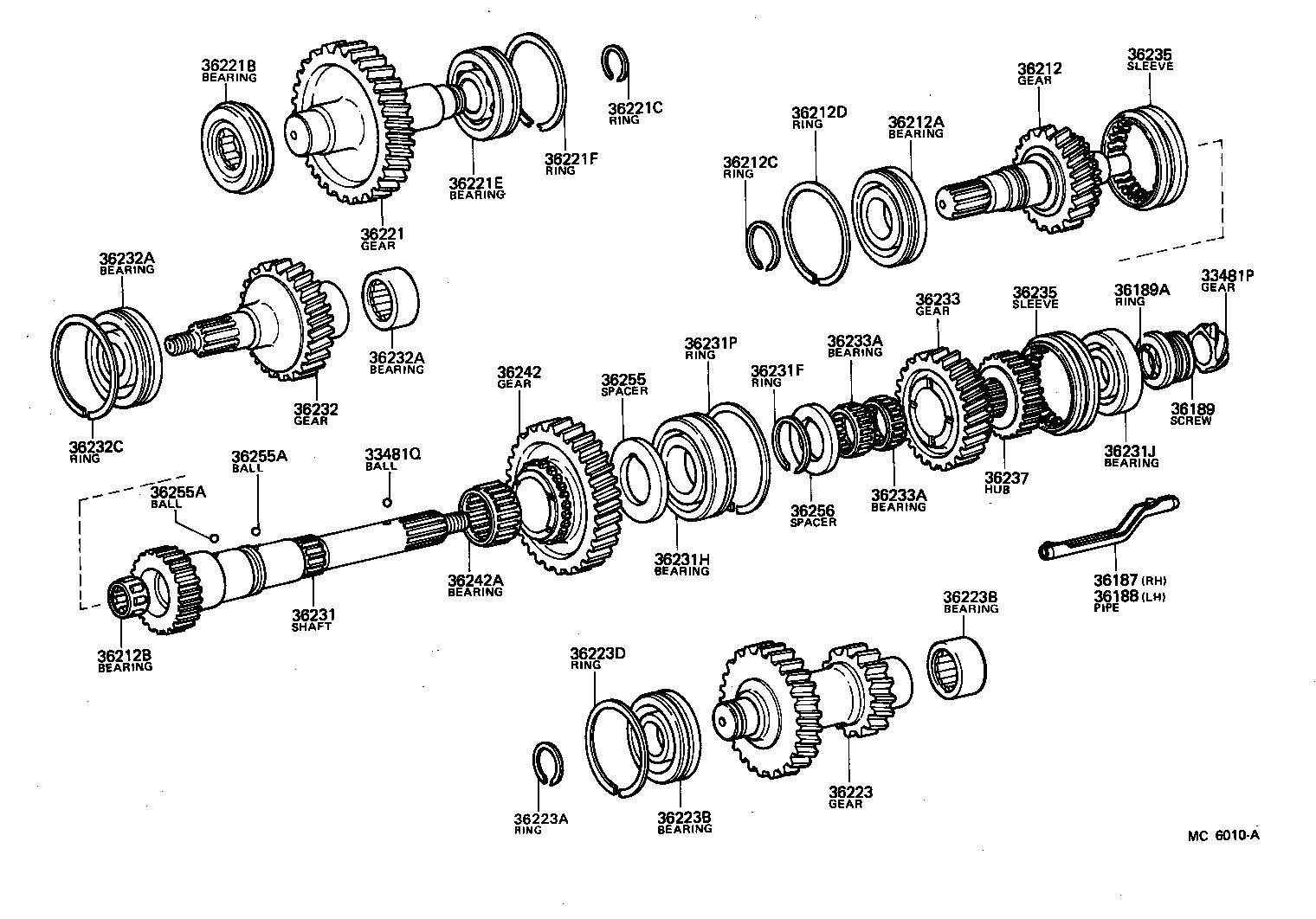

Click highlighted areas on diagram

diagram 33481P 33481Q 36187 36188 36189 36189A 36212 36212A 36212B 36212C 36212D 36221 36221B 36221C 36221E 36221F 36223 36223A 36223B 36223B 36223D 36231 36231F 36231H 36231J 36231P 36232 36232A 36232A 36232C 36233 36233A 36233A 36235 36235 36237 36242 36242A 36255 36255A 36255A 36256
Part # Description Qty Price
33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481-22010

RN37

N=6,MARK 6X18-20,N=6

 1
36212 - GEAR, TRANSFER INPUT
36212-35010

RN37

 1
