RN37L-KDA (1979)

Toyota Pickup

Production Jan 1979 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901-7908)RN37,47 ; (7908- )RN3#,4#

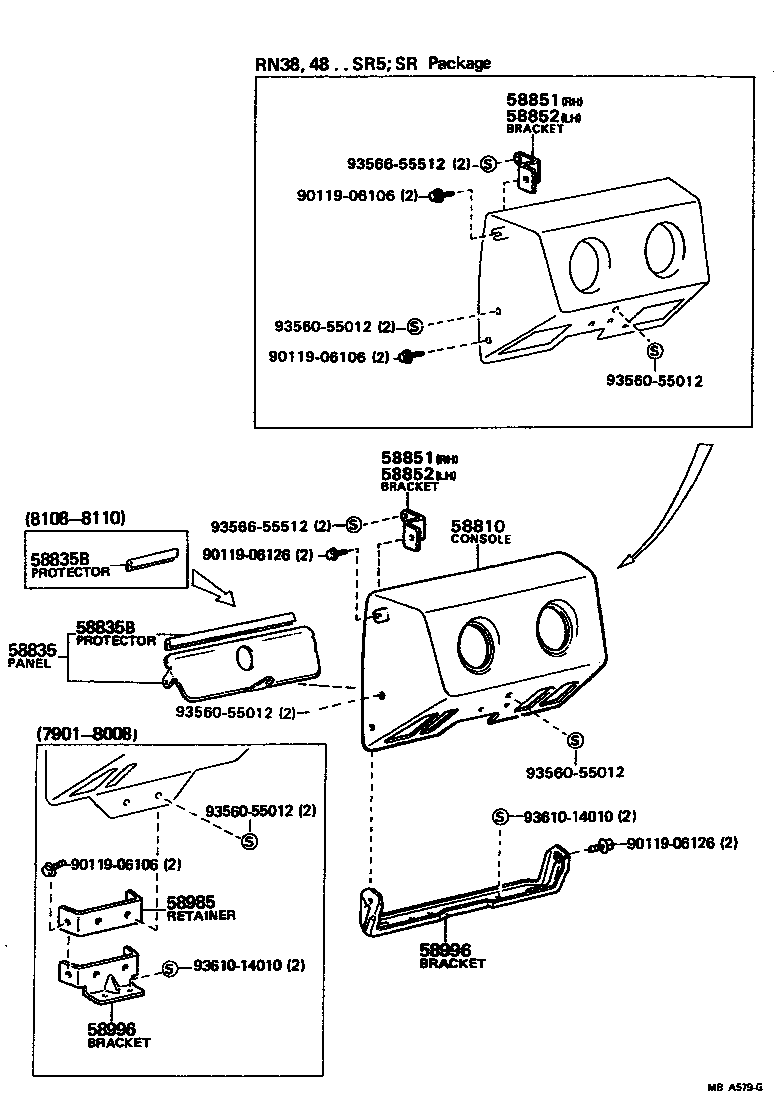

Click highlighted areas on diagram

diagram 58810 58835 58835B 58835B 58851 58851 58852 58852 58985 58996 58996 9011906106 9011906106 9011906106 9011906126 9011906126 9356055012 9356055012 9356055012 9356055012 9356055012 9356655512 9356655512 9361014010 9361014010
Part # Description Qty Price
58810 - CONSOLE ASSY
58811-9511001

RN37

SR PACKAGE,*GCB,BLACK,BLACK

 1
58811-9511004

RN37

SR PACKAGE,*GCB,BLUE,BLUE

 1
58811-9511005

RN37

SR PACKAGE,*GCB,BEIGE,BEIGE

 1
58835 - PANEL, CONSOLE, UPPER
58821-95110

RN37

SR PACKAGE

 1
58985 - RETAINER, CONSOLE BOX
58985-95110

RN37

SR PACKAGE

 1
Common parts
90119-06106
90119-06126
93560-55012
93566-55512
93610-14010
