RN37L-KDA (1979)

Toyota Pickup

Production Jan 1979 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)SR5 ; (7808-8108)RN37,38,47,48 ; (8108- )RN3#,4#..SR5

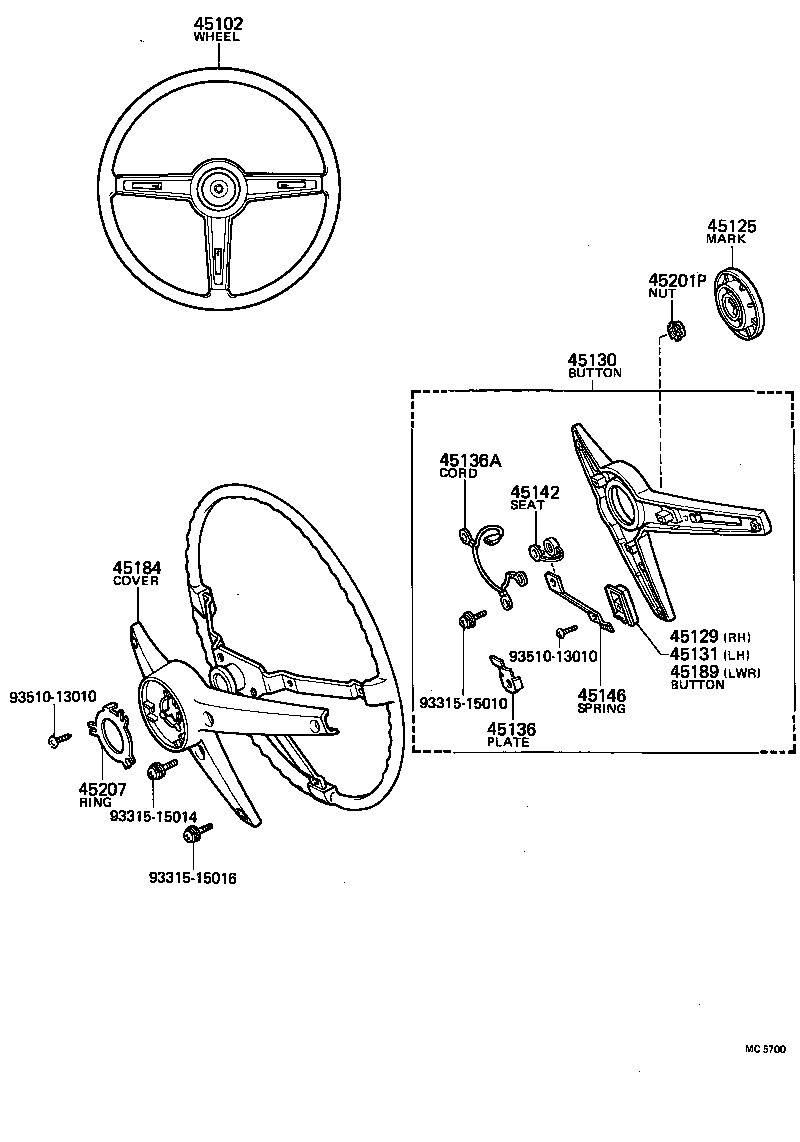

Click highlighted areas on diagram

diagram 45102 45125 45129 45130 45131 45136 45136A 45142 45146 45184 45189 45201P 45207 9331515010 9331515014 9331515016 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-35170

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 1
45125 - MARK, STEERING WHEEL PAD
45125-35050

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 1
45129 - BUTTON, HORN, NO.2
45131-14050

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 1
45130 - BUTTON ASSY, HORN
45130-35130

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 1
45131 - BUTTON, HORN, NO.1
45131-14050

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-14040

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 3
45136A - CORD(FOR HORN CONTACT RING)
90945-02006

RN37;RN32,42..SR5

3-SPOKE,L=120

 1
90945-02040

LN40,RN3#,4#..DLX,STD

2-SPOKE

 2
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-14030

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 3
45146 - SPRING, HORN BUTTON CONTACT
45146-14040

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 3
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-1401001

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE,BLACK

 1
45189 - BUTTON, HORN, NO.3
45131-14050

RN37,38,47,48;RN32,34,42,44..SR5

3-SPOKE

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LN40,RN3#,4#

 1
45207 - RING, HORN CONTACT
45176-20030

LN40,RN3#,4#

 1
Common parts
93315-15010
93315-15014
93315-15016
93510-13010
