RN37L-KDA (1979)
Toyota Pickup

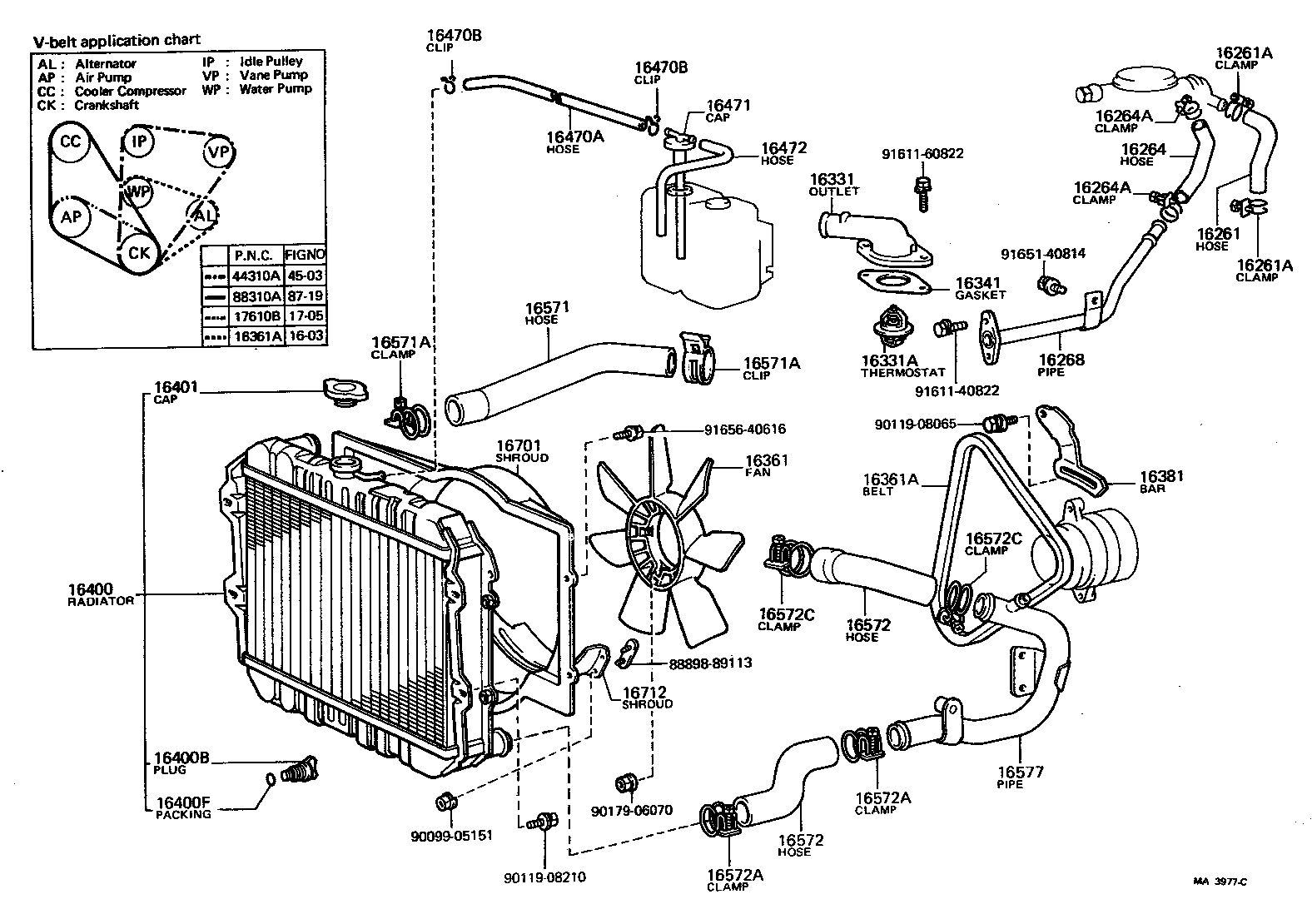

(7901-7908)20R..RN37,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-38010 |
20R..RN3#,4# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
20R..RN3#,4# |
2 | ||
| 90460-25002 |
20R..RN3#,4# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
20R..RN3#,4# |
2 | ||
| 90460-25002 |
20R..RN3#,4# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-38020 |
20R..RN3#,4# |
1 | ||
| 16264-38030 |
20R..RN3#,4# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90460-25002 |
20R..RN3#,4# |
2 | ||
| 96112-10250 |
20R..RN3#,4# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90460-25002 |
20R..RN3#,4# |
2 | ||
| 96112-10250 |
20R..RN3#,4# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-38010 |
20R..RN3#,4# |
1 | ||
| 16268-38020 |
20R..RN3#,4# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-38011 |
20R..RN3#,4# |
1 | ||
| 16331-38012 |
20R..RN3#,4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
20R..RN37..USA *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03036 |
20R..RN3#,4#..3QT,HLF *WAX 88-100,FUJI-THOMSON |
1 | ||
| 90916-03034 |
20R..RN3#,4#..(3QT,HLF)..USA *CAL,*WAX 82-95,FUJI-THOMSON |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
20R..RN3#,4# |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
20R,22R..RN3#,4# 7 BLADES,OD=380 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RN3#,4# L=880 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RN3#,4# L=880 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38020 |
20R,22R..RN3#,4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-34290 |
20R..RN37 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
20R,22R..RN3#,4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
20R,22R..RN3#,4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
20R,22R..RN3#,4# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12077 |
20R,22R..RN3#,4# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
20R,22R..RN3#,4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
20R,22R..RN3#,4# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85037-14010 |
20R..RN3#,4# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-38012 |
20R..RN3#,4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
20R..RN3#,4# OUTLET SIDE,ID=37 |
1 | ||
| 96111-10440 |
20R..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
20R..RN3#,4# OUTLET SIDE,ID=37 |
1 | ||
| 96111-10440 |
20R..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-38020 |
20R..RN37 |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 99332-10830 |
20R..RN37..USA L=830 |
1 | ||
| 99332-00865 |
20R..RN37..USA L=865 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-51135 |
RN37 |
1 | ||
| 99332-11135 |
RN37 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-01140 |
RN3#,42..USA |
1 | ||
| 99332-11110 |
RN3#,42..USA |
1 | ||
| Common parts | ||||
| 88898-89113 | ||||
| 90119-08065 | ||||
| 90119-08210 | ||||
| 90179-06070 | ||||
| 91611-40822 | ||||
| 91611-60820 | ||||
| 91651-40814 | ||||
| 91655-40618 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||

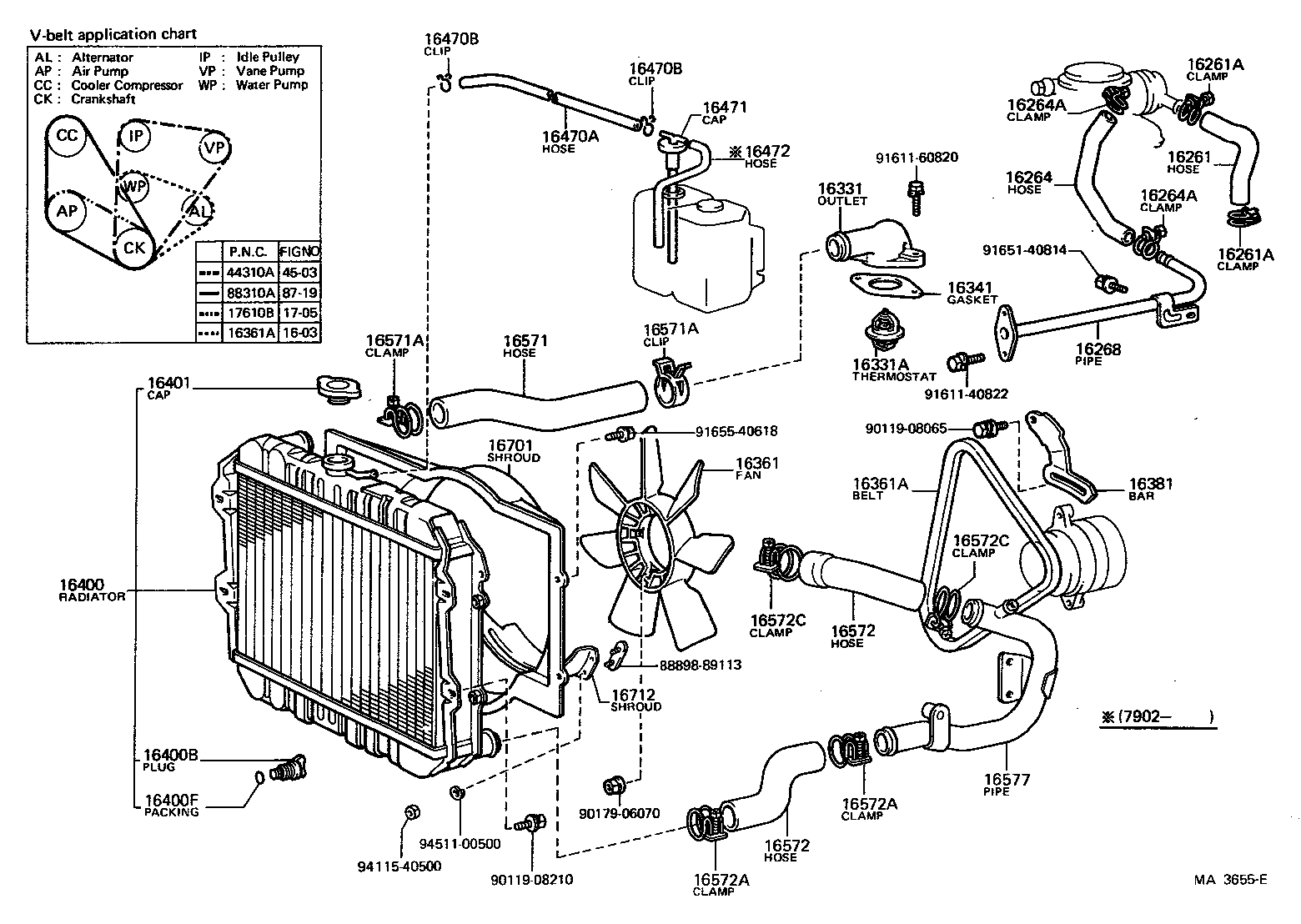

(7908-8008)20R..RN37,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-38010 |
20R..RN3#,4# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
20R..RN3#,4# |
2 | ||
| 90460-25002 |
20R..RN3#,4# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
20R..RN3#,4# |
2 | ||
| 90460-25002 |
20R..RN3#,4# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-38020 |
20R..RN3#,4# |
1 | ||
| 16264-38030 |
20R..RN3#,4# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90460-25002 |
20R..RN3#,4# |
2 | ||
| 96112-10250 |
20R..RN3#,4# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90460-25002 |
20R..RN3#,4# |
2 | ||
| 96112-10250 |
20R..RN3#,4# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-38010 |
20R..RN3#,4# |
1 | ||
| 16268-38020 |
20R..RN3#,4# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-38011 |
20R..RN3#,4# |
1 | ||
| 16331-38012 |
20R..RN3#,4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
20R..RN37..USA *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03036 |
20R..RN3#,4#..3QT,HLF *WAX 88-100,FUJI-THOMSON |
1 | ||
| 90916-03034 |
20R..RN3#,4#..(3QT,HLF)..USA *CAL,*WAX 82-95,FUJI-THOMSON |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
20R..RN3#,4# |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
20R,22R..RN3#,4# 7 BLADES,OD=380 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RN3#,4# L=880 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
20R..RN3#,4# L=880 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38020 |
20R,22R..RN3#,4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-34290 |
20R..RN37 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
20R,22R..RN3#,4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
20R,22R..RN3#,4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
20R,22R..RN3#,4# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12077 |
20R,22R..RN3#,4# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
20R,22R..RN3#,4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
20R,22R..RN3#,4# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85037-14010 |
20R..RN3#,4# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-38012 |
20R..RN3#,4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
20R..RN3#,4# OUTLET SIDE,ID=37 |
1 | ||
| 96111-10440 |
20R..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
20R..RN3#,4# OUTLET SIDE,ID=37 |
1 | ||
| 96111-10440 |
20R..RN3#,4# RADIATOR SIDE,ID=44 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-38020 |
20R..RN37 |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 99332-10830 |
20R..RN37..USA L=830 |
1 | ||
| 99332-00865 |
20R..RN37..USA L=865 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-51135 |
RN37 |
1 | ||
| 99332-11135 |
RN37 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-01140 |
RN3#,42..USA |
1 | ||
| 99332-11110 |
RN3#,42..USA |
1 | ||
| Common parts | ||||
| 88898-89113 | ||||
| 90099-05151 | ||||
| 90119-08065 | ||||
| 90119-08210 | ||||
| 90179-06070 | ||||
| 91611-40822 | ||||
| 91611-60822 | ||||
| 91651-40814 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
