RN34L-PDA3 (1981)

Toyota Pickup

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LN40 ; (8108- )RN3#,4#..DLX,STD

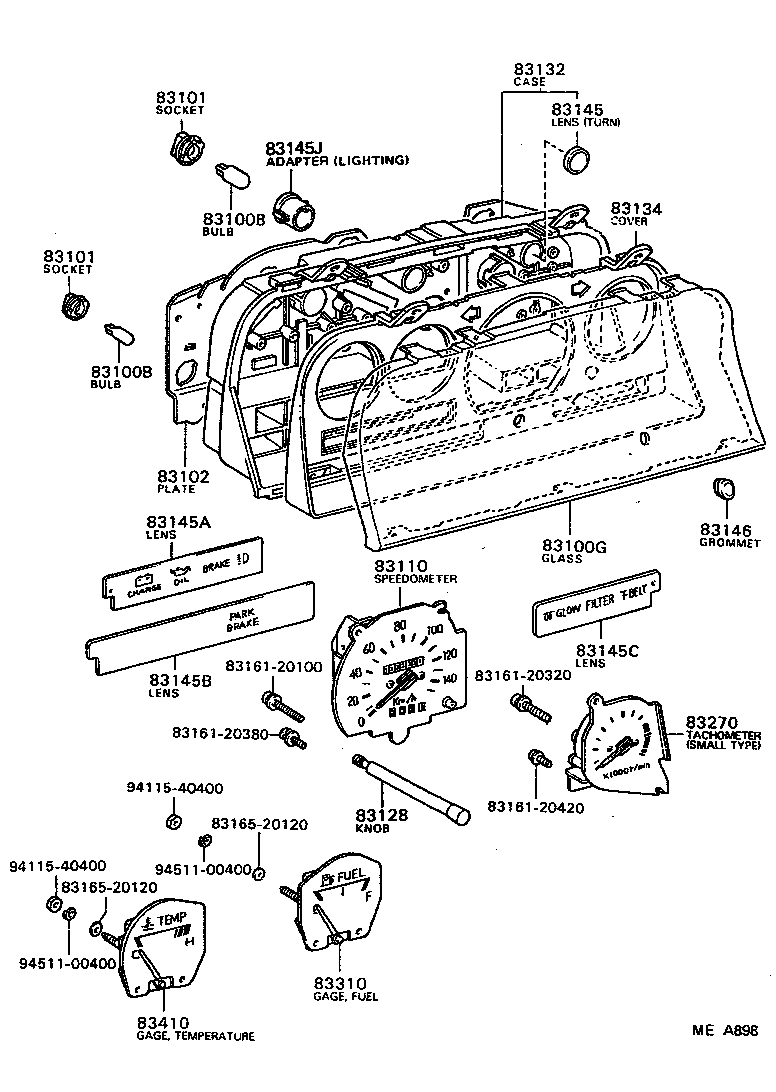

Click highlighted areas on diagram

diagram 83100B 83100B 83100G 83101 83101 83102 83110 83128 83132 83134 83145 83145A 83145B 83145C 83145J 83146 8316120100 8316120320 8316120380 8316120420 8316520120 8316520120 83270 83310 83410 9411540400 9411540400 9451100400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

LN40,RN3#,4#

12V 3.4W,12V 3.4W

 13
83100B - BULB, COMBINATION METER, NO.1
99132-12034

LN40,RN3#,4#

12V 3.4W,12V 3.4W

 13
83100G - GLASS, COMBINATION METER
83138-89134

RN3#..DLX;RN42..DLX..USA

W/CLOCK HOLE

 1
83138-89132

RN3#,42..(DLX,STD)..USA

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

LN40,RN3#,4#

BULB=3.4W

 13
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

LN40,RN3#,4#

BULB=3.4W

 13
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-89142

RN3#,42

 1
83110 - SPEEDOMETER ASSY
83110-89142

RN3#,42..(DLX,STD)..USA

 1
83134 - COVER, COMBINATION METER, NO.1
83134-89130

RN3#,42..(DLX,STD)..USA

 1
83134-89131

RN3#,42..DLX,SR5

W/CLOCK OR TACHOMETER

 1
83145 - LENS, METER, NO.1
83145-89114

LN40,RN3#,4#

 2
83145A - LENS, METER, NO.2
83145-89113

RN3#,42

 1
83145B - LENS, METER, NO.3
83145-89112

RN3#,42

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-89130

LN40,RN3#,4#

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-89130

RN3#,42

 1
Common parts
83161-20100
83161-20320
83161-20380
83161-20420
83165-20120
94115-40400
94511-00400
