RN34L-PDA3 (1981)

Toyota Pickup

Production Aug 1981 - Aug 1982
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8207)20R,22R

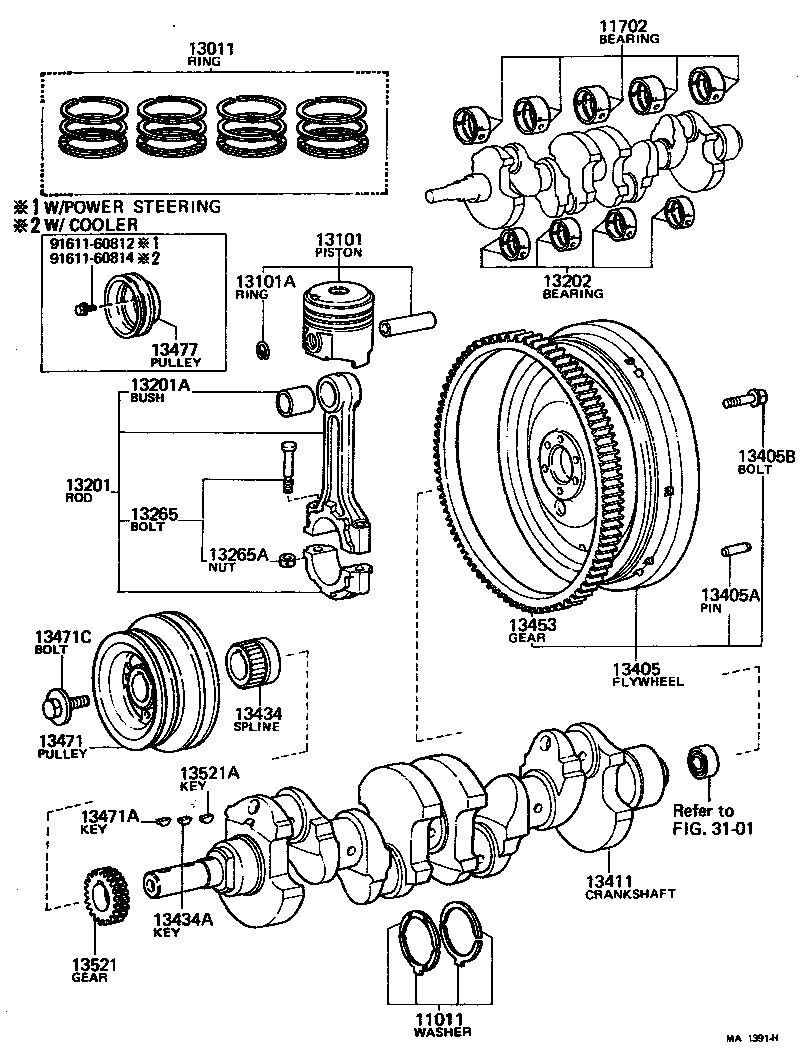

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13434 13434A 13453 13471 13471A 13471C 13477 13521 13521A 3101 9161160812 9161160814
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-38010

20R,22R..RN3#,4#

STD,STD

 1
11013-38010

20R,22R..RN3#,4#

O/S 0.250,O/S 0.250

 1
11012-38010

20R,22R..RN3#,4#

O/S 0.125,O/S 0.125

 1
11702 - BEARING SET, CRANKSHAFT
11704-38010

20R,22R..RN3#,4#

U/S 0.25,U/S 0.25

 1
11702-38010

20R,22R..RN3#,4#

STD,STD

 1
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25105

20R,22R..RN3#,4#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-38011

20R,22R..RN3#,4#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73072

20R,22R..RN3#,4#

 4
13202 - BEARING SET, CONNECTING ROD
13204-38011

20R,22R..RN3#,4#

U/S 0.25,U/S 0.25

 1
13202-38011

20R,22R..RN3#,4#

STD,STD

 1
13265 - BOLT, CONNECTING ROD
13265-39025

20R,22R..RN3#,4#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-10198

20R,22R..RN3#,4#

 8
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

20R,22R..RN3#,4#

L=23,OD=8,L=23,OD=8

 3
13411 - CRANKSHAFT
13411-38010

20R,22R..RN3#,4#

 1
13434 - SPLINE, OIL PUMP DRIVE
13434-38010

20R,22R..RN3#,4#

 1
13434A - KEY(FOR OIL PUMP DRIVE SPLINE)
90280-05010

20R,22R..RN3#,4#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

20R,22R..RN3#,4#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14004

20R,22R..RN3#,4#

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-20060

20R,22R..RN32,34,42,44

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-38010

20R,22R..RN3#,4#

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

20R,22R..RN3#,4#

 1
Common parts
91611-60812
91611-60814
Linked diagrams
3101

(8207- )22R

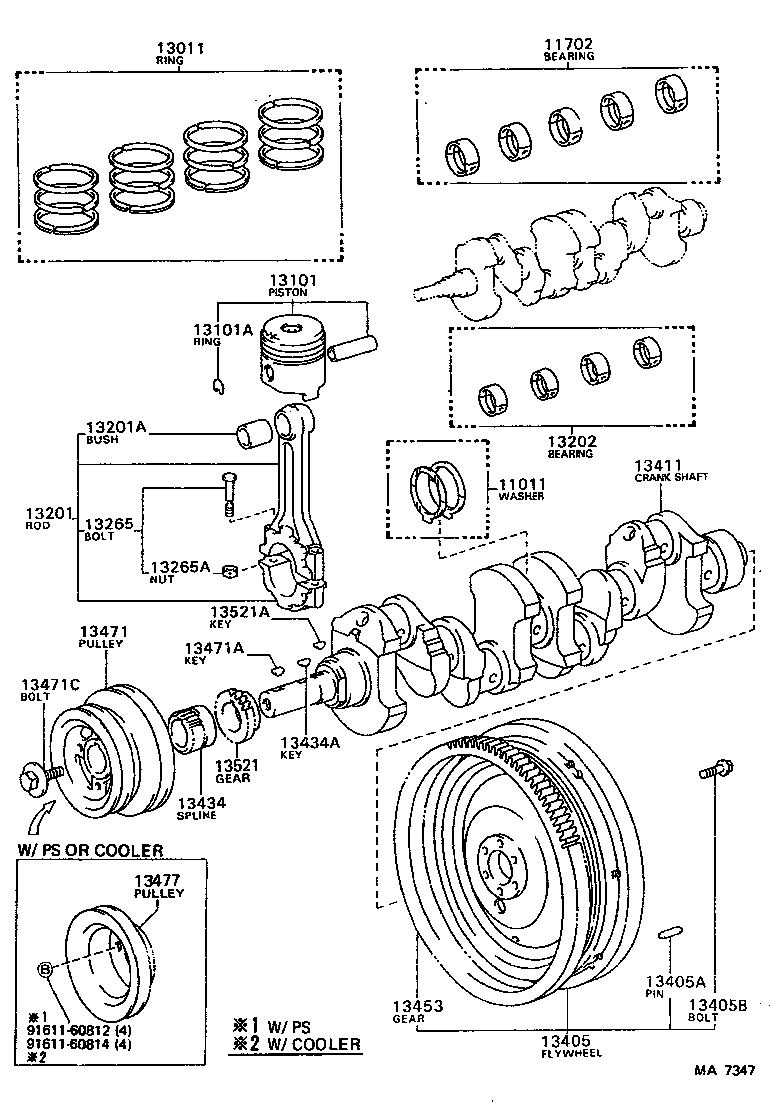

Click highlighted areas on diagram

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13434 13434A 13453 13471 13471A 13471C 13477 13521 13521A 9161160812 9161160814
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-38010

20R,22R..RN3#,4#

STD,STD

 1
11013-38010

20R,22R..RN3#,4#

O/S 0.250,O/S 0.250

 1
11012-38010

20R,22R..RN3#,4#

O/S 0.125,O/S 0.125

 1
11702 - BEARING SET, CRANKSHAFT
11704-38010

20R,22R..RN3#,4#

U/S 0.25,U/S 0.25

 1
11702-38010

20R,22R..RN3#,4#

STD,STD

 1
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25105

20R,22R..RN3#,4#

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-38011

20R,22R..RN3#,4#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73072

20R,22R..RN3#,4#

 4
13202 - BEARING SET, CONNECTING ROD
13204-38011

20R,22R..RN3#,4#

U/S 0.25,U/S 0.25

 1
13202-38011

20R,22R..RN3#,4#

STD,STD

 1
13265 - BOLT, CONNECTING ROD
13265-39025

20R,22R..RN3#,4#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-10198

20R,22R..RN3#,4#

 8
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

20R,22R..RN3#,4#

L=23,OD=8,L=23,OD=8

 3
13411 - CRANKSHAFT
13411-38010

20R,22R..RN3#,4#

 1
13434 - SPLINE, OIL PUMP DRIVE
13434-38010

20R,22R..RN3#,4#

 1
13434A - KEY(FOR OIL PUMP DRIVE SPLINE)
90280-05010

20R,22R..RN3#,4#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

20R,22R..RN3#,4#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14004

20R,22R..RN3#,4#

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-20060

20R,22R..RN32,34,42,44

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-38010

20R,22R..RN3#,4#

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

20R,22R..RN3#,4#

 1
Common parts
91611-60812
91611-60814
