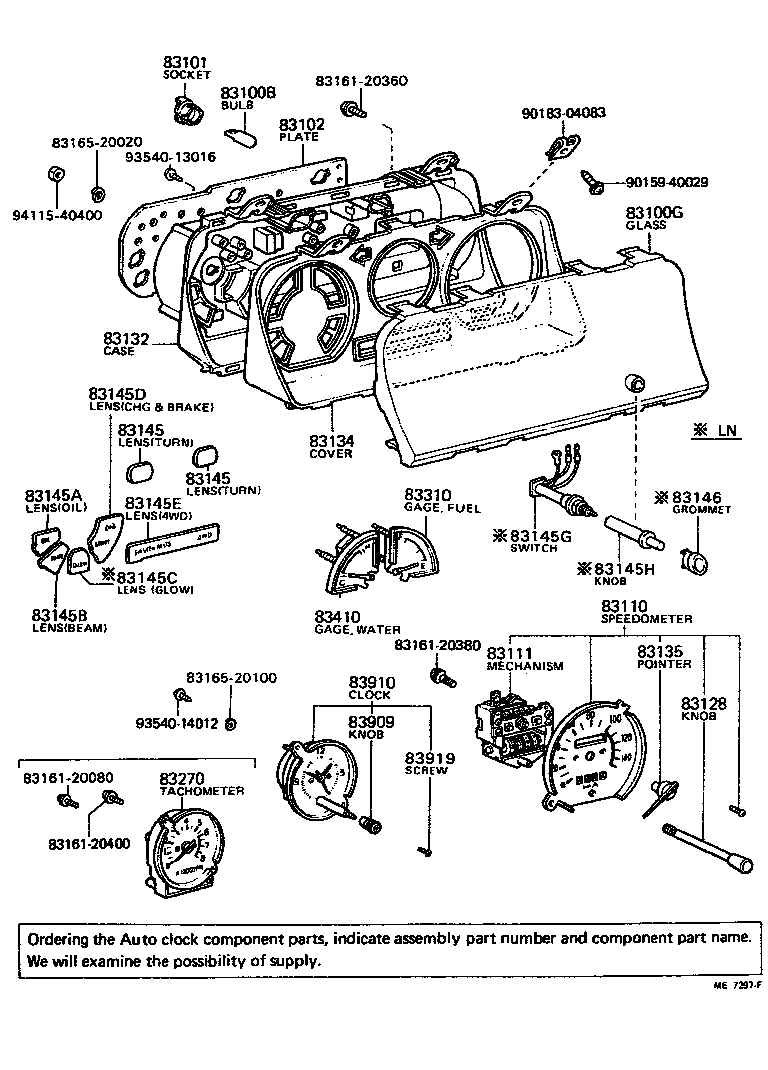

RN34L-MSA3 (1980)
Toyota Pickup
(7808-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN40,RN3#,4# 12V 3.4W,12V 3.4W |
13 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-89134 |
RN3#,4# W/CLOCK HOLE |
1 | ||
| 83138-89257 |
RN3#,4#..SR5 |
1 | ||
| 83138-89130 |
RN38,48;RN34,44..SR5 W/TRIP METER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN40,RN3#,4# BULB=3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-89142 |
RN3#,42 |
1 | ||
| 83247-89210 |
RN3#,4#..USA CALIFORNIA SPEC |
1 | ||
| 83247-89220 |
RN3#,4#..SR5 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89167 |
RN34,44..SR5..USA W/TACHOMETER,CALIFORNIA SPEC |
1 | ||
| 83110-89173 |
RN3#,4#..SR5..USA |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89130 |
RN38,48;RN34,44..SR5..USA |
1 | ||
| 83128-89130 |
LN40,RN3#,4#..SR5 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89130 |
RN3#,4#..3QT,HLF |
1 | ||
| 83132-89257 |
RN3#,4#..SR5 |
1 | ||
| 83132-89207 |
RN3#,4# CALIFORNIA SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-89204 |
RN3#,4# |
1 | ||
| 83134-89257 |
RN3#,4#..SR5 |
1 | ||
| 83134-89205 |
RN3#,4# W/CLOCK OR TACHOMETER |
1 | ||
| 83134-89131 |
RN3#,42..DLX,SR5 W/CLOCK OR TACHOMETER |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-89130 |
RN3#,42 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN40,RN3#,4# |
2 | ||
| 83145-89246 |
RN3#,4#..SR5 |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN40,RN3#,4# |
2 | ||
| 83145-89246 |
RN3#,4#..SR5 |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89240 |
RN34,44..5F..SR5 |
1 | ||
| 83145-89212 |
LN40,RN3#,4# |
1 | ||
| 83145-89113 |
RN3#,42 |
1 | ||
| 83145-89252 |
RN34,44..5F..SR5 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89112 |
RN3#,42 |
1 | ||
| 83145-89213 |
LN40,RN3#,4# |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89111 |
RN3#,42 |
1 | ||
| 83145-89211 |
LN40,RN3#,4# |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-89210 |
RN34,44..(3FC,4F,5F)..(3QT,HLF) |
1 | ||
| 83145-89214 |
RN34,44..3FC,4F,5F CALIFORNIA SPEC |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-89177 |
RN3#,4#..SR5 |
1 | ||
| 83270-89170 |
RN3#,4#..SR5 |
1 | ||
| 83270-89166 |
RN38,48;RN34,44..SR5 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-89130 |
LN40,RN3#,4# |
1 | ||
| 83243-89212 |
RN3#,4#..SR5 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-89130 |
RN3#,42 |
1 | ||
| 83244-89213 |
RN3#,4#..SR5 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20360 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20020 | ||||
| 83165-20100 | ||||
| 90159-40029 | ||||
| 90183-04083 | ||||
| 93540-13016 | ||||
| 93540-14012 | ||||
| 94115-40400 | ||||
(8108- )RN3#,4#..SR5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN40,RN3#,4# 12V 3.4W,12V 3.4W |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN40,RN3#,4# 12V 3.4W,12V 3.4W |
13 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-89134 |
RN3#,4# W/CLOCK HOLE |
1 | ||
| 83138-89257 |
RN3#,4#..SR5 |
1 | ||
| 83138-89130 |
RN38,48;RN34,44..SR5 W/TRIP METER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN40,RN3#,4# BULB=3.4W |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN40,RN3#,4# BULB=3.4W |
13 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-89142 |
RN3#,42 |
1 | ||
| 83247-89210 |
RN3#,4#..USA CALIFORNIA SPEC |
1 | ||
| 83247-89220 |
RN3#,4#..SR5 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89167 |
RN34,44..SR5..USA W/TACHOMETER,CALIFORNIA SPEC |
1 | ||
| 83110-89173 |
RN3#,4#..SR5..USA |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-89130 |
RN38,48;RN34,44..SR5..USA |
1 | ||
| 83128-89130 |
LN40,RN3#,4#..SR5 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89130 |
RN3#,4#..3QT,HLF |
1 | ||
| 83132-89257 |
RN3#,4#..SR5 |
1 | ||
| 83132-89207 |
RN3#,4# CALIFORNIA SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-89204 |
RN3#,4# |
1 | ||
| 83134-89257 |
RN3#,4#..SR5 |
1 | ||
| 83134-89205 |
RN3#,4# W/CLOCK OR TACHOMETER |
1 | ||
| 83134-89131 |
RN3#,42..DLX,SR5 W/CLOCK OR TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN40,RN3#,4# |
2 | ||
| 83145-89246 |
RN3#,4#..SR5 |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89240 |
RN34,44..5F..SR5 |
1 | ||
| 83145-89212 |
LN40,RN3#,4# |
1 | ||
| 83145-89113 |
RN3#,42 |
1 | ||
| 83145-89252 |
RN34,44..5F..SR5 |
1 | ||
| 83145J - ADAPTER, METER BULB SOCKET | ||||
| 83145-16020 |
LN40,RN3#,4# LIGHTING |
4 | ||
| 83145-89244 |
RN3#,4#..SR5 TURN |
2 | ||
| 83145J - ADAPTER, METER BULB SOCKET | ||||
| 83145-16020 |
LN40,RN3#,4# LIGHTING |
4 | ||
| 83145-89244 |
RN3#,4#..SR5 TURN |
2 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-89177 |
RN3#,4#..SR5 |
1 | ||
| 83270-89170 |
RN3#,4#..SR5 |
1 | ||
| 83270-89166 |
RN38,48;RN34,44..SR5 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-89130 |
LN40,RN3#,4# |
1 | ||
| 83243-89212 |
RN3#,4#..SR5 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-89130 |
RN3#,42 |
1 | ||
| 83244-89213 |
RN3#,4#..SR5 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20300 | ||||
| 83161-20320 | ||||
| 83161-20380 | ||||
| 83165-20120 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
