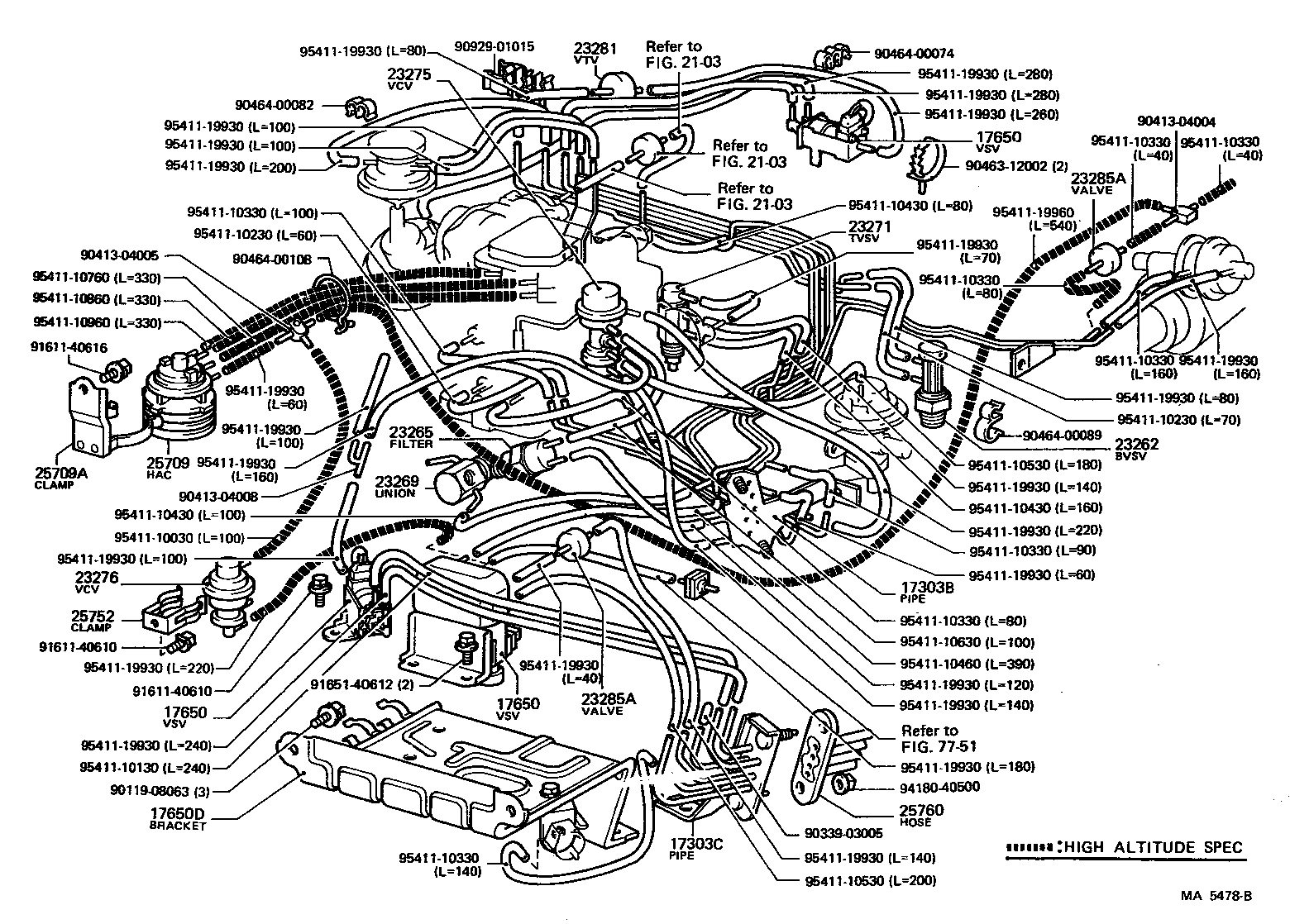

RN34L-MSA (1980)
Toyota Pickup
(8008-8104)22R..3QT,HLF..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17304-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17304-35030 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25707-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25707-35060 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17304-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17304-35030 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25707-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25707-35060 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02068 |
22R..RN3#,4# |
1 | ||
| 90925-02069 |
22R..RN3#,4# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-03103 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
22R..RN34,44 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||

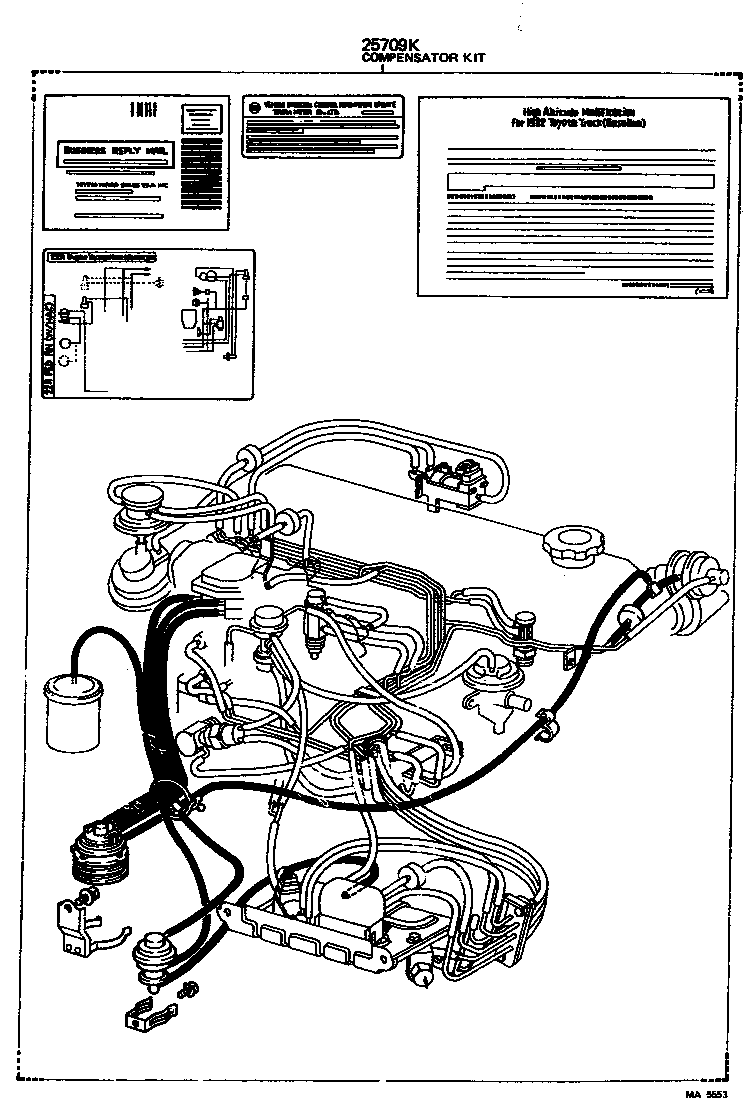

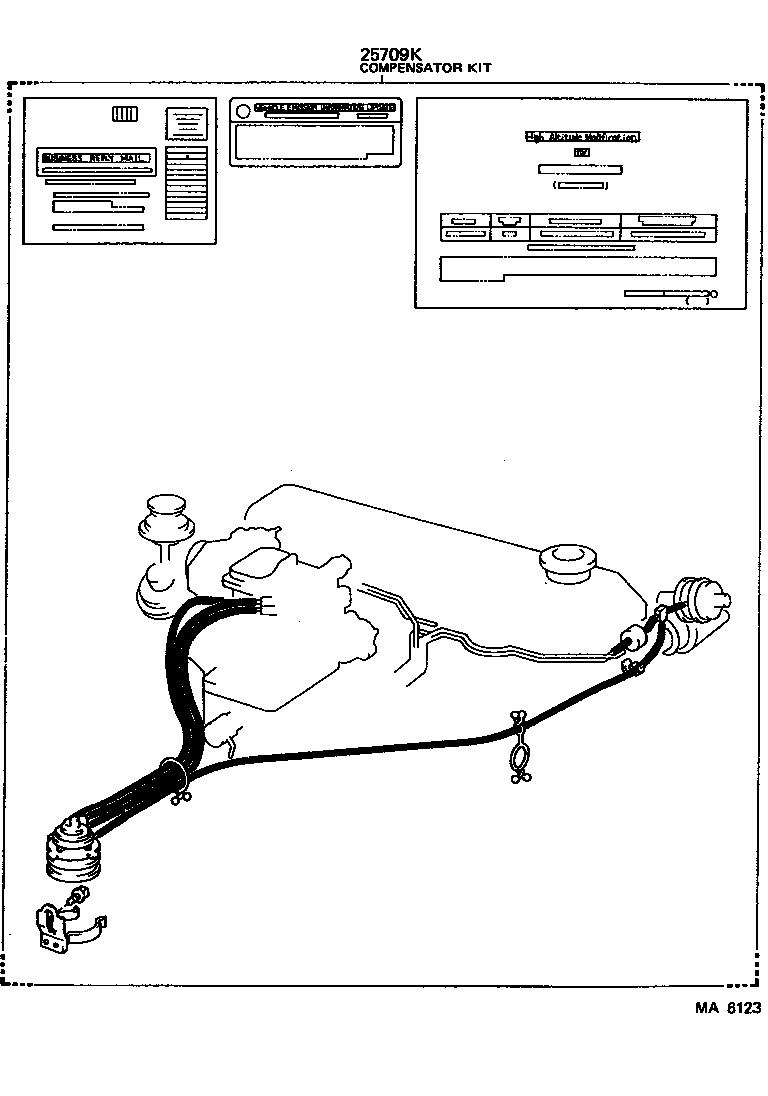

| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-38010 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE) | ||||
| 90462-10063 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 90462-10055 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 90461-12174 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| Common parts | ||||
| 35411-19930 | ||||
| 90413-04004 | ||||
| 90413-04008 | ||||
| 90463-12002 | ||||
| 90464-00076 | ||||
| 90464-00102 | ||||
| 90464-00215 | ||||
| 91651-40612 | ||||
| 94180-40500 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10760 | ||||
| 95411-10860 | ||||
| 95411-10960 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95413-10330 | ||||
| Linked diagrams | ||||
| 2103 | ||||

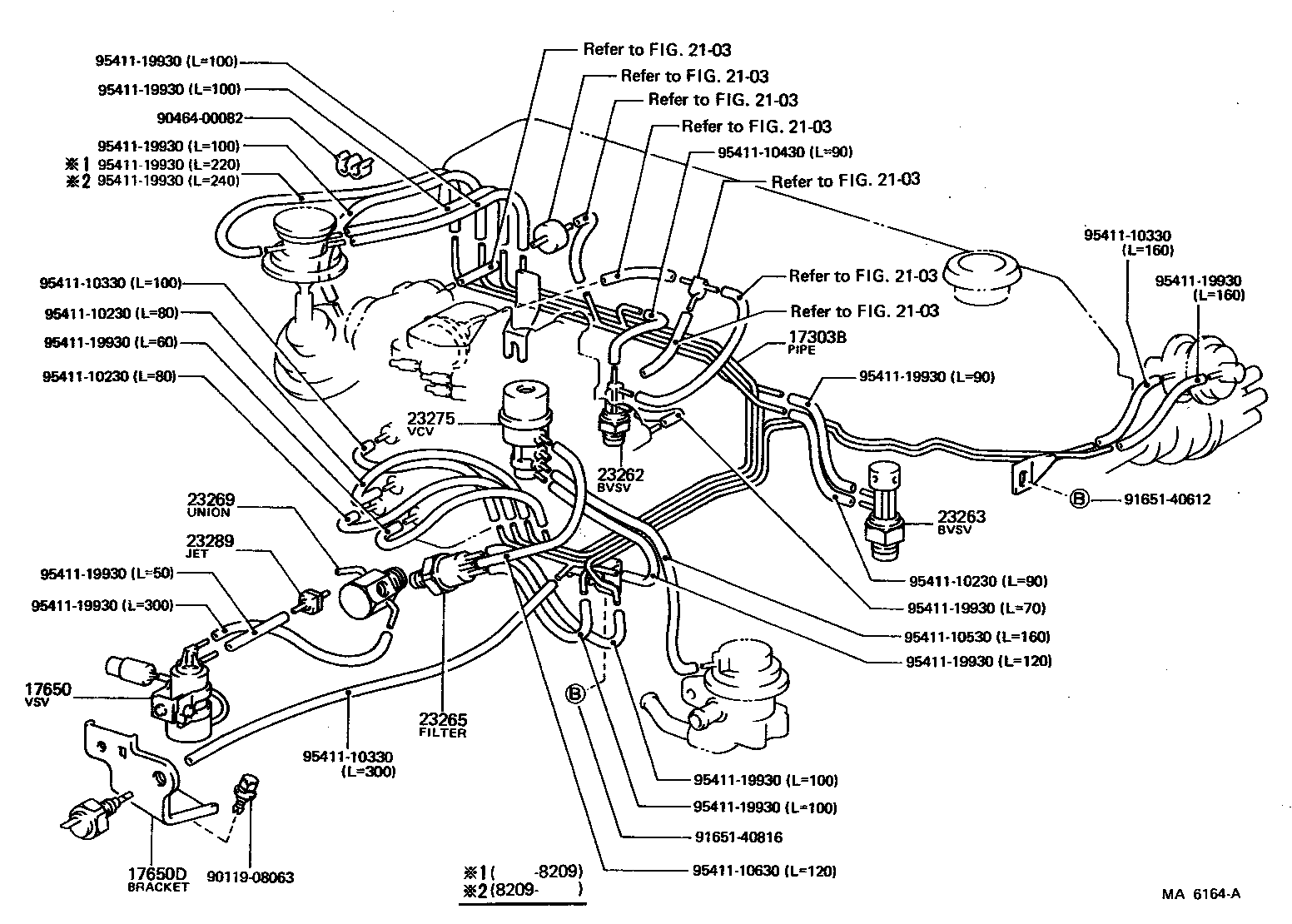

(8008-8104)22R..RN34,44..3QT,HLF..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17304-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17304-35030 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25707-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25707-35060 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05035 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
2 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02068 |
22R..RN3#,4# |
1 | ||
| 90925-02069 |
22R..RN3#,4# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-03103 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
22R..RN34,44 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04013 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04028 |
22R..RN34,44 |
1 | ||
| 90925-04019 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90413-04008 | ||||
| 90463-12002 | ||||
| 90464-00076 | ||||
| 91651-40612 | ||||
| 94180-40500 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10630 | ||||
| 95411-10660 | ||||
| 95411-10730 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8104-8108)22R..3QT,HLF..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17304-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17304-35030 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25707-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25707-35060 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17304-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17304-35030 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25707-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25707-35060 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02068 |
22R..RN3#,4# |
1 | ||
| 90925-02069 |
22R..RN3#,4# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-03103 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
22R..RN34,44 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-38010 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE) | ||||
| 90462-10063 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 90462-10055 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 90461-12174 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90413-04004 | ||||
| 90413-04008 | ||||
| 90463-12002 | ||||
| 90464-00076 | ||||
| 90464-00102 | ||||
| 90464-00215 | ||||
| 91651-40612 | ||||
| 94180-40500 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10760 | ||||
| 95411-10860 | ||||
| 95411-10960 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95413-10330 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8104-8108)22R..RN34,44..3QT,HLF..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17304-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17304-35030 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25707-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25707-35060 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05035 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
2 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02068 |
22R..RN3#,4# |
1 | ||
| 90925-02069 |
22R..RN3#,4# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-03103 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
22R..RN34,44 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04013 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04028 |
22R..RN34,44 |
1 | ||
| 90925-04019 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90413-04008 | ||||
| 90463-12002 | ||||
| 90464-00076 | ||||
| 90464-00232 | ||||
| 91651-40612 | ||||
| 94180-40500 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10630 | ||||
| 95411-10660 | ||||
| 95411-10730 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8108-8208)22R..RN38,48..USA ; (8108-8208)22R..RN34,44..MTM..3QT,HLF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17304-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17304-35030 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25707-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25707-35060 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02068 |
22R..RN3#,4# |
1 | ||
| 90925-02069 |
22R..RN3#,4# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-03103 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03125 |
22R..RN34,44..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
22R..RN34,44 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-38010 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE) | ||||
| 90462-10063 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 90462-10055 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 90461-12174 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 90461-08479 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90463-12002 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 90464-00108 | ||||
| 90929-01015 | ||||
| 91611-40610 | ||||
| 91611-40616 | ||||
| 91651-40612 | ||||
| 94180-40500 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10760 | ||||
| 95411-10860 | ||||
| 95411-10960 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
| 7751 | ||||
(8108-8208)22R..RN34,44..3QT,HLF..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17304-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17304-35030 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25707-35040 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25707-35060 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05035 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
2 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02068 |
22R..RN3#,4# |
1 | ||
| 90925-02069 |
22R..RN3#,4# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-03103 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
22R..RN34,44 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04013 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04028 |
22R..RN34,44 |
1 | ||
| 90925-04019 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25760-35030 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03005 | ||||
| 90413-04008 | ||||
| 90463-12002 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00232 | ||||
| 90929-01015 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 94180-40500 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10630 | ||||
| 95411-10660 | ||||
| 95411-10760 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
| 7751 | ||||
(8108-8208)22R..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25709K - COMPENSATOR KIT, HIGH ALTITUDE | ||||
| 04215-35040 |
22R..RN34,44..USA |
1 | ||
| 04215-35060 |
22R..RN3#,4#..USA |
1 | ||
(8208- )22R..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25709K - COMPENSATOR KIT, HIGH ALTITUDE | ||||
| 04215-35040 |
22R..RN34,44..USA |
1 | ||
| 04215-35060 |
22R..RN3#,4#..USA |
1 | ||
(8208- )22R..RN38,48..USA ; (8208- )22R..RN34,44..3QT,HLF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05035 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
2 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-03103 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04028 |
22R..RN34,44 |
1 | ||
| 90925-04019 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90464-00082 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||

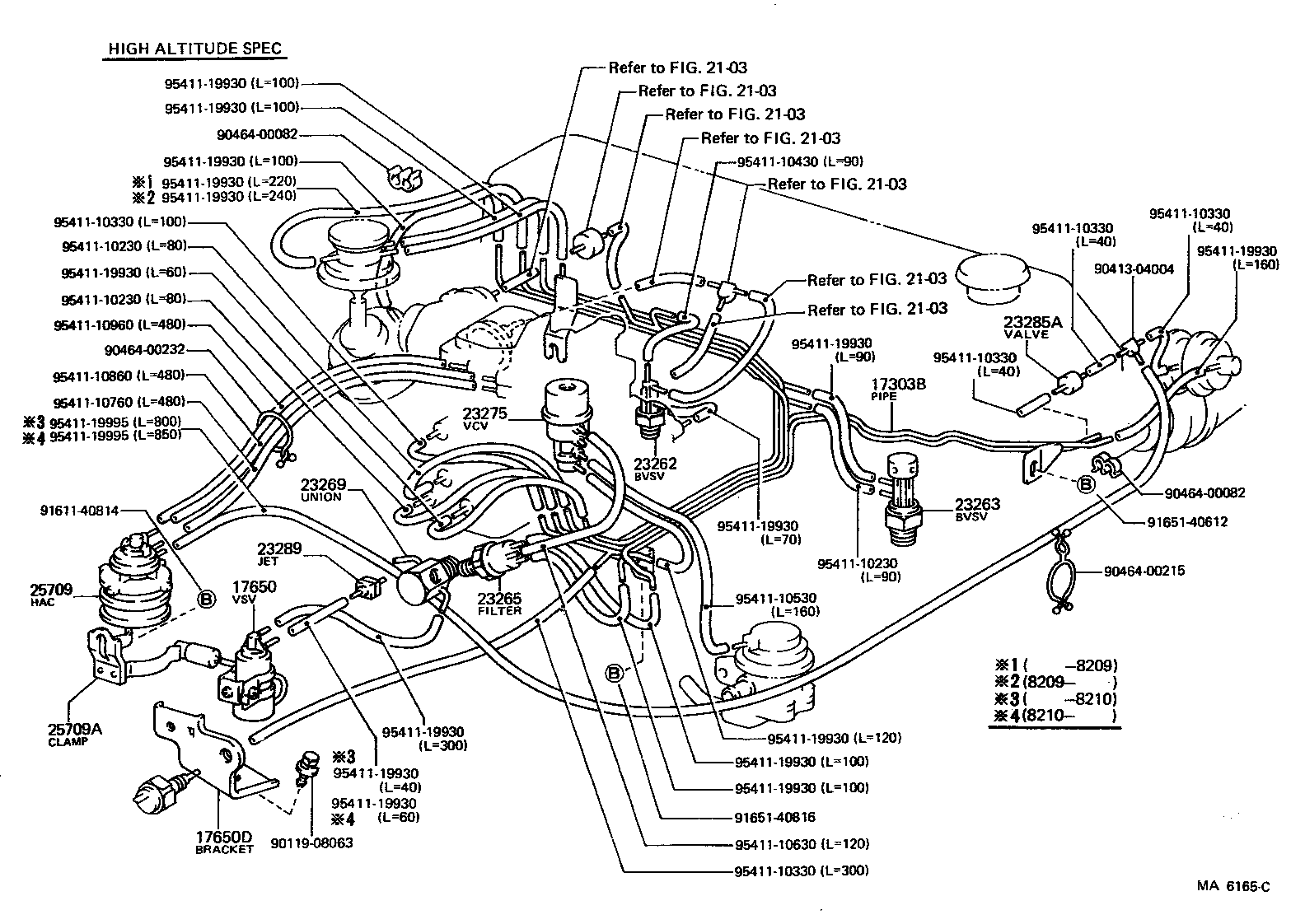

(8208- )22R..3QT,HLF..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05035 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
2 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03104 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-03103 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
22R..RN3#,4#..(3QT,HLF)..USA |
2 | ||
| 90917-10049 |
22R..RN3#,4#..USA |
2 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04028 |
22R..RN34,44 |
1 | ||
| 90925-04019 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-38010 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE) | ||||
| 90462-10063 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 90462-10055 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| 90461-12174 |
22R..RN3#,4#..(3QT,HLF)..USA HIGH ALTITUDE SPEC |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90413-04004 | ||||
| 90464-00082 | ||||
| 90464-00215 | ||||
| 90464-00232 | ||||
| 91611-40814 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10760 | ||||
| 95411-10860 | ||||
| 95411-10960 | ||||
| 95411-19930 | ||||
| 95411-19995 | ||||
| 96411-10330 | ||||
| Linked diagrams | ||||
| 2103 | ||||

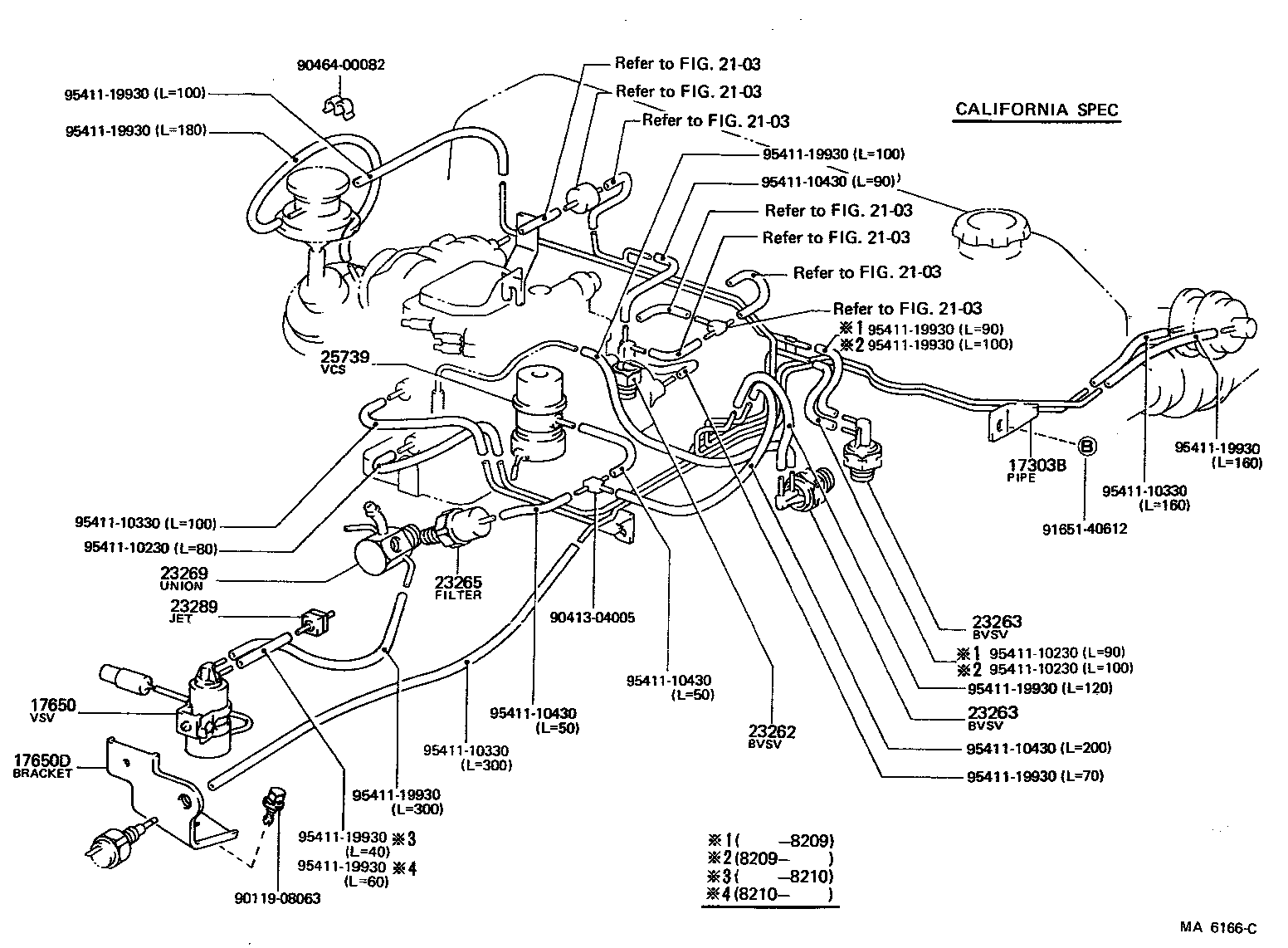

(8208- )22R..3QT,HLF..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35150 |
22R..RN34,44..3QT,HLF |
1 | ||
| 17303-35020 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35110 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35121 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35120 |
22R..RN34,44..MTM..(3QT,HLF) |
1 | ||
| 17303-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17303-35140 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-20160 |
22R..RN3#,4#..(3QT,HLF)..USA AI,CALIFORNIA SPEC |
1 | ||
| 89570-20150 |
22R..RN34,44..3QT,HLF AI&EVAPO |
1 | ||
| 89570-14060 |
22R..RN34,44..3QT,HLF |
1 | ||
| 89570-60060 |
22R..RN34,44..MTM..(3QT,HLF) EGR |
1 | ||
| 89570-35150 |
22R..RN34,44 AI&EVAPO |
1 | ||
| 89570-35160 |
22R..RN34,44 EVAPO |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 89579-35041 |
22R..RN34,44 |
1 | ||
| 89579-35050 |
22R..RN34,44 |
1 | ||
| 89579-35040 |
22R..RN34,44 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
22R..RN3#,4# |
1 | ||
| 90925-05035 |
22R..RN34,44..3QT,HLF |
1 | ||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05017 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05035 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
2 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90925-05035 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
2 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90917-11022 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 90917-11024 |
22R..RN34,44..3QT,HLF |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54018 |
22R..RN34,44..3QT,HLF |
1 | ||
| 90404-54017 |
22R..RN3#,4#..MTM..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04028 |
22R..RN34,44 |
1 | ||
| 90925-04019 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| 25739 - SWITCH, VACUUM CONTROL | ||||
| 25739-35010 |
22R..RN3#,4#..(3QT,HLF)..USA CALIFORNIA SPEC |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 91651-40612 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
