RN34L-MSA (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8101- )L

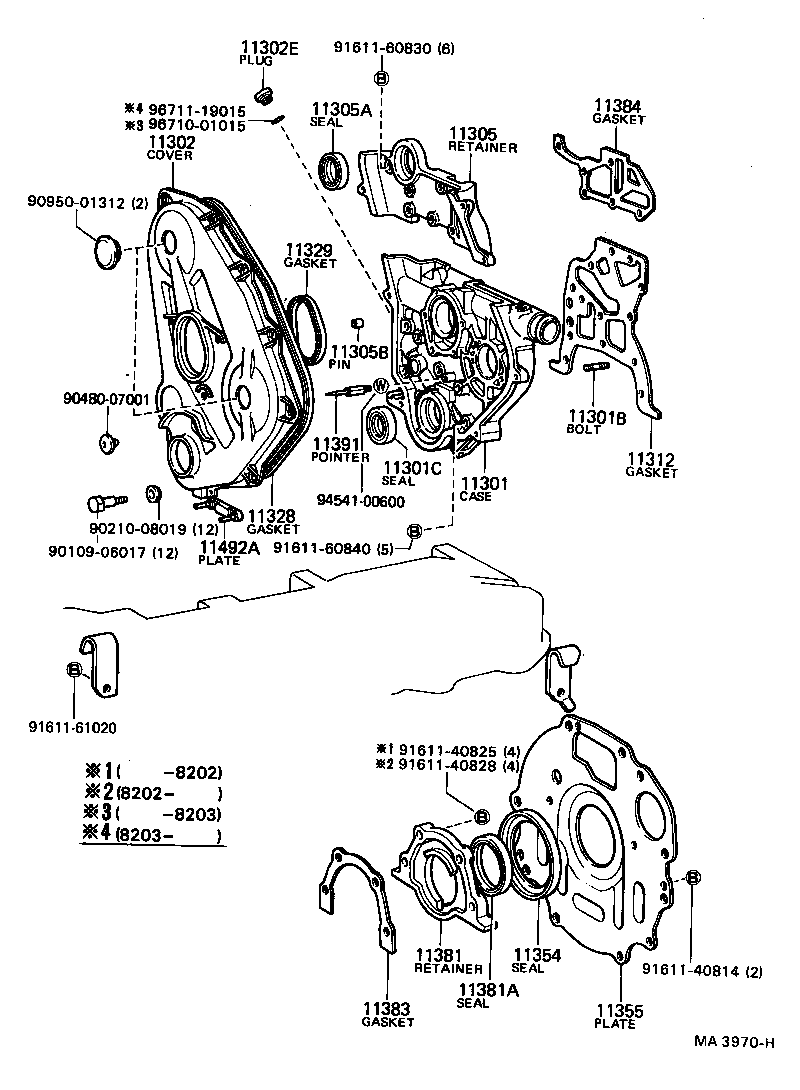

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305 11305A 11305B 11312 11328 11329 11354 11355 11381 11381A 11383 11384 11391 11492A 9010906017 9021008019 9048007001 9095001312 9161140814 9161140825 9161140828 9161160830 9161160840 9161161020 9454100600 9671001015 9671119015
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-38010

20R,22R..RN3#,4#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-35010

22R..RN3#,4#

 1
11328-38020

20R,22R..RN3#,4#

 1
11355 - PLATE, REAR END
11355-38011

20R,22R..RN3#,4#..MTM

 1
11355-35010

22R..RN3#,4#..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38010

20R,22R..RN3#,4#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

20R,22R..RN3#,4#

HTC 80 100 12

 1
90311-80004

22R..RN3#,4#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

20R,22R..RN3#,4#

 1
11383-35010

22R..RN3#,4#

 1
Common parts
90109-06017
90210-08019
90480-07001
90950-01312
91611-40814
91611-40825
91611-40828
91611-60830
91611-60840
91611-61020
94541-00600
96710-01015
96711-19015
