RN34L-KRA3 (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

Click highlighted areas on diagram

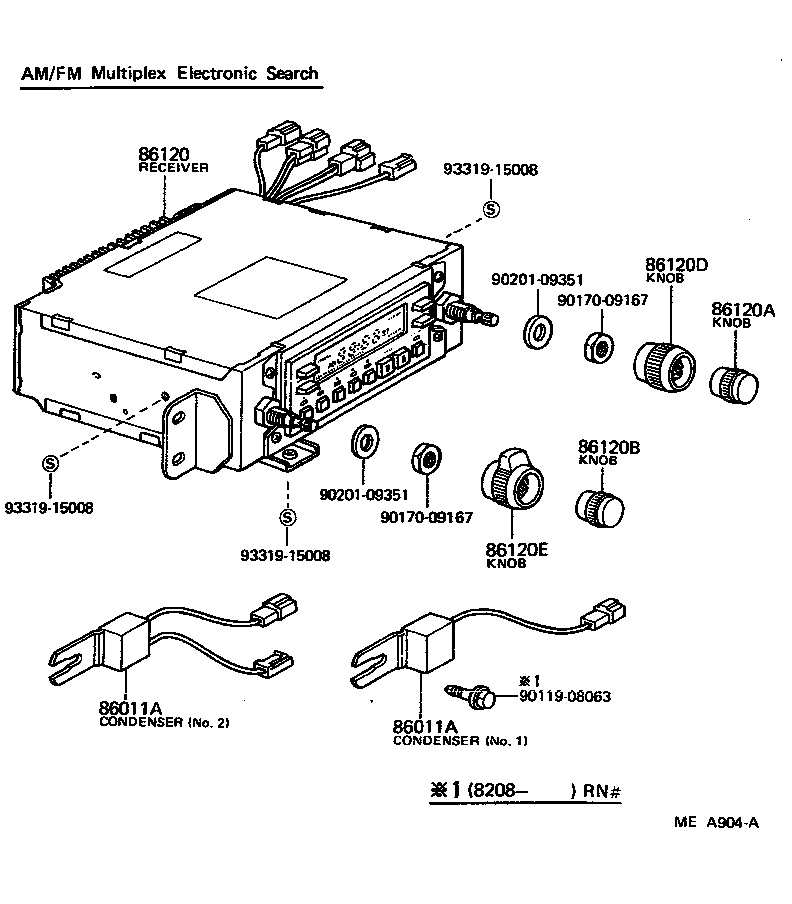

diagram 86011A 86011A 86120 86120A 86120B 86120D 86120E 9011908063 9017009167 9017009167 9020109351 9020109351 9331915008 9331915008 9331915008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN40,RN3#,4#

NO.1

 2
90980-04038

RN3#,4#

NO.2

 1
90980-04040

LN40,RN3#,4#

NO.1

 2
86011A - CONDENSER, RADIO SETTING
90980-04029

RN3#,4#

NO.2

 1
90980-04011

LN40,RN3#,4#

NO.1

 2
90980-04038

RN3#,4#

NO.2

 1
90980-04040

LN40,RN3#,4#

NO.1

 2
86120 - RECEIVER ASSY, RADIO
86120-95A00

LN40,RN3#,4#..DLX,STD

AM

 1
86120-90A00

LN40,RN3#,4#..DLX,STD

AM

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86125-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86125-89101

LN40,RN3#,4#

AM,AM/FM MULTI

 1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86125-89101

LN40,RN3#,4#

AM,AM/FM MULTI

 1
86125-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86120D - KNOB, RADIO RECEIVER TONE
86124-95A00

LN40,RN3#,4#

MATSUSHITA

 1
86124-89104

LN40,RN3#,4#

AM,AM/FM MULTI

 1
Common parts
90119-08063
90170-09167
90201-09351
93319-15008
