RN34L-KRA3 (1980)
Toyota Pickup

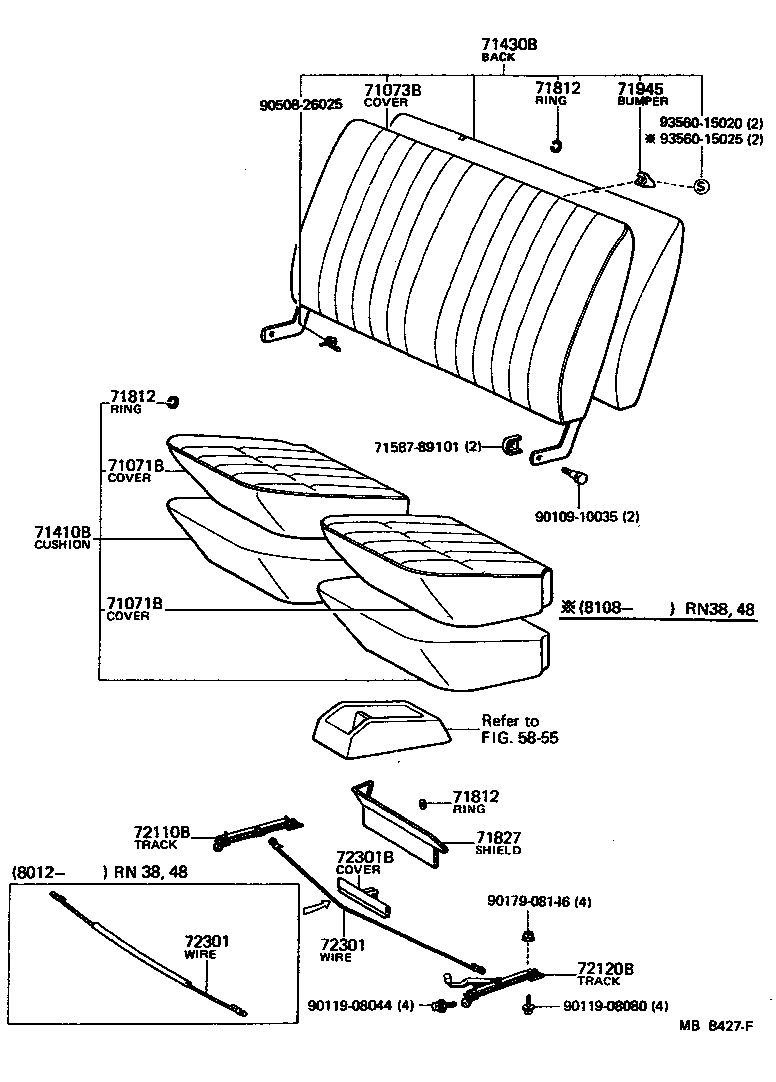

(8008-8108)DLX,STD ; (8008-8108)4FC..SR5 ; (8108-8205)STD..HVY ; (8108-8205)DLX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-8916805 |
RN34,44..STD PF,RH,BEIGE,BEIGE |
1 | ||
| 71071-8916801 |
RN34,44..STD PF,RH,BLACK,BLACK |
1 | ||
| 71071-8916804 |
RN34,44..STD PF,RH,BLUE,BLUE |
1 | ||
| 71072-8910305 |
RN34,44..STD PF,LH,BEIGE,BEIGE |
1 | ||
| 71071-8918004 |
RN34,44..STD GARNET,RH,BLUE,BLUE |
1 | ||
| 71072-8910304 |
RN34,44..STD PF,LH,BLUE,BLUE |
1 | ||
| 71072-8910301 |
RN34,44..STD PF,LH,BLACK,BLACK |
1 | ||
| 71071-8918005 |
RN34,44..STD GARNET,RH,BEIGE,BEIGE |
1 | ||
| 71072-8910601 |
RN34,44..STD GARNET,LH,BLACK,BLACK |
1 | ||
| 71072-8910604 |
RN34,44..STD GARNET,LH,BLUE,BLUE |
1 | ||
| 71072-8910801 |
RN34,44..STD GARNET,LH,BLACK,BLACK |
1 | ||
| 71071-8918001 |
RN34,44..STD GARNET,RH,BLACK,BLACK |
1 | ||
| 71071-8919105 |
RN34,44..STD GARNET,RH,BEIGE,BEIGE |
1 | ||
| 71071-8919101 |
RN34,44..STD GARNET,RH,BLACK,BLACK |
1 | ||
| 71072-8910805 |
RN34,44..STD GARNET,LH,BEIGE,BEIGE |
1 | ||
| 71072-8910804 |
RN34,44..STD GARNET,LH,BLUE,BLUE |
1 | ||
| 71071-8919705 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71071-8919104 |
RN34,44..STD GARNET,RH,BLUE,BLUE |
1 | ||
| 71071-8919701 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71072-8910605 |
RN34,44..STD GARNET,LH,BEIGE,BEIGE |
1 | ||
| 71071-8919704 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-8916805 |
RN34,44..STD PF,RH,BEIGE,BEIGE |
1 | ||
| 71071-8916801 |
RN34,44..STD PF,RH,BLACK,BLACK |
1 | ||
| 71071-8916804 |
RN34,44..STD PF,RH,BLUE,BLUE |
1 | ||
| 71072-8910305 |
RN34,44..STD PF,LH,BEIGE,BEIGE |
1 | ||
| 71071-8918004 |
RN34,44..STD GARNET,RH,BLUE,BLUE |
1 | ||
| 71072-8910304 |
RN34,44..STD PF,LH,BLUE,BLUE |
1 | ||
| 71072-8910301 |
RN34,44..STD PF,LH,BLACK,BLACK |
1 | ||
| 71071-8918005 |
RN34,44..STD GARNET,RH,BEIGE,BEIGE |
1 | ||
| 71072-8910601 |
RN34,44..STD GARNET,LH,BLACK,BLACK |
1 | ||
| 71072-8910604 |
RN34,44..STD GARNET,LH,BLUE,BLUE |
1 | ||
| 71072-8910801 |
RN34,44..STD GARNET,LH,BLACK,BLACK |
1 | ||
| 71071-8918001 |
RN34,44..STD GARNET,RH,BLACK,BLACK |
1 | ||
| 71071-8919105 |
RN34,44..STD GARNET,RH,BEIGE,BEIGE |
1 | ||
| 71071-8919101 |
RN34,44..STD GARNET,RH,BLACK,BLACK |
1 | ||
| 71072-8910805 |
RN34,44..STD GARNET,LH,BEIGE,BEIGE |
1 | ||
| 71072-8910804 |
RN34,44..STD GARNET,LH,BLUE,BLUE |
1 | ||
| 71071-8919705 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71071-8919104 |
RN34,44..STD GARNET,RH,BLUE,BLUE |
1 | ||
| 71071-8919701 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71072-8910605 |
RN34,44..STD GARNET,LH,BEIGE,BEIGE |
1 | ||
| 71071-8919704 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-8918601 |
RN34,44..STD PF,BLACK,BLACK |
1 | ||
| 71073-8918605 |
RN34,44..STD PF,BEIGE,BEIGE |
1 | ||
| 71073-8919701 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71073-8919705 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71073-8918604 |
RN34,44..STD PF,BLUE,BLUE |
1 | ||
| 71073-8919704 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71073-8920801 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71073-8920805 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71073-8921401 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71073-8921404 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71073-8920804 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71073-8921405 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-8914801 |
RN34,44..STD PF,BLACK,BLACK |
1 | ||
| 71410-8914804 |
RN34,44..STD PF,BLUE,BLUE |
1 | ||
| 71410-8914805 |
RN34,44..STD PF,BEIGE,BEIGE |
1 | ||
| 71410-8915805 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71410-8917404 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71410-8915801 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71410-8915804 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71410-8917401 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71410-8916405 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71410-8917405 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71410-8916401 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71410-8916404 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-8914704 |
RN34,44..STD PF,BLUE,BLUE |
1 | ||
| 71430-8914705 |
RN34,44..STD PF,BEIGE,BEIGE |
1 | ||
| 71430-8915601 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71430-8914701 |
RN34,44..STD PF,BLACK,BLACK |
1 | ||
| 71430-8915604 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71430-8915605 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71430-8917305 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71430-8917301 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71430-8917304 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71430-8916405 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71430-8916401 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71430-8916404 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RN44..4FC..SR5;LN40,RN3#,4#..DLX,STD |
1 | ||
| 90468-18071 |
LN40,RN3#,4# |
1 | ||
| 90468-18071 |
LN40,RN3#,4#..DLX,STD |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RN44..4FC..SR5;LN40,RN3#,4#..DLX,STD |
1 | ||
| 90468-18071 |
LN40,RN3#,4# |
1 | ||
| 90468-18071 |
LN40,RN3#,4#..DLX,STD |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RN44..4FC..SR5;LN40,RN3#,4#..DLX,STD |
1 | ||
| 90468-18071 |
LN40,RN3#,4# |
1 | ||
| 90468-18071 |
LN40,RN3#,4#..DLX,STD |
1 | ||
| 71827 - SHIELD, FRONT SEAT CUSHION | ||||
| 71811-8910201 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD RH,BLACK,BLACK |
1 | ||
| 71812-8910101 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD LH,BLACK,BLACK |
1 | ||
| 71811-8910205 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD RH,BEIGE,BEIGE |
1 | ||
| 71811-8910204 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD RH,BLUE,BLUE |
1 | ||
| 71812-8910104 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD LH,BLUE,BLUE |
1 | ||
| 71812-8910105 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD LH,BEIGE,BEIGE |
1 | ||
| 71811-8910204 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) RH,BLUE,BLUE |
1 | ||
| 71811-8910206 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) RH,BROWN,BROWN |
1 | ||
| 71811-8910201 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) RH,BLACK,BLACK |
1 | ||
| 71812-8910101 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) LH,BLACK,BLACK |
1 | ||
| 71812-8910106 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) LH,BROWN,BROWN |
1 | ||
| 71812-8910104 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) LH,BLUE,BLUE |
1 | ||
| 71945 - BUMPER, SEAT BACK | ||||
| 71739-89101 |
LN40,RN34,44 |
2 | ||
| 71739-89103 |
RN3#,42 |
2 | ||
| 71739-89101 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
2 | ||
| 72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT) | ||||
| 72110-89132 |
RN44..4FC..SR5;LN40,RN32,34,42,44..DLX,STD |
1 | ||
| 72110-89132 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| 72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT) | ||||
| 72120-89134 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| 72120-89134 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-89104 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD |
1 | ||
| 72301-89104 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-89104 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD |
1 | ||
| 72301-89104 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| 72301B - COVER, SEAT TRACK | ||||
| 72137-89101 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD |
1 | ||
| 72137-89101 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| Common parts | ||||
| 71587-89101 | ||||
| 90109-10035 | ||||
| 90119-08044 | ||||
| 90119-08080 | ||||
| 90179-08146 | ||||
| 90508-26025 | ||||
| 93560-15020 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 5855 | ||||

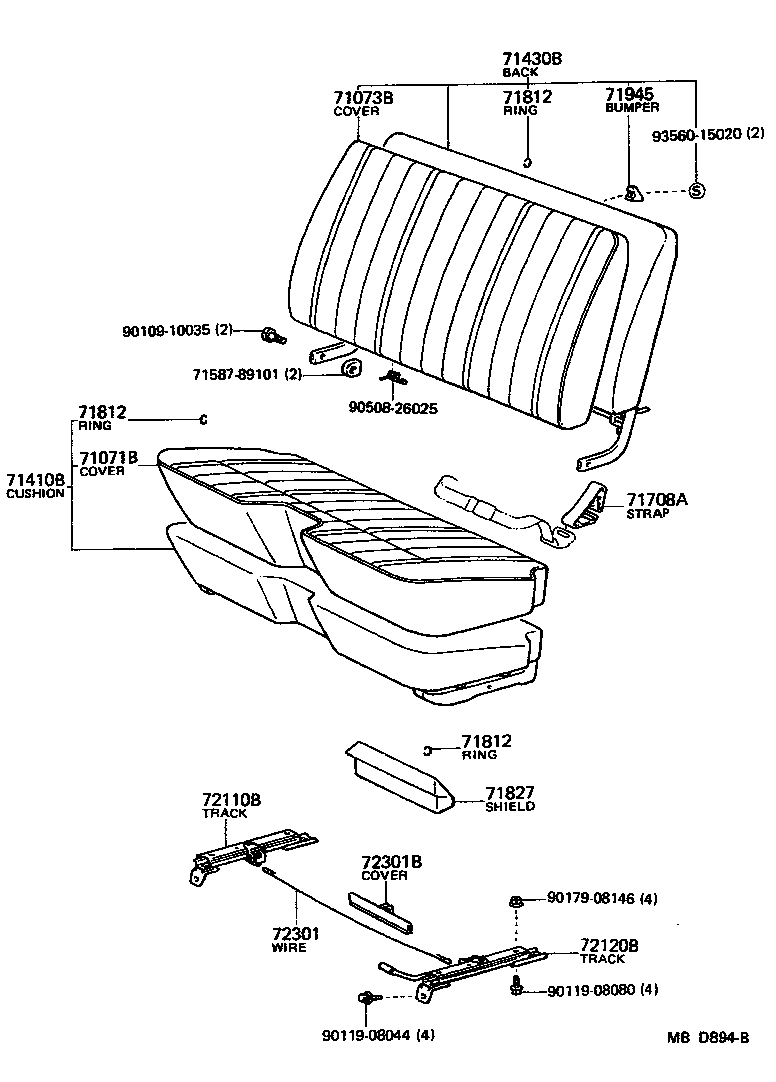

(8205- )STD..HVY ; (8205- )LN40,RN34,44..DLX,STD..3QT,HLF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-8916805 |
RN34,44..STD PF,RH,BEIGE,BEIGE |
1 | ||
| 71071-8916801 |
RN34,44..STD PF,RH,BLACK,BLACK |
1 | ||
| 71071-8916804 |
RN34,44..STD PF,RH,BLUE,BLUE |
1 | ||
| 71072-8910305 |
RN34,44..STD PF,LH,BEIGE,BEIGE |
1 | ||
| 71071-8918004 |
RN34,44..STD GARNET,RH,BLUE,BLUE |
1 | ||
| 71072-8910304 |
RN34,44..STD PF,LH,BLUE,BLUE |
1 | ||
| 71072-8910301 |
RN34,44..STD PF,LH,BLACK,BLACK |
1 | ||
| 71071-8918005 |
RN34,44..STD GARNET,RH,BEIGE,BEIGE |
1 | ||
| 71072-8910601 |
RN34,44..STD GARNET,LH,BLACK,BLACK |
1 | ||
| 71072-8910604 |
RN34,44..STD GARNET,LH,BLUE,BLUE |
1 | ||
| 71072-8910801 |
RN34,44..STD GARNET,LH,BLACK,BLACK |
1 | ||
| 71071-8918001 |
RN34,44..STD GARNET,RH,BLACK,BLACK |
1 | ||
| 71071-8919105 |
RN34,44..STD GARNET,RH,BEIGE,BEIGE |
1 | ||
| 71071-8919101 |
RN34,44..STD GARNET,RH,BLACK,BLACK |
1 | ||
| 71072-8910805 |
RN34,44..STD GARNET,LH,BEIGE,BEIGE |
1 | ||
| 71072-8910804 |
RN34,44..STD GARNET,LH,BLUE,BLUE |
1 | ||
| 71071-8919705 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71071-8919104 |
RN34,44..STD GARNET,RH,BLUE,BLUE |
1 | ||
| 71071-8919701 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71072-8910605 |
RN34,44..STD GARNET,LH,BEIGE,BEIGE |
1 | ||
| 71071-8919704 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-8918601 |
RN34,44..STD PF,BLACK,BLACK |
1 | ||
| 71073-8918605 |
RN34,44..STD PF,BEIGE,BEIGE |
1 | ||
| 71073-8919701 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71073-8919705 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71073-8918604 |
RN34,44..STD PF,BLUE,BLUE |
1 | ||
| 71073-8919704 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71073-8920801 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71073-8920805 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71073-8921401 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71073-8921404 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71073-8920804 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71073-8921405 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-8914801 |
RN34,44..STD PF,BLACK,BLACK |
1 | ||
| 71410-8914804 |
RN34,44..STD PF,BLUE,BLUE |
1 | ||
| 71410-8914805 |
RN34,44..STD PF,BEIGE,BEIGE |
1 | ||
| 71410-8915805 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71410-8917404 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71410-8915801 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71410-8915804 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71410-8917401 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71410-8916405 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71410-8917405 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71410-8916401 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71410-8916404 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-8914704 |
RN34,44..STD PF,BLUE,BLUE |
1 | ||
| 71430-8914705 |
RN34,44..STD PF,BEIGE,BEIGE |
1 | ||
| 71430-8915601 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71430-8914701 |
RN34,44..STD PF,BLACK,BLACK |
1 | ||
| 71430-8915604 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71430-8915605 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71430-8917305 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71430-8917301 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71430-8917304 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71430-8916405 |
RN34,44..STD GARNET,BEIGE,BEIGE |
1 | ||
| 71430-8916401 |
RN34,44..STD GARNET,BLACK,BLACK |
1 | ||
| 71430-8916404 |
RN34,44..STD GARNET,BLUE,BLUE |
1 | ||
| 71708A - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-89101 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RN44..4FC..SR5;LN40,RN3#,4#..DLX,STD |
1 | ||
| 90468-18071 |
LN40,RN3#,4# |
1 | ||
| 90468-18071 |
LN40,RN3#,4#..DLX,STD |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RN44..4FC..SR5;LN40,RN3#,4#..DLX,STD |
1 | ||
| 90468-18071 |
LN40,RN3#,4# |
1 | ||
| 90468-18071 |
LN40,RN3#,4#..DLX,STD |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
RN44..4FC..SR5;LN40,RN3#,4#..DLX,STD |
1 | ||
| 90468-18071 |
LN40,RN3#,4# |
1 | ||
| 90468-18071 |
LN40,RN3#,4#..DLX,STD |
1 | ||
| 71827 - SHIELD, FRONT SEAT CUSHION | ||||
| 71811-8910201 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD RH,BLACK,BLACK |
1 | ||
| 71812-8910101 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD LH,BLACK,BLACK |
1 | ||
| 71811-8910205 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD RH,BEIGE,BEIGE |
1 | ||
| 71811-8910204 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD RH,BLUE,BLUE |
1 | ||
| 71812-8910104 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD LH,BLUE,BLUE |
1 | ||
| 71812-8910105 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD LH,BEIGE,BEIGE |
1 | ||
| 71811-8910204 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) RH,BLUE,BLUE |
1 | ||
| 71811-8910206 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) RH,BROWN,BROWN |
1 | ||
| 71811-8910201 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) RH,BLACK,BLACK |
1 | ||
| 71812-8910101 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) LH,BLACK,BLACK |
1 | ||
| 71812-8910106 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) LH,BROWN,BROWN |
1 | ||
| 71812-8910104 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) LH,BLUE,BLUE |
1 | ||
| 71945 - BUMPER, SEAT BACK | ||||
| 71739-89101 |
LN40,RN34,44 |
2 | ||
| 71739-89103 |
RN3#,42 |
2 | ||
| 71739-89101 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
2 | ||
| 72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT) | ||||
| 72110-89132 |
RN44..4FC..SR5;LN40,RN32,34,42,44..DLX,STD |
1 | ||
| 72110-89132 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| 72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT) | ||||
| 72120-89134 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| 72120-89134 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-89104 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD |
1 | ||
| 72301-89104 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| 72301B - COVER, SEAT TRACK | ||||
| 72137-89101 |
RN44..4FC..SR5;LN40,RN34,44..DLX,STD |
1 | ||
| 72137-89101 |
LN40,RN34,44..(DLX,STD)..(3QT,HLF) |
1 | ||
| Common parts | ||||
| 71587-89101 | ||||
| 90109-10035 | ||||
| 90119-08044 | ||||
| 90119-08080 | ||||
| 90179-08146 | ||||
| 90508-26025 | ||||
| 93560-15020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
