RN34L-KRA (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8208)22R..RN38,48..USA ; (8008-8208)22R..RN34,44..3QT,HLF

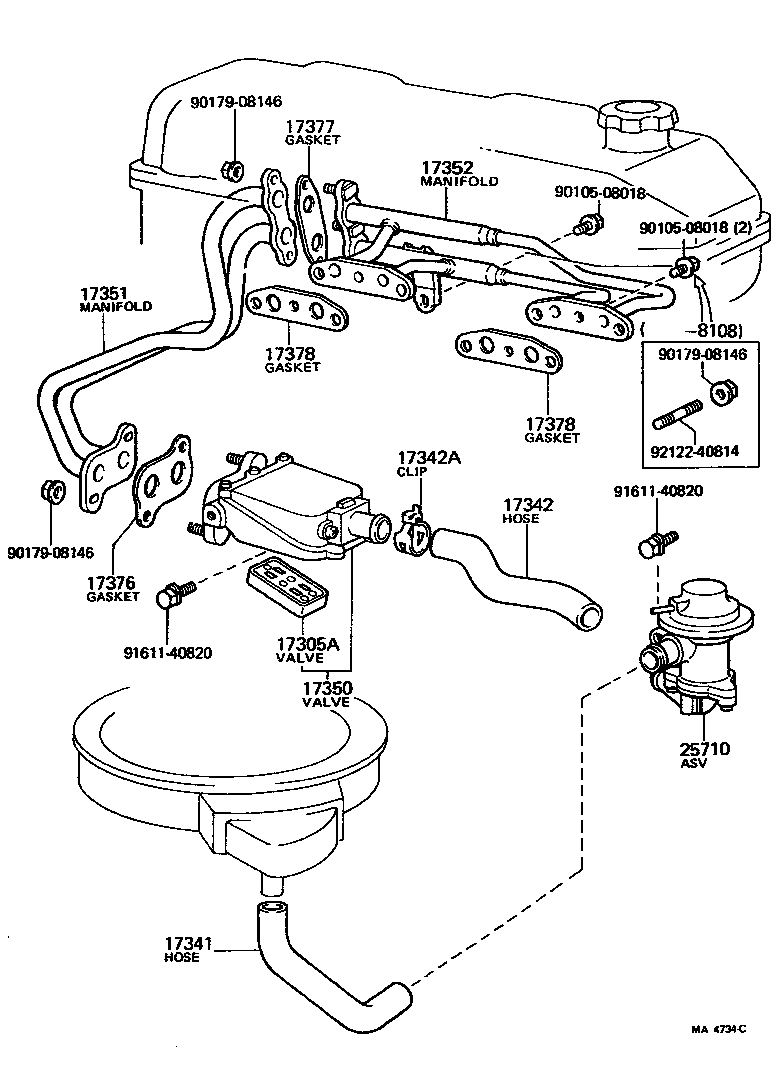

Click highlighted areas on diagram

diagram 17305A 17341 17342 17342A 17350 17351 17352 17376 17377 17378 17378 25710 9010508018 9010508018 9017908146 9017908146 9017908146 9161140820 9161140820 9212240814
Part # Description Qty Price
17305A - VALVE SUB-ASSY, REED
17305-37010

22R..RN34,44..3QT,HLF

 2
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17341-35020

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17341-35021

22R..RN34,44..3QT,HLF

 1
17341-35011

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17341-35020

22R..RN34,44..3QT,HLF

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35020

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17342-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342-35020

22R..RN34,44..3QT,HLF

 1
17342-35030

22R..RN34,44..3QT,HLF

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
90467-26001

22R..RN34,44..3QT,HLF

 2
90467-31002

22R..RN34,44..3QT,HLF

 1
90467-31002

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17350 - VALVE ASSY, REED
17350-37010

22R..RN34,44..3QT,HLF

 1
17350-35020

22R..RN34,44..3QT,HLF

 1
17351 - MANIFOLD, AIR INJECTION
17351-35020

22R..RN34,44..3QT,HLF

 1
17351-35010

22R..RN34,44..3QT,HLF

 1
17352 - MANIFOLD, AIR INJECTION, NO.2
17352-35010

22R..RN34,44..3QT,HLF

 1
17352-35040

22R..RN34,44..3QT,HLF

 1
17376 - GASKET, AIR TUBE, NO.1
17376-37010

22R..RN34,44..3QT,HLF

 1
17376-35010

22R..RN34,44..3QT,HLF

 1
17377 - GASKET, AIR TUBE, NO.2
17377-35010

22R..RN34,44..3QT,HLF

 1
17378 - GASKET AIR TUBE, NO.3
17378-37010

22R..RN34,44..3QT,HLF

 2
17378 - GASKET AIR TUBE, NO.3
17378-37010

22R..RN34,44..3QT,HLF

 2
25710 - VALVE ASSY, AIR SWITCHING
25710-35020

22R..RN34,44..3QT,HLF

 1
Common parts
90105-08018
90179-08146
91611-40820
92122-40814

(8008-8208)22R..USA ; (8008-8208)22R..RN44..CND..IV

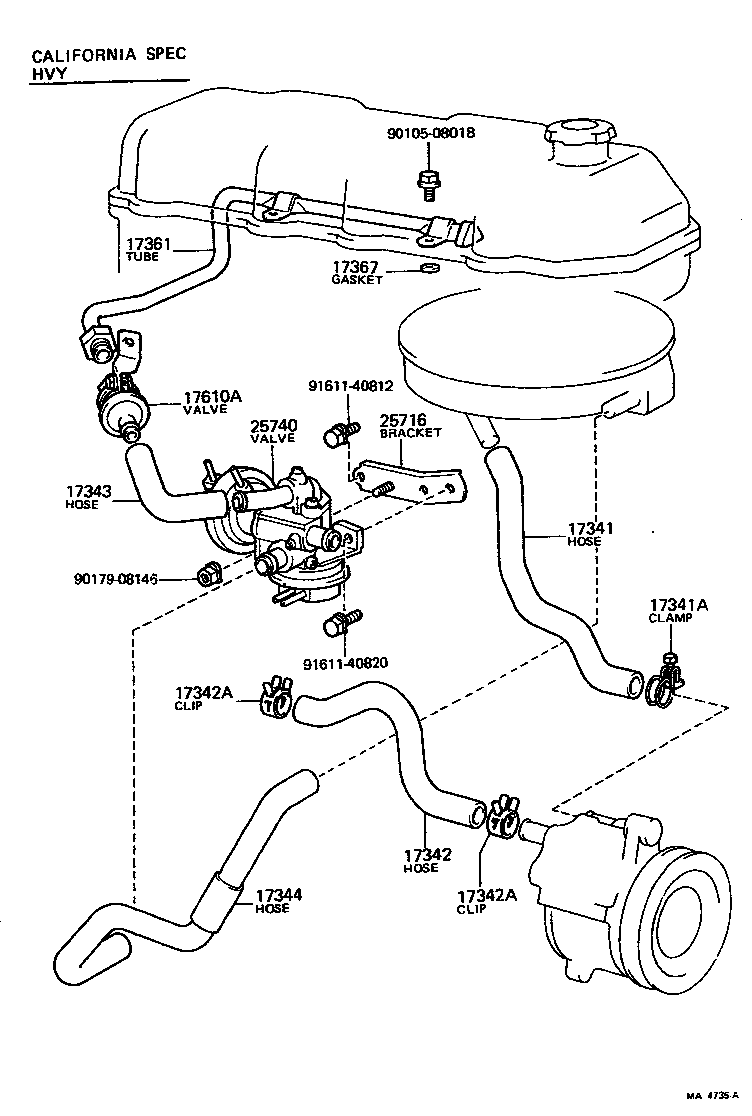

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17344 17361 17367 17610A 25716 25740 9010508018 9017908146 9161140812 9161140820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17341-35020

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17341-35021

22R..RN34,44..3QT,HLF

 1
17341-35011

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17341-35020

22R..RN34,44..3QT,HLF

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35020

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17342-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342-35020

22R..RN34,44..3QT,HLF

 1
17342-35030

22R..RN34,44..3QT,HLF

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
90467-26001

22R..RN34,44..3QT,HLF

 2
90467-31002

22R..RN34,44..3QT,HLF

 1
90467-31002

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
90467-26001

22R..RN34,44..3QT,HLF

 2
90467-31002

22R..RN34,44..3QT,HLF

 1
90467-31002

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35020

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17343-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-35011

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17344-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17361 - TUBE, AIR
17360-38020

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17367 - GASKET, AIR TUBE
17376-38011

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10028

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
25716 - BRACKET, AIR SWITCHING VALVE
25716-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
25740 - VALVE ASSY, AIR CONTROL
25740-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
Common parts
90105-08018
90179-08146
91611-40812
91611-40820

(8208- )22R..USA ; (8208- )22R..RN44..CND..IV

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17361 17367 17610A 25720 9010508018 9046315002 9165140820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17341-35020

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17341-35021

22R..RN34,44..3QT,HLF

 1
17341-35011

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17341-35020

22R..RN34,44..3QT,HLF

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35020

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17342-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342-35020

22R..RN34,44..3QT,HLF

 1
17342-35030

22R..RN34,44..3QT,HLF

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
90467-26001

22R..RN34,44..3QT,HLF

 2
90467-31002

22R..RN34,44..3QT,HLF

 1
90467-31002

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
90467-26001

22R..RN34,44..3QT,HLF

 2
90467-31002

22R..RN34,44..3QT,HLF

 1
90467-31002

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35020

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17343-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-35011

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17344-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17361 - TUBE, AIR
17360-38020

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17367 - GASKET, AIR TUBE
17376-38011

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10028

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
25720 - VALVE ASSY, ELECTRIC AIR CONTROL
25720-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
Common parts
90105-08018
90463-15002
91651-40820

(8208- )22R..RN38,48..USA ; (8208- )22R..RN34,44..3QT,HLF

Click highlighted areas on diagram

diagram 17341 17342 17342A 17342A 17350 17351 17352 17376 17378 17378 9010508018 9010508018 9017908146 9161140816 9165140816
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17341-35020

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17341-35021

22R..RN34,44..3QT,HLF

 1
17341-35011

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17341-35020

22R..RN34,44..3QT,HLF

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35020

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17342-35010

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342-35040

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17342-35020

22R..RN34,44..3QT,HLF

 1
17342-35030

22R..RN34,44..3QT,HLF

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
90467-26001

22R..RN34,44..3QT,HLF

 2
90467-31002

22R..RN34,44..3QT,HLF

 1
90467-31002

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 2
90467-26001

22R..RN34,44..3QT,HLF

 2
90467-31002

22R..RN34,44..3QT,HLF

 1
90467-31002

22R..RN44..4FC..SR5;22R..RN34,44..(3FC,4F,5F)..(3QT,HLF)

 1
17350 - VALVE ASSY, REED
17350-37010

22R..RN34,44..3QT,HLF

 1
17350-35020

22R..RN34,44..3QT,HLF

 1
17351 - MANIFOLD, AIR INJECTION
17351-35020

22R..RN34,44..3QT,HLF

 1
17351-35010

22R..RN34,44..3QT,HLF

 1
17352 - MANIFOLD, AIR INJECTION, NO.2
17352-35010

22R..RN34,44..3QT,HLF

 1
17352-35040

22R..RN34,44..3QT,HLF

 1
17376 - GASKET, AIR TUBE, NO.1
17376-37010

22R..RN34,44..3QT,HLF

 1
17376-35010

22R..RN34,44..3QT,HLF

 1
17378 - GASKET AIR TUBE, NO.3
17378-37010

22R..RN34,44..3QT,HLF

 2
17378 - GASKET AIR TUBE, NO.3
17378-37010

22R..RN34,44..3QT,HLF

 2
Common parts
90105-08018
90179-08146
91611-40816
91651-40816
