RN34L-HDA (1980)

Toyota Pickup

Production Aug 1980 - Aug 1981
Engine 22R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)LN40,RN32,34,42,44..3QT,HLF ; (8108-)3QT

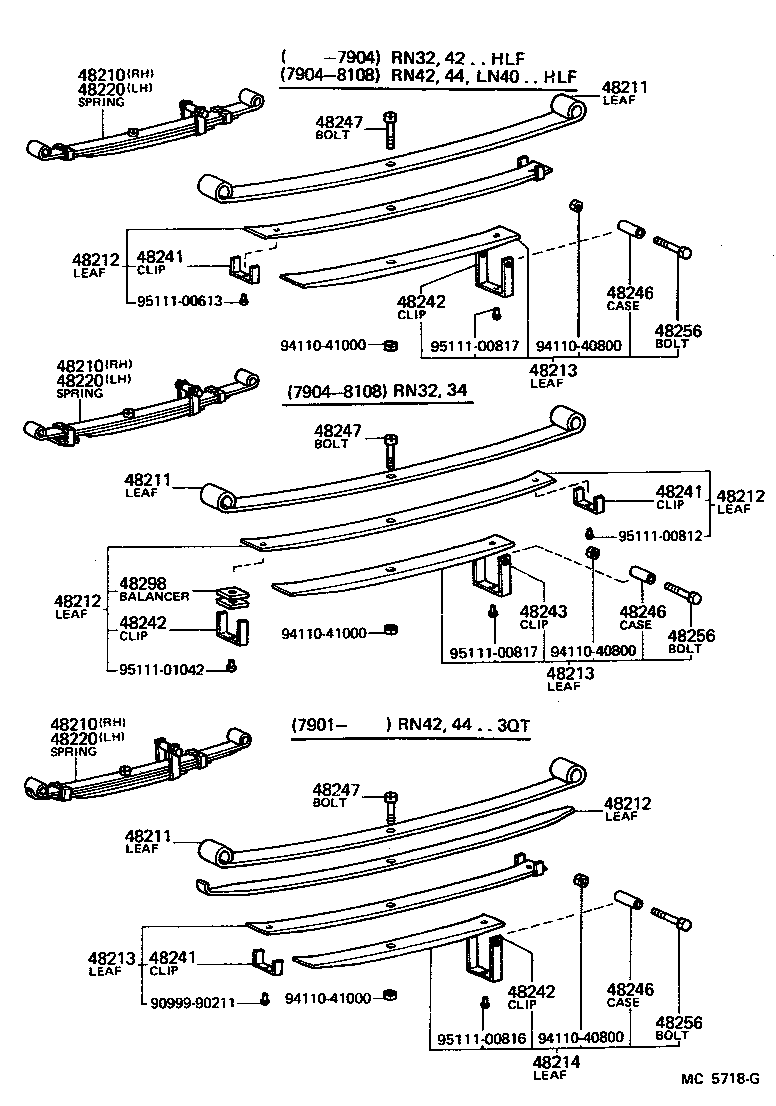

Click highlighted areas on diagram

diagram 48210 48210 48210 48211 48211 48211 48212 48212 48212 48212 48213 48213 48213 48214 48220 48220 48220 48241 48241 48241 48242 48242 48242 48243 48246 48246 48246 48247 48247 48247 48256 48256 48256 48298 9099990211 9411040800 9411040800 9411040800 9411041000 9411041000 9411041000 9511100613 9511100812 9511100816 9511100817 9511100817 9511101042
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35221

RN34..DLX,SR5

SOFT RIDE

 1
48210 - SPRING ASSY, REAR RH
48210-35221

RN34..DLX,SR5

SOFT RIDE

 1
48210 - SPRING ASSY, REAR RH
48210-35221

RN34..DLX,SR5

SOFT RIDE

 1
48211 - LEAF, REAR SPRING, NO.1
48211-35130

LN40,RN32,34,42,44..HLF

 2
48211-35140

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48211 - LEAF, REAR SPRING, NO.1
48211-35130

LN40,RN32,34,42,44..HLF

 2
48211-35140

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48211 - LEAF, REAR SPRING, NO.1
48211-35130

LN40,RN32,34,42,44..HLF

 2
48211-35140

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48212 - LEAF, REAR SPRING, NO.2
48202-35221

RN34..DLX,SR5

SOFT RIDE

 2
48212 - LEAF, REAR SPRING, NO.2
48202-35221

RN34..DLX,SR5

SOFT RIDE

 2
48212 - LEAF, REAR SPRING, NO.2
48202-35221

RN34..DLX,SR5

SOFT RIDE

 2
48212 - LEAF, REAR SPRING, NO.2
48202-35221

RN34..DLX,SR5

SOFT RIDE

 2
48213 - LEAF, REAR SPRING, NO.3
48203-35130

LN40,RN32,34,42,44..HLF

 2
48203-35140

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48213 - LEAF, REAR SPRING, NO.3
48203-35130

LN40,RN32,34,42,44..HLF

 2
48203-35140

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48213 - LEAF, REAR SPRING, NO.3
48203-35130

LN40,RN32,34,42,44..HLF

 2
48203-35140

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48220 - SPRING ASSY, REAR LH
48210-35221

RN34..DLX,SR5

SOFT RIDE

 1
48220 - SPRING ASSY, REAR LH
48210-35221

RN34..DLX,SR5

SOFT RIDE

 1
48220 - SPRING ASSY, REAR LH
48210-35221

RN34..DLX,SR5

SOFT RIDE

 1
48243 - CLIP, REAR SPRING, NO.3
48241-35160

RN34..DLX,SR5

SOFT RIDE

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-35040

LN40,RN32,34,42,44

 2
48246-35160

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-35040

LN40,RN32,34,42,44

 2
48246-35160

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-35040

LN40,RN32,34,42,44

 2
48246-35160

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35110

LN40,RN32,34,42,44..HLF

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35110

LN40,RN32,34,42,44..HLF

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35110

LN40,RN32,34,42,44..HLF

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35040

LN40,RN32,34,42,44

 2
48256-35160

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35040

LN40,RN32,34,42,44

 2
48256-35160

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35040

LN40,RN32,34,42,44

 2
48256-35160

RN34,44..(DLX,SR5)..HLF

SOFT RIDE

 2
Common parts
90999-90211
94110-40800
94110-41000
95111-00613
95111-00812
95111-00816
95111-00817
95111-01042
