RN34L-HDA (1980)
Toyota Pickup
Production
Aug 1980
-
Aug 1981
Engine
22R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

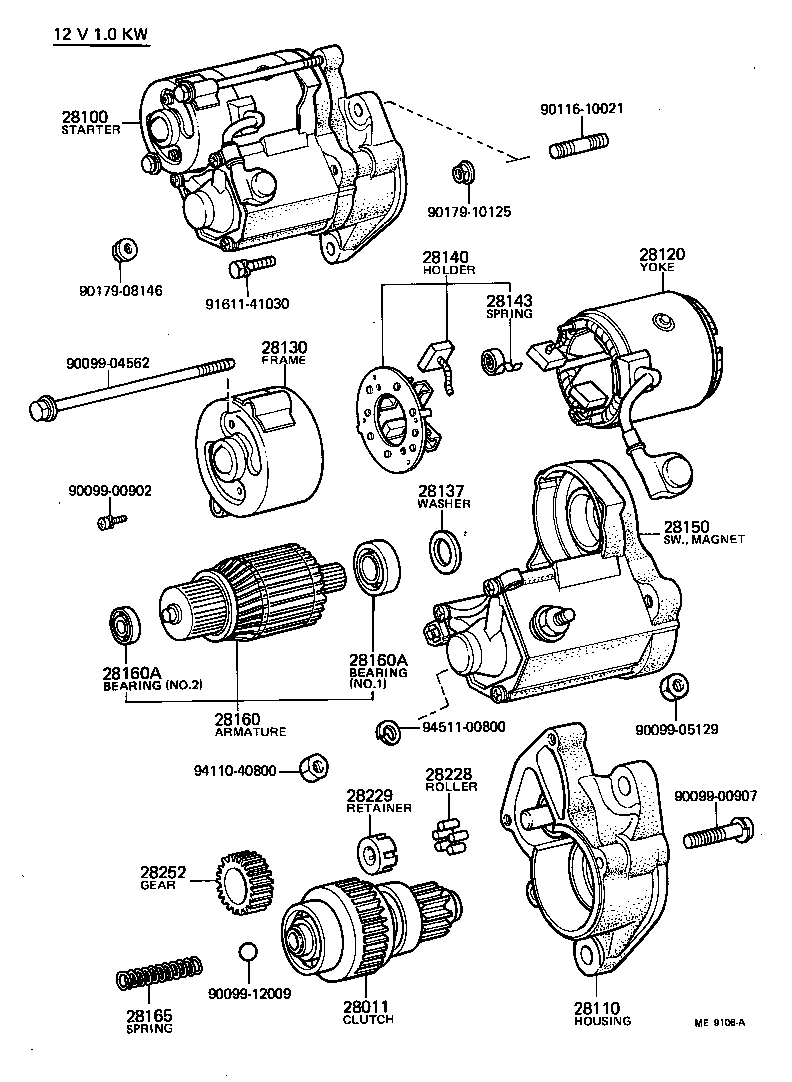

(8008- )22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-34040 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02202 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-34030 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34052 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26050 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
20R,22R..RN3#,4# 12V 1.0KW,1.4KW,NO.2 |
1 | ||
| 90099-10107 |
20R,22R..RN3#,4# 12V 1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
20R,22R..RN3#,4# 12V 1.0KW,1.4KW,NO.2 |
1 | ||
| 90099-10107 |
20R,22R..RN3#,4# 12V 1.4KW,NO.1 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-41030 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

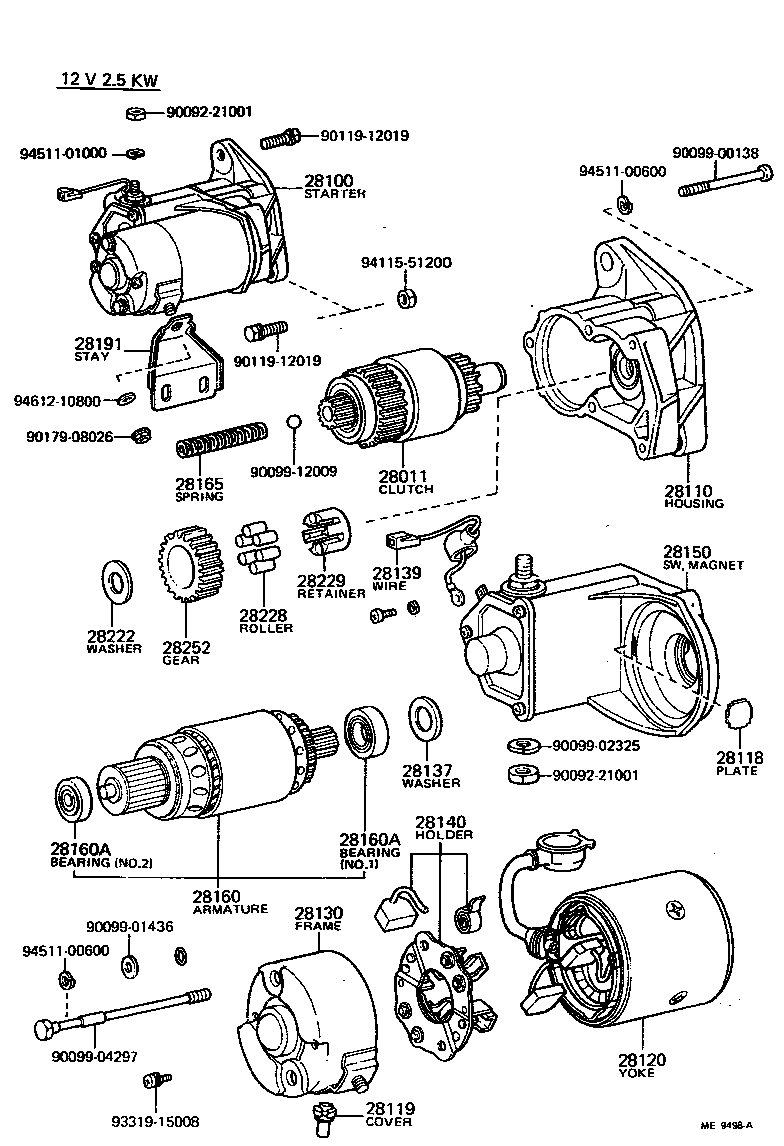

(8101- )L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-34040 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02202 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-34030 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34052 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26050 |
20R,22R..RN3#,4# 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
20R,22R..RN3#,4# 12V 1.0KW,1.4KW,NO.2 |
1 | ||
| 90099-10107 |
20R,22R..RN3#,4# 12V 1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
20R,22R..RN3#,4# 12V 1.0KW,1.4KW,NO.2 |
1 | ||
| 90099-10107 |
20R,22R..RN3#,4# 12V 1.4KW,NO.1 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
