RN32L-MSA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

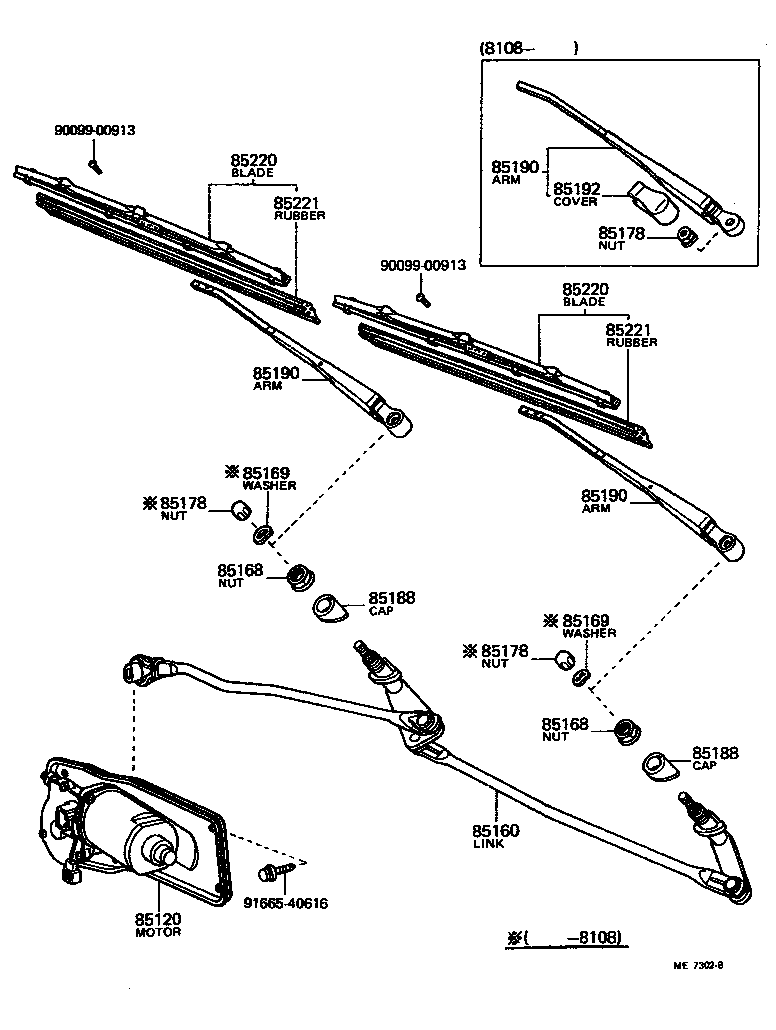

Click highlighted areas on diagram

diagram 85120 85160 85168 85168 85169 85169 85178 85178 85178 85188 85188 85190 85190 85190 85192 85220 85220 85221 85221 9009900913 9009900913 9166540616
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-89114

RN3#,4#

COLD SPEC

 1
85120-89115

RN3#,4#..USA

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-89117

LN40,RN3#,4#

COLD SPEC

 1
85160-89118

LN40,RN3#,4#..USA

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85186-12170

RN3#,42

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85186-12170

RN3#,42

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
90206-08002

LN40,RN3#,4#

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
90206-08002

LN40,RN3#,4#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08019

LN40,RN3#,4#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08019

LN40,RN3#,4#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08019

LN40,RN3#,4#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85179-89102

LN40,RN3#,4#

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85179-89102

LN40,RN3#,4#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89121

LN40,RN3#,4#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89121

LN40,RN3#,4#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-89121

LN40,RN3#,4#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-22101

LN40,RN3#,4#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-22101

LN40,RN3#,4#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-22010

LN40,RN3#,4#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-22010

LN40,RN3#,4#

 2
Common parts
90099-00913
91665-40616
