RN32L-MSA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

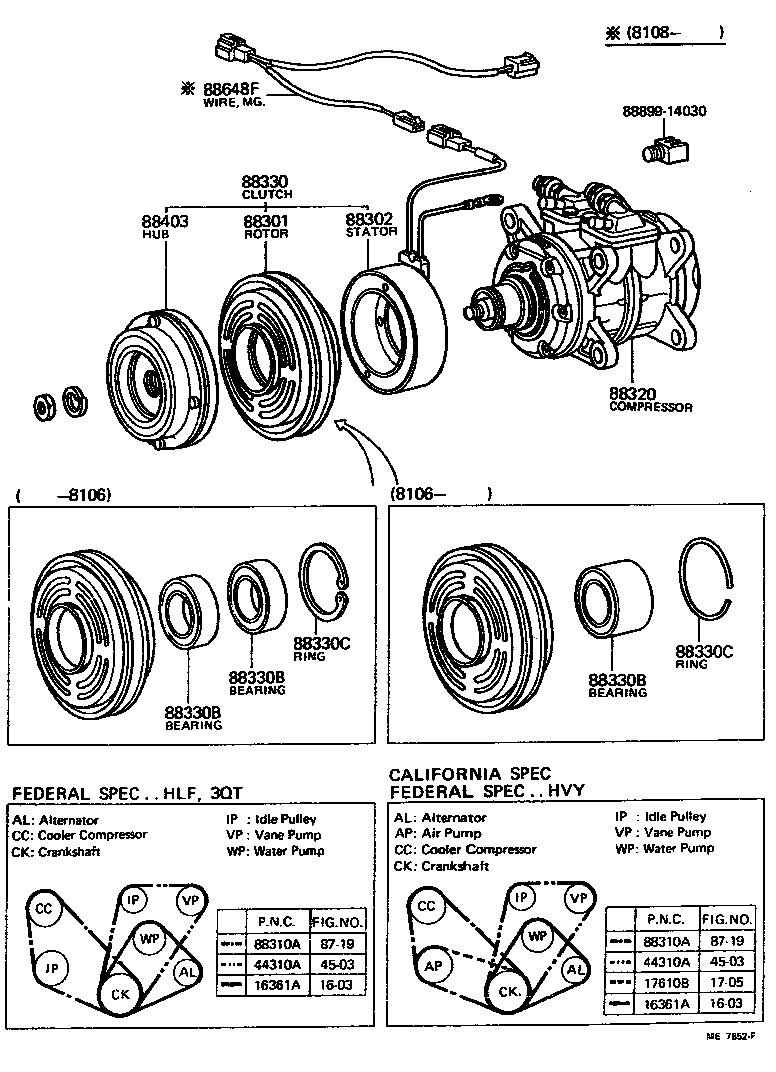

diagram 1603 1603 16361A 16361A 1705 17610B 44310A 44310A 4503 4503 8719 8719 88301 88302 88310A 88310A 88320 88330 88330B 88330B 88330B 88330C 88330C 88403 88648F 8889914030
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

20R..RN3#,4#

L=880

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

20R..RN3#,4#

L=880

 1
17610B - BELT, V(FOR AIR PUMP)
99332-00865

20R..RN32,42

L=865

 1
99332-10830

20R..RN32,42

L=830

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20060

RN3#,42..USA

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22040

RN3#,42..USA

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01140

RN3#,42..USA

 1
99332-11110

RN3#,42..USA

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01140

RN3#,42..USA

 1
99332-11110

RN3#,42..USA

 1
88320 - COMPRESSOR ASSY, COOLER
88320-35040

RN3#,42..USA

 1
88330 - CLUTCH ASSY, MAGNET
88410-20130

RN3#,42..USA

 1
88330B - BEARING, MAGNET CLUTCH
90099-10117

LN40,RN3#,4#

 2
88330B - BEARING, MAGNET CLUTCH
90099-10117

LN40,RN3#,4#

 2
88330B - BEARING, MAGNET CLUTCH
90099-10117

LN40,RN3#,4#

 2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

RN3#,42..USA

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

RN3#,42..USA

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-22030

RN3#,42..USA

 1
Common parts
88899-14030
Linked diagrams
1603
1705
4503
8719

(7808-8108)

Click highlighted areas on diagram

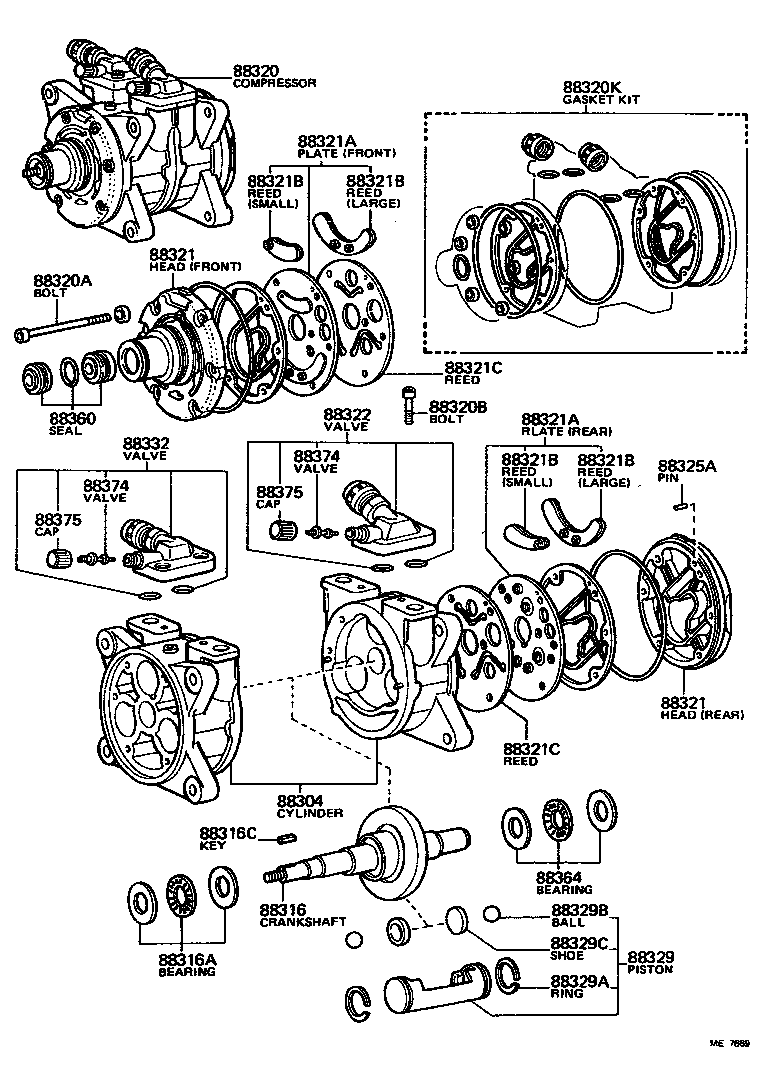

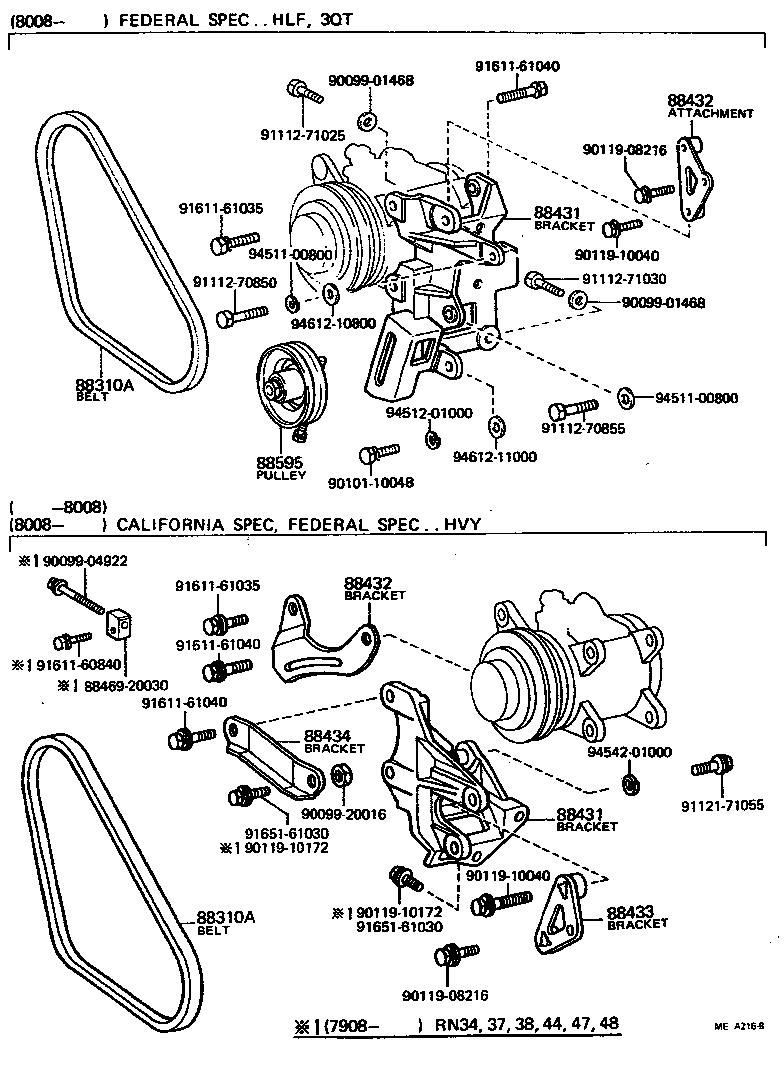

diagram 88304 88316 88316A 88316C 88320 88320A 88320B 88320K 88321 88321 88321A 88321A 88321B 88321B 88321B 88321B 88321C 88321C 88322 88325A 88329 88329A 88329B 88329C 88332 88360 88364 88374 88374 88375 88375
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-12020

LN40,RN3#,4#..USA

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-12060

RN3#,42..USA

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
90099-10123

LN40,RN3#,4#..USA

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13011

RN3#,42..USA

 1
88320 - COMPRESSOR ASSY, COOLER
88320-35040

RN3#,42..USA

 1
88320A - BOLT, THROUGH
90099-04923

LN40,RN3#,4#..USA

 6
88320B - BOLT, SERVICE VALVE
90099-04924

LN40,RN3#,4#..USA

 4
88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL
04881-35010

RN3#,42..USA

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-12010

LN40,RN3#,4#..USA

RR

 1
88321-12030

RN3#,42..USA

FR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-12010

LN40,RN3#,4#..USA

RR

 1
88321-12030

RN3#,42..USA

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88305-12040

LN40,RN3#,4#..USA

FR

 1
88306-12010

LN40,RN3#,4#..USA

RR

 1
88321A - PLATE SUB-ASSY, VALVE
88305-12040

LN40,RN3#,4#..USA

FR

 1
88306-12010

LN40,RN3#,4#..USA

RR

 1
88321B - REED SUB-ASSY, VALVE
88307-12040

LN40,RN3#,4#..USA

SMALL

 2
88307-12030

LN40,RN3#,4#..USA

LARGE

 2
88321B - REED SUB-ASSY, VALVE
88307-12040

LN40,RN3#,4#..USA

SMALL

 2
88307-12030

LN40,RN3#,4#..USA

LARGE

 2
88321B - REED SUB-ASSY, VALVE
88307-12040

LN40,RN3#,4#..USA

SMALL

 2
88307-12030

LN40,RN3#,4#..USA

LARGE

 2
88321B - REED SUB-ASSY, VALVE
88307-12040

LN40,RN3#,4#..USA

SMALL

 2
88307-12030

LN40,RN3#,4#..USA

LARGE

 2
88321C - REED, SUCTION VALVE
88343-12010

LN40,RN3#,4#..USA

 2
88321C - REED, SUCTION VALVE
88343-12010

LN40,RN3#,4#..USA

 2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-10010

RN3#,42..USA

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

LN40,RN3#,4#..USA

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-12040

LN40,RN3#,4#..USA

 3
88329A - RING, COMPRESSOR PISTON SNAP
88317-12010

LN40,RN3#,4#..USA

 6
88329B - BALL, PISTON
90099-12010

LN40,RN3#,4#..USA

 6
88329C - SHOE, PISTON
88313-12060

LN40,RN3#,4#..USA

 6
88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88372-35010

RN3#,42..USA

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-12070

LN40,RN3#,4#..USA

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
90099-10123

LN40,RN3#,4#..USA

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

LN40,RN3#,4#..USA

 2
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

LN40,RN3#,4#..USA

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30260

RN3#,4#..USA

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30260

RN3#,4#..USA

 2

(7808- )RN3#,4#

Click highlighted areas on diagram

diagram 88310A 88310A 88431 88431 88432 88432 88433 88434 8846920030 88595 9009901468 9009901468 9009904922 9009920016 9010110048 9011908216 9011908216 9011910040 9011910040 9011910172 9011910172 9111270850 9111270855 9111271025 9111271030 9112171055 9161160840 9161161035 9161161035 9161161040 9161161040 9161161040 9165161030 9165161030 9451100800 9451100800 9451201000 9454201000 9461210800 9461211000
Part # Description Qty Price
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01140

RN3#,42..USA

 1
99332-11110

RN3#,42..USA

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01140

RN3#,42..USA

 1
99332-11110

RN3#,42..USA

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35041

RN3#,42..USA

 1
88431-35040

RN3#,42..USA

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35041

RN3#,42..USA

 1
88431-35040

RN3#,42..USA

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88437-20090

RN3#,42..USA

 1
88437-20080

RN3#,42..USA

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88437-20090

RN3#,42..USA

 1
88437-20080

RN3#,42..USA

 1
88433 - BRACKET, COMPRESSOR MOUNTING, NO.3
11324-38011

RN3#,42..USA

 1
88434 - BRACKET, COMPRESSOR MOUNTING, NO.4
88434-20140

RN3#,42..USA

 1
88434-20150

RN3#,42..USA

 1
Common parts
88469-20030
90099-01468
90099-04922
90099-20016
90101-10048
90119-08216
90119-10040
90119-10172
91112-70850
91112-70855
91112-71025
91112-71030
91121-71055
91611-60840
91611-61035
91611-61040
91651-61030
94511-00800
94512-01000
94542-01000
94612-10800
94612-11000
