RN32L-MSA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

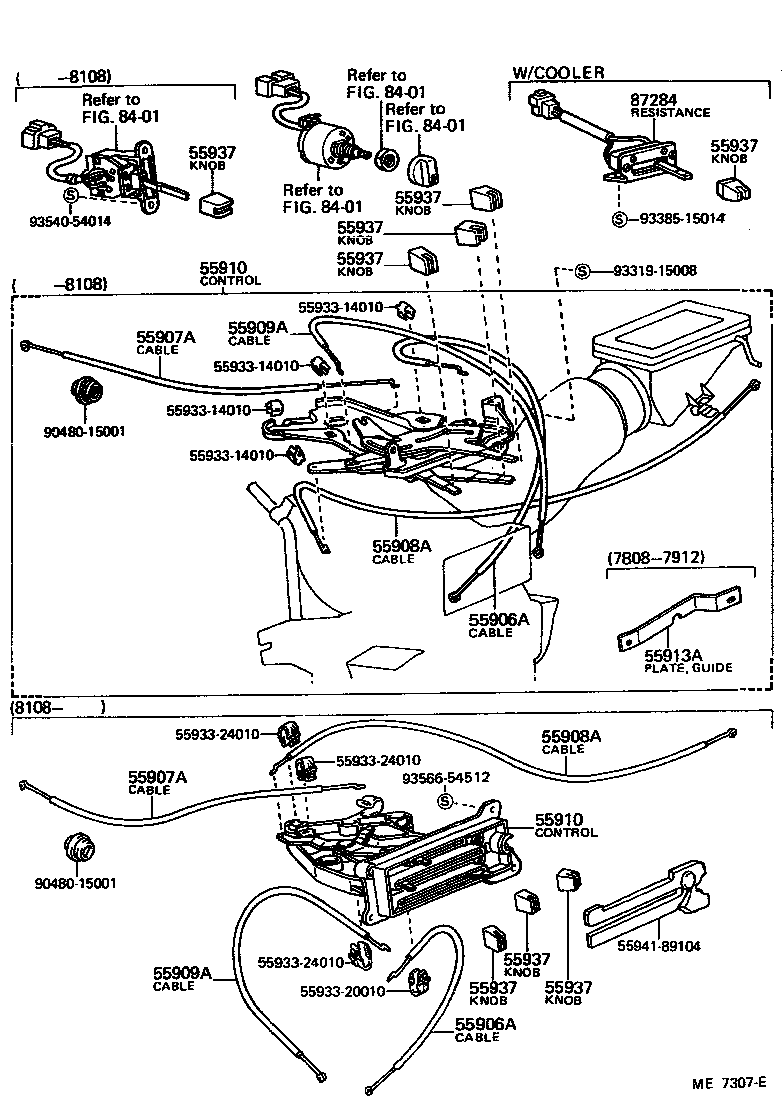

Click highlighted areas on diagram

diagram 55906A 55906A 55907A 55907A 55908A 55908A 55909A 55909A 55910 55910 55913A 5593314010 5593314010 5593314010 5593314010 5593320010 5593324010 5593324010 5593324010 55937 55937 55937 55937 55937 55937 55937 55937 5594189104 8401 8401 8401 8401 87284 9048015001 9048015001 9331915008 9338515014 9354054014 9356654512
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-89104

LN40,RN3#,4#

L=500

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-89104

LN40,RN3#,4#

L=500

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-89108

LN40,RN3#,4#

L=390

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-89108

LN40,RN3#,4#

L=390

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-89102

LN40,RN3#,4#

L=720

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-89102

LN40,RN3#,4#

L=720

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-89103

LN40,RN3#,4#

L=365

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-89103

LN40,RN3#,4#

L=365

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-89110

LN40,RN3#,4#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-89110

LN40,RN3#,4#

 1
55913A - PLATE, HEATER CONTROL LEVER GUIDE
55913-89105

RN3#,42

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN40,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN40,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN40,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN40,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN40,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN40,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN40,RN3#,4#

 5
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

LN40,RN3#,4#

 5
87284 - RESISTOR SUB-ASSY, VARIABLE
88622-89101

LN40,RN3#,4#..USA

W/COOLER

 1
Common parts
55933-14010
55933-20010
55933-24010
55941-89104
90480-15001
93319-15008
93385-15014
93540-54014
93566-54512
Linked diagrams
8401

(7808- )

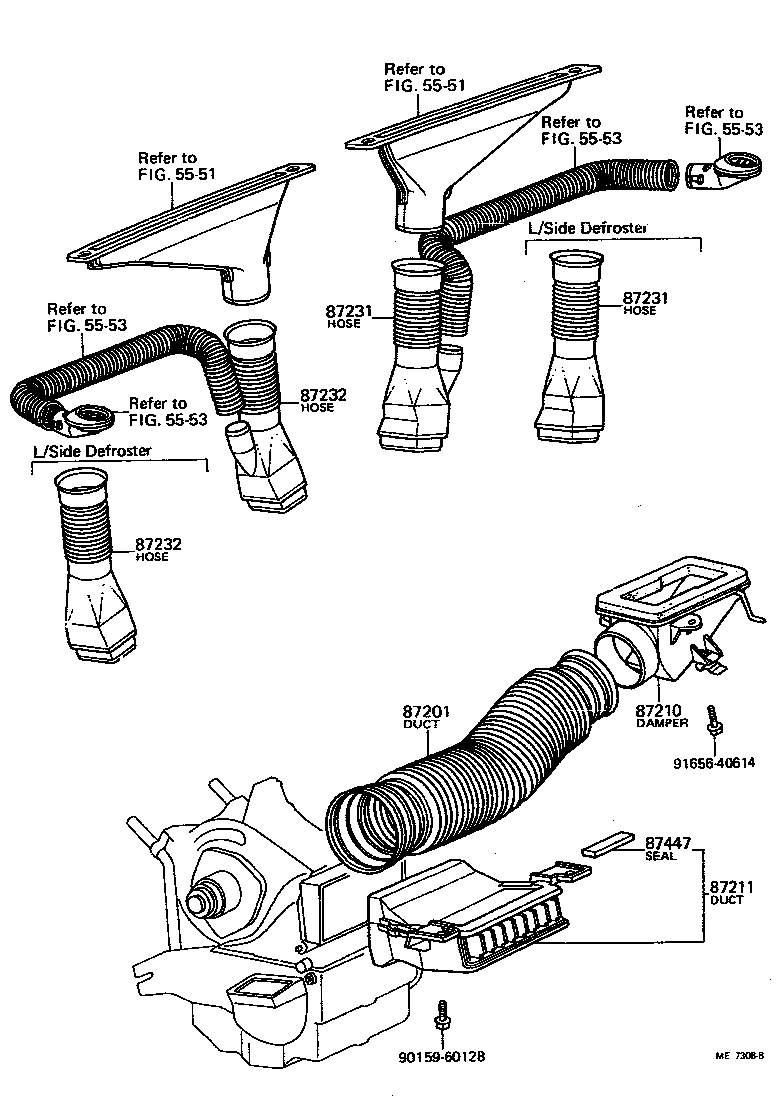

Click highlighted areas on diagram

diagram 5551 5551 5553 5553 5553 5553 87201 87210 87211 87231 87231 87232 87232 87447 9015960128 9165640614
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-89101

LN40,RN3#,4#

 1
87210 - DAMPER ASSY, AIR
87210-89103

LN40,RN3#,4#

 1
87211 - DUCT, AIR, NO.1
88575-89101

LN40,RN3#,4#..USA

W/COOLER

 1
55670-8910205

LN40,RN3#,4#

MOVABLE TYPE,BEIGE,BEIGE

 1
55670-8910204

LN40,RN3#,4#

MOVABLE TYPE,BLUE,BLUE

 1
55670-8910201

LN40,RN3#,4#

MOVABLE TYPE,BLACK,BLACK

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-89106

LN40,RN32,34,42,44..USA

 1
87231-89107

LN40,RN3#,4#

W/SIDE DEFROSTER

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-89106

LN40,RN32,34,42,44..USA

 1
87231-89107

LN40,RN3#,4#

W/SIDE DEFROSTER

 1
87232 - HOSE, HEATER DEFROSTER, LH
87232-89106

LN40,RN3#,4#..USA

 1
87232-89107

LN40,RN3#,4#

W/SIDE DEFROSTER

 1
87232 - HOSE, HEATER DEFROSTER, LH
87232-89106

LN40,RN3#,4#..USA

 1
87232-89107

LN40,RN3#,4#

W/SIDE DEFROSTER

 1
87447 - PACKING, AIR DUCT
55697-89102

LN40,RN3#,4#

 1
Common parts
90159-60128
91656-40614
Linked diagrams
5551
5553

(7808- )

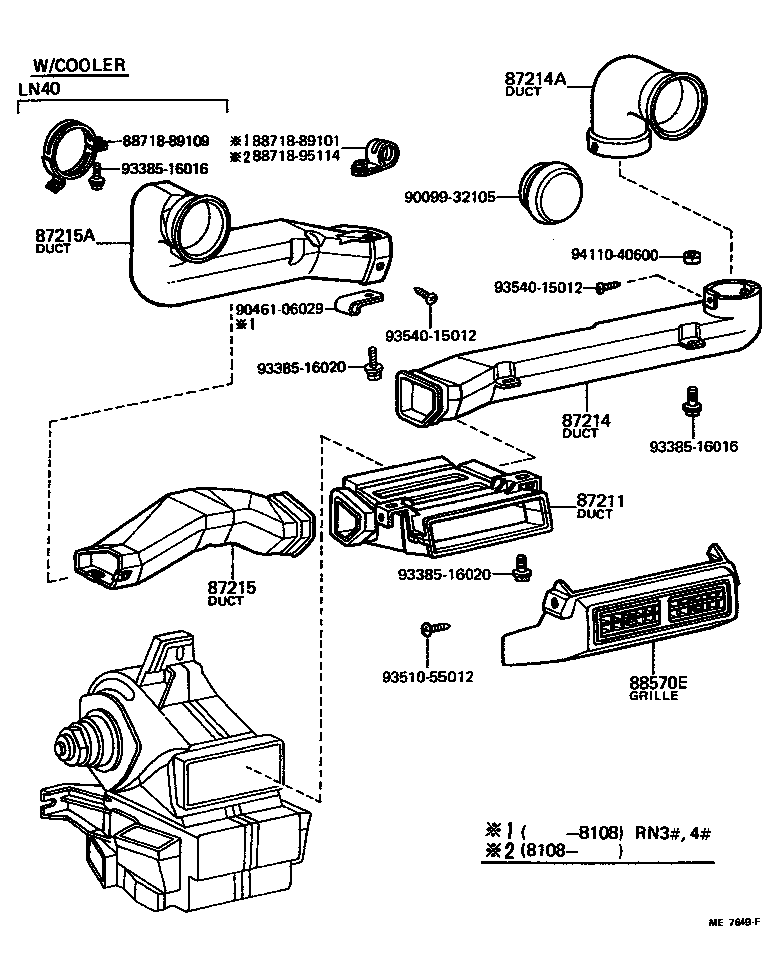

Click highlighted areas on diagram

diagram 87211 87214 87214A 87215 87215A 88570E 8871889101 8871889109 8871895114 9009932105 9046106029 9338516016 9338516016 9338516020 9338516020 9351055012 9354015012 9354015012 9411040600
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
88575-89101

LN40,RN3#,4#..USA

W/COOLER

 1
55670-8910205

LN40,RN3#,4#

MOVABLE TYPE,BEIGE,BEIGE

 1
55670-8910204

LN40,RN3#,4#

MOVABLE TYPE,BLUE,BLUE

 1
55670-8910201

LN40,RN3#,4#

MOVABLE TYPE,BLACK,BLACK

 1
87214 - DUCT, AIR, SIDE NO.1 RH
88576-89107

LN40,RN3#,4#..USA

 1
87214A - DUCT, AIR, SIDE NO.2 RH
88576-89104

LN40,RN3#,4#..USA

 1
87215 - DUCT, AIR, SIDE NO.1 LH
88576-89105

RN32,42..USA

 1
87215A - DUCT, AIR, SIDE NO.2 LH
88576-89106

RN32,42..USA

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-89103

LN40,RN3#,4#..USA

 1
Common parts
88718-89101
88718-89109
88718-95114
90099-32105
90461-06029
93385-16016
93385-16020
93510-55012
93540-15012
94110-40600
