RN32L-MSA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8202)RN32,34,42,44..5F..HLF ; (8202-8208)3QT..CND ; (8202-8208)RN34,44..HLF,H

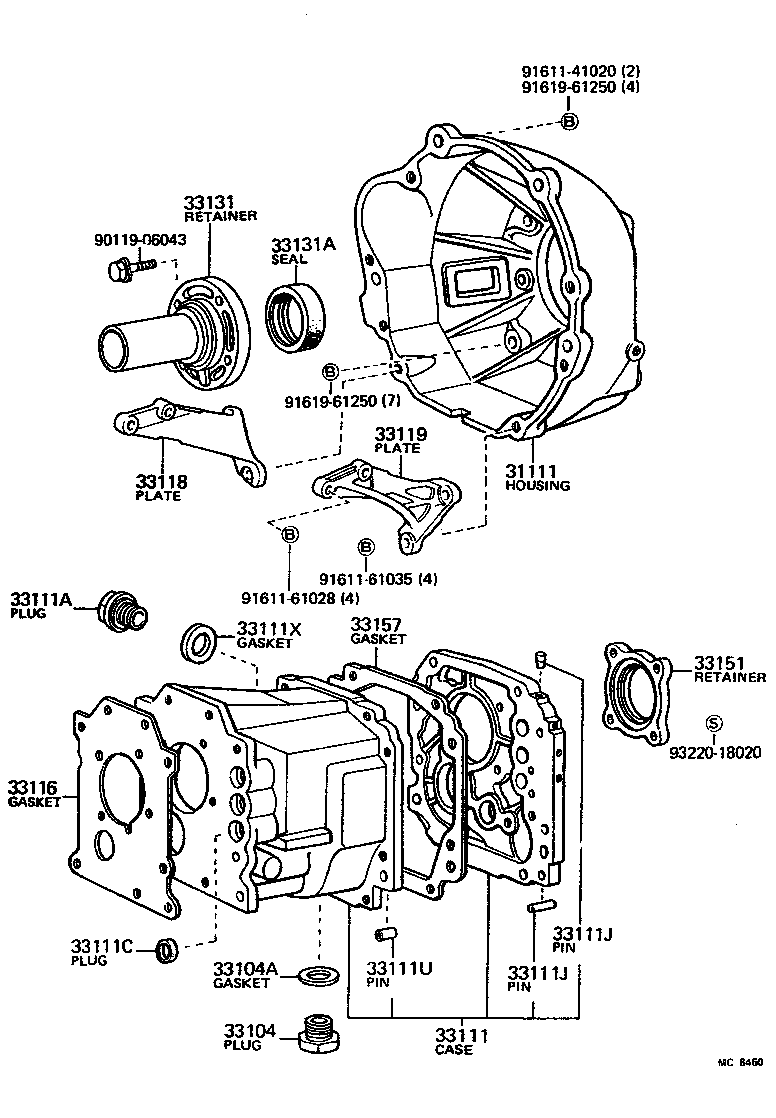

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111X 33116 33118 33119 33131 33131A 33151 33157 9011906043 9161141020 9161161028 9161161035 9161961250 9161961250 9322018020
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20110

RN32,42..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

LN40,RN3#,4#..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LN40,RN3#,4#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-20010

RN32,42..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

LN40,RN3#,4#..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-20044

RN32,34,42,44..5F..HLF

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90334-06017

RN32,34,42,44..5F..HLF

L=11,OD=6

 1
90250-12195

RN32,34,42,44..5F..HLF

L=35,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90334-06017

RN32,34,42,44..5F..HLF

L=11,OD=6

 1
90250-12195

RN32,34,42,44..5F..HLF

L=35,OD=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017

RN32,34,42,44..5F..HLF

L=12,OD=13

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LN40,RN3#,4#..MTM

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-20040

RN32,34,42,44..5F..HLF

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-31010

RN32,34,42,44..5F..HLF

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

RN32,42..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-20010

RN32,34,42,44..5F..HLF

 1
33157 - GASKET, TRANSMISSION CASE, NO.2
33142-20020

RN32,34,42,44..5F..HLF

 1
Common parts
90119-06043
91611-41020
91611-61028
91611-61035
91619-61250
93220-18020
