RN32L-MSA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7908)20R..RN32,42 ; (7901-7908)20R..RN37,47..USA

Click highlighted areas on diagram

diagram 1708 17341 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17355 17361 17367 17610A 25710 9010508018 9046112026 9046114006 9161140814 9165140814
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-38040

20R..RN32,42

 1
17341-38030

20R..RN32,42

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

20R..RN32,42

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-38050

20R..RN32,42

 1
17342-38040

20R..RN32,42

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96111-10330

20R..RN32,42

 2
90467-28003

20R..RN32,42

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96111-10330

20R..RN32,42

 2
90467-28003

20R..RN32,42

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-38031

20R..RN32,42

 1
17343-38040

20R..RN32,42

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96111-10330

20R..RN32,42

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96111-10330

20R..RN32,42

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-38040

20R..RN32,42

 1
17344-38060

20R..RN32,42

 1
17344-38050

20R..RN32,42

 1
17355 - NOZZLE, AIR INJECTION
17355-38010

20R..RN32,42

 4
17361 - TUBE, AIR
17360-38020

20R..RN32,42

 1
17367 - GASKET, AIR TUBE
17376-38010

20R..RN32,42

 2
17376-38011

20R..RN32,42

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10028

20R..RN32,42

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-38030

20R..RN32,42

 1
25710-38040

20R..RN32,42

 1
Common parts
90105-08018
90461-12026
90461-14006
91611-40814
91651-40814
Linked diagrams
1708

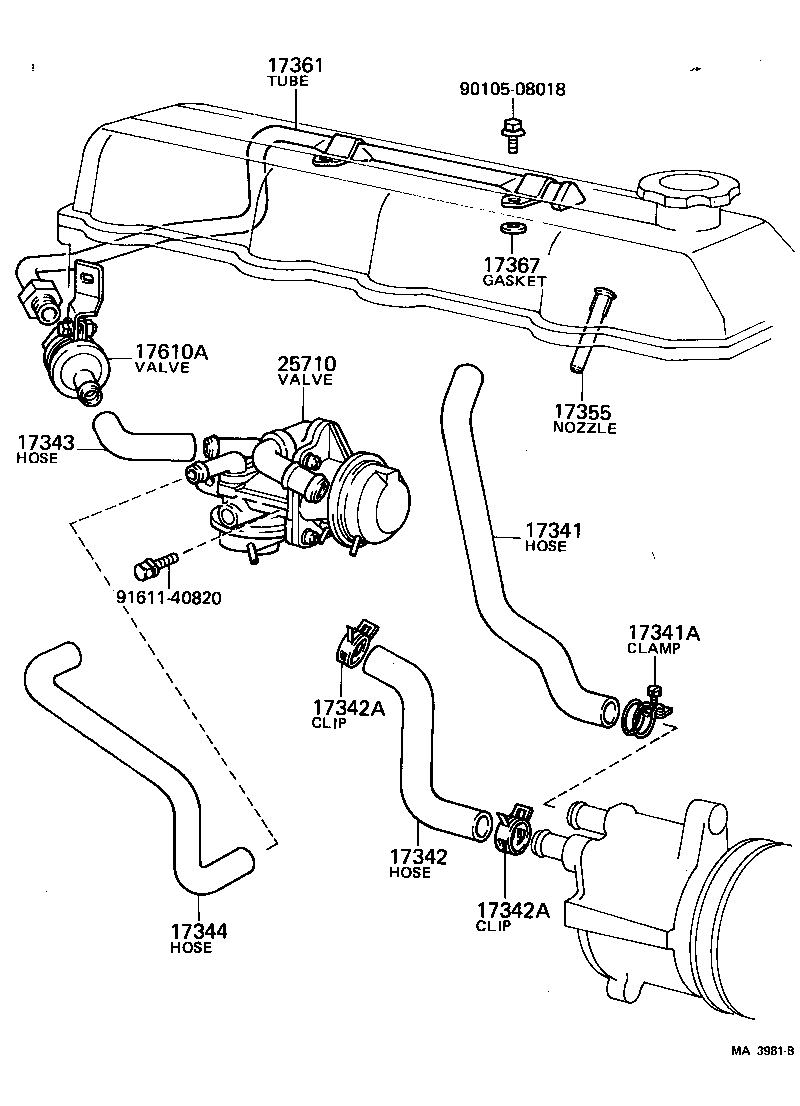

(7908-8008)20R..RN32,42 ; (7908-8008)20R..RN37,47..USA

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17344 17355 17361 17367 17610A 25710 9010508018 9161140820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-38040

20R..RN32,42

 1
17341-38030

20R..RN32,42

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

20R..RN32,42

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-38050

20R..RN32,42

 1
17342-38040

20R..RN32,42

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96111-10330

20R..RN32,42

 2
90467-28003

20R..RN32,42

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96111-10330

20R..RN32,42

 2
90467-28003

20R..RN32,42

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-38031

20R..RN32,42

 1
17343-38040

20R..RN32,42

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-38040

20R..RN32,42

 1
17344-38060

20R..RN32,42

 1
17344-38050

20R..RN32,42

 1
17355 - NOZZLE, AIR INJECTION
17355-38010

20R..RN32,42

 4
17361 - TUBE, AIR
17360-38020

20R..RN32,42

 1
17367 - GASKET, AIR TUBE
17376-38010

20R..RN32,42

 2
17376-38011

20R..RN32,42

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10028

20R..RN32,42

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-38030

20R..RN32,42

 1
25710-38040

20R..RN32,42

 1
Common parts
90105-08018
91611-40820
