RN32L-MDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)LN40,RN32,34,42,44

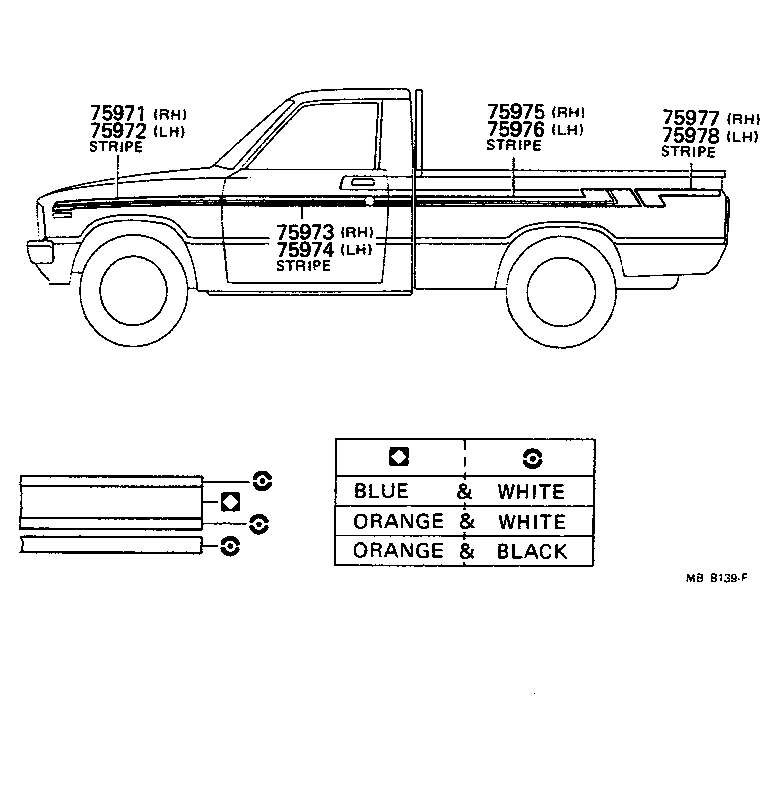

Click highlighted areas on diagram

diagram 75971 75972 75973 75974 75975 75976 75977 75978
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75981-8910704

LN40,RN32,34,42,44..(DLX,SR5)..HLF

BLUE & WHITE,BLUE

 1
75981-8910716

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & WHITE,BROWN

 1
75981-8910706

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & BLACK,BROWN

 1
75972 - STRIPE, SIDE, LH NO.1
75982-8910604

LN40,RN32,34,42,44..(DLX,SR5)..HLF

BLUE & WHITE,BLUE

 1
75982-8910606

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & BLACK,BROWN

 1
75982-8910616

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & WHITE,BROWN

 1
75973 - STRIPE, SIDE, RH NO.2
75985-8910904

LN40,RN32,34,42,44..(DLX,SR5)..HLF

BLUE & WHITE,BLUE

 1
75985-8910916

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & WHITE,BROWN

 1
75985-8910906

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & BLACK,BROWN

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75986-8910904

LN40,RN32,34,42,44..(DLX,SR5)..HLF

BLUE & WHITE,BLUE

 1
75986-8910916

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & WHITE,BROWN

 1
75986-8910906

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & BLACK,BROWN

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75996-8910816

RN32,34..DLX,SR5

ORANGE & WHITE,BROWN

 1
75996-8910806

RN32,34..DLX,SR5

ORANGE & BLACK,BROWN

 1
75996-8910804

RN32,34..DLX,SR5

BLUE & WHITE,BLUE

 1
75976 - STRIPE, SIDE, LH UPR
75997-8910816

RN32,34..DLX,SR5

ORANGE & WHITE,BROWN

 1
75997-8910804

RN32,34..DLX,SR5

BLUE & WHITE,BLUE

 1
75997-8910806

RN32,34..DLX,SR5

ORANGE & BLACK,BROWN

 1
75977 - STRIPE, SIDE, RH NO.4
75996-8911016

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & WHITE,BROWN

 1
75996-8911006

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & BLACK,BROWN

 1
75996-8911004

LN40,RN32,34,42,44..(DLX,SR5)..HLF

BLUE & WHITE,BLUE

 1
75978 - STRIPE, SIDE, LH NO.4
75997-8911006

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & BLACK,BROWN

 1
75997-8911016

LN40,RN32,34,42,44..(DLX,SR5)..HLF

ORANGE & WHITE,BROWN

 1
75997-8911004

LN40,RN32,34,42,44..(DLX,SR5)..HLF

BLUE & WHITE,BLUE

 1
