RN32L-MDA (1978)
Toyota Pickup

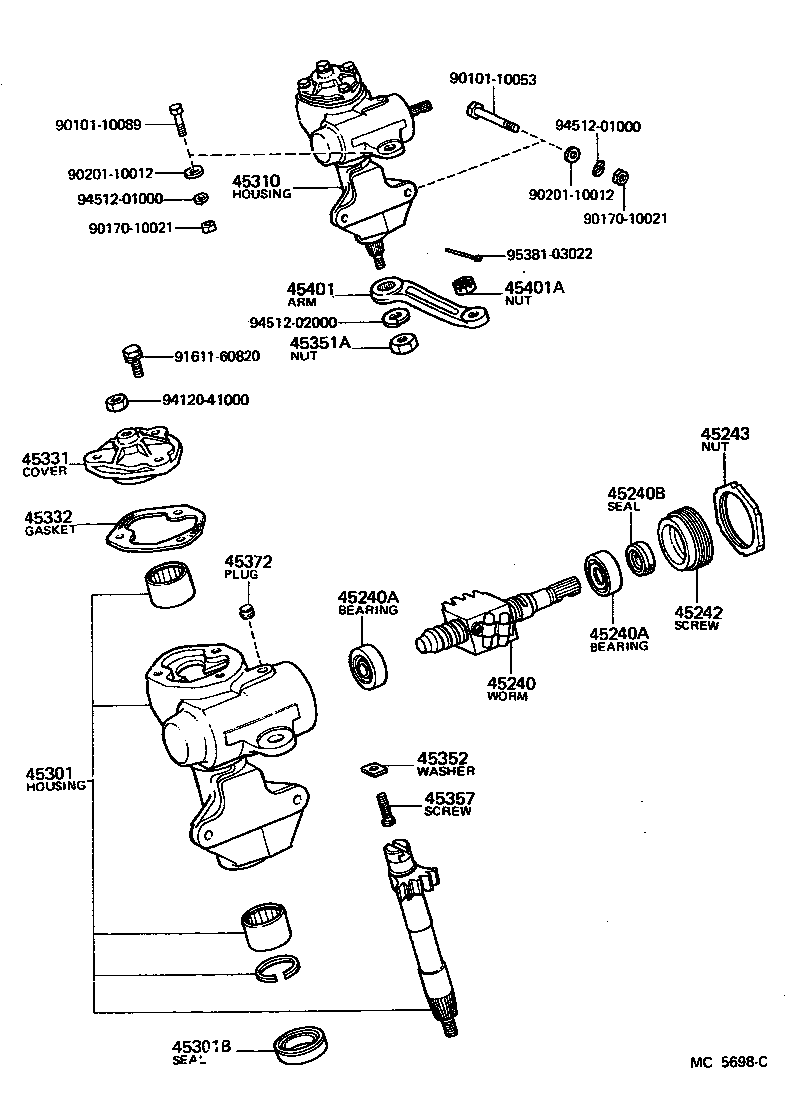

(7808- )LN40,RN32,34,42,44
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-35030 |
RN32,34,42,44 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
LN40,RN32,34,42,44 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-43001 |
LN40,RN32,34,42,44 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
LN40,RN32,34,42,44 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22060 |
LN40,RN32,34,42,44 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22040 |
LN40,RN32,34,42,44 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-35100 |
RN32,34,42,44 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
LN40,RN32,34,42,44 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-35090 |
RN32,34,42,44 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-35040 |
LN40,RN32,34,42,44 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-20060 |
LN40,RN32,34,42,44 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
LN40,RN32,34,42,44 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-20010 |
LN40,RN32,34,42,44 T=2.05,T=2.05 |
1 | ||
| 45355-20010 |
LN40,RN32,34,42,44 T=2.10,T=2.10 |
1 | ||
| 45356-20010 |
LN40,RN32,34,42,44 T=2.15,T=2.15 |
1 | ||
| 45353-20010 |
LN40,RN32,34,42,44 T=1.95,T=1.95 |
1 | ||
| 45352-20010 |
LN40,RN32,34,42,44 T=2.00,T=2.00 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
LN40,RN32,34,42,44 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
LN40,RN32,34,42,44 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-35140 |
LN40,RN32,34,42,44 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
LN40,RN32,34,42,44 |
1 | ||
| Common parts | ||||
| 90101-10053 | ||||
| 90101-10089 | ||||
| 90170-10021 | ||||
| 90201-10012 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
| 94512-02000 | ||||
| 95381-03022 | ||||

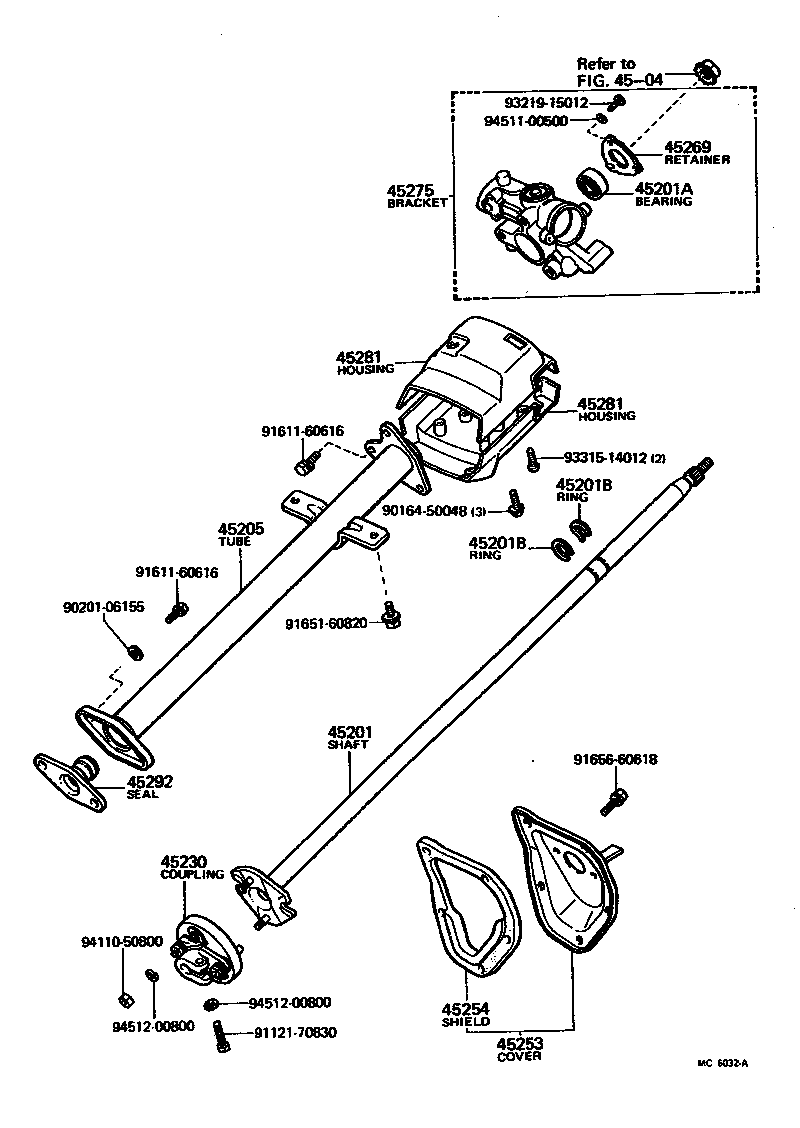

(7808-7908)RN32,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-35100 |
RN32,42 W/STEERING LOCK |
1 | ||
| 45201-35090 |
RN32,42 W/O STEERING LOCK |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35070 |
RN32,42 |
1 | ||
| 45205-35110 |
RN32,42 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35020 |
LN40,RN32,34,42,44 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-89103 |
RN32,42 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-89102 |
RN3#,42 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LN40,RN3#,4# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-35070 |
LN40,RN3#,4# W/O STEERING LOCK |
1 | ||
| 45307-35060 |
LN40,RN3#,4# W/STEERING LOCK |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35020 |
RN32,42 |
1 | ||
| Common parts | ||||
| 60656-60618 | ||||
| 90164-50048 | ||||
| 90201-06155 | ||||
| 91121-70830 | ||||
| 91611-60616 | ||||
| 91651-60820 | ||||
| 93219-15012 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 4504 | ||||

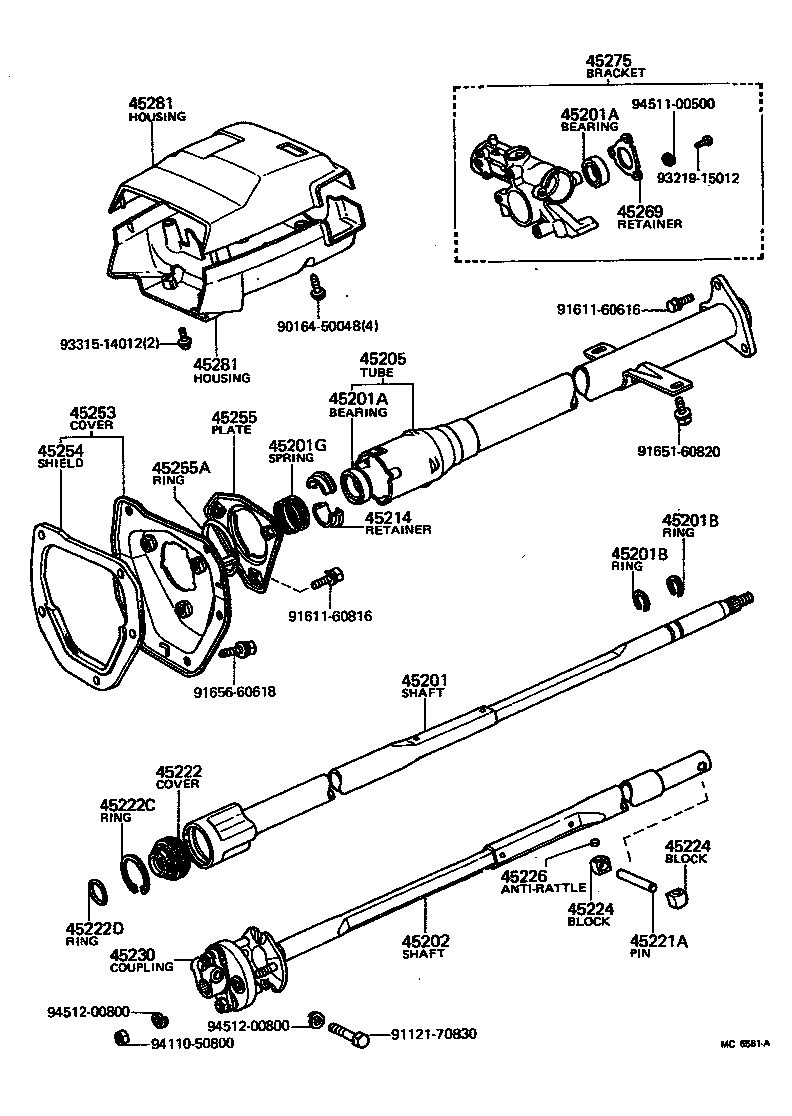

(7908-8008)RN32,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-35100 |
RN32,42 W/STEERING LOCK |
1 | ||
| 45201-35090 |
RN32,42 W/O STEERING LOCK |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LN40,RN3#,4# UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LN40,RN3#,4# T=1.20,T=1.2 |
1 | ||
| 90520-17269 |
LN40,RN3#,4# T=1.20,STEERING WHEEL SIDE |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-35070 |
RN32,42 |
1 | ||
| 45205-35110 |
RN32,42 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35020 |
LN40,RN32,34,42,44 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-89103 |
RN32,42 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-89102 |
RN3#,42 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
RN32,42 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LN40,RN3#,4# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-35070 |
LN40,RN3#,4# W/O STEERING LOCK |
1 | ||
| 45307-35060 |
LN40,RN3#,4# W/STEERING LOCK |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-3513001 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3513005 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45286-3513004 |
LN40,RN3#,4# UPR,W/O STEERING LOCK,BLUE,BLUE |
1 | ||
| 45287-3507001 |
LN40,RN3#,4# LWR,BLACK,BLACK |
1 | ||
| 45286-3512001 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLACK,BLACK |
1 | ||
| 45286-3512005 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BEIGE,BEIGE |
1 | ||
| 45287-3507004 |
LN40,RN3#,4# LWR,BLUE,BLUE |
1 | ||
| 45287-3507005 |
LN40,RN3#,4# LWR,BEIGE,BEIGE |
1 | ||
| 45286-3512004 |
LN40,RN3#,4# UPR,W/STEERING LOCK,BLUE,BLUE |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 91121-70830 | ||||
| 91611-60616 | ||||
| 91611-60816 | ||||
| 91651-60820 | ||||
| 91656-60618 | ||||
| 93219-15012 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
