RN32L-MDA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )MTM

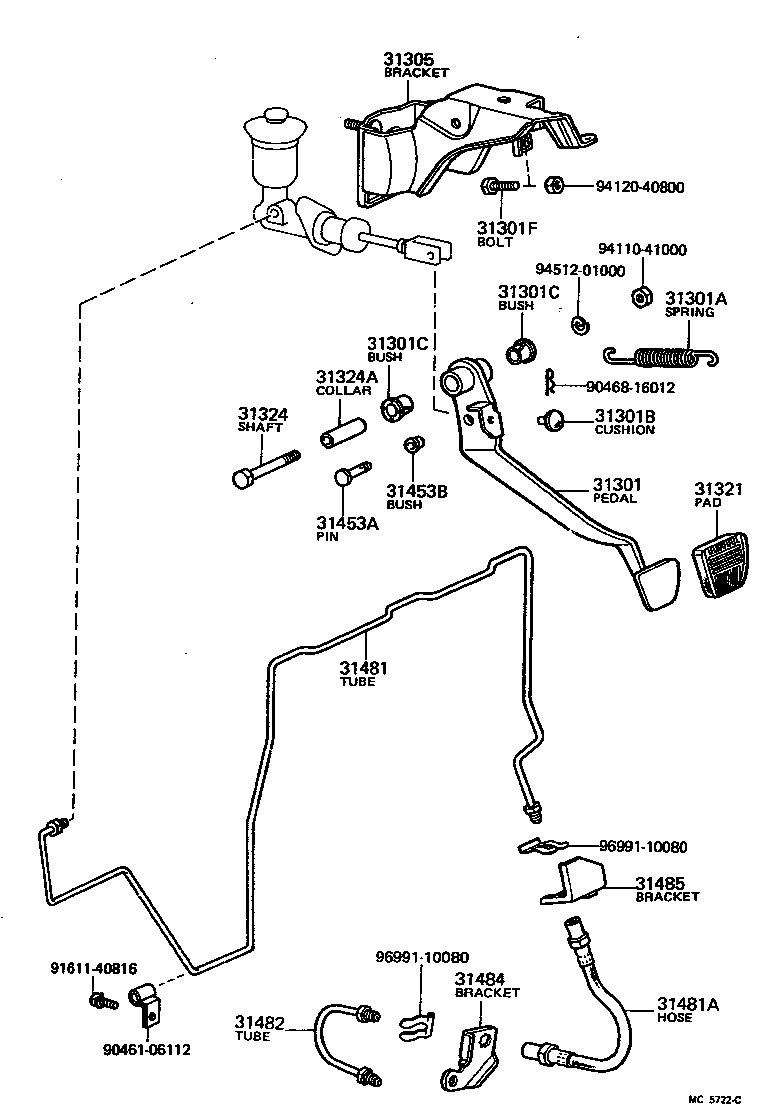

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31453B 31481 31481A 31482 31484 31485 9046106112 9046816012 9161140816 9411041000 9412040800 9451201000 9699110080 9699110080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35110

LN40,RN3#,4#..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14019

LN40,RN3#,4#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LN40,RN3#,4#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN40,RN3#,4#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN40,RN3#,4#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90109-08001

RN32,42..MTM

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-89102

LN40,RN3#,4#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

LN40,RN3#,4#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

LN40,RN3#,4#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

LN40,RN3#,4#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

RN3#,4#..MTM

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LN40,RN3#,4#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35110

RN32,34,42,44..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90947-02272

RN3#,4#..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35100

RN32,34,42,44..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35090

RN3#,4#..MTM

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-35070

RN3#,4#..MTM

 1
Common parts
90461-06112
90468-16012
91611-40816
94110-41000
94120-40800
94512-01000
96991-10080
