RN32L-KRK (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8008)

Click highlighted areas on diagram

diagram 1903 83391 83420 83520 83530 84210 84222 84540 85430 8601 8601 8601 89427 89620 9011908063 9011908063 9046108022 9046108041 9046315067 9046315617 9165140610 9165140612 9338516016
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

RN3#,42

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14010

LN40,RN37,47..DLX;RN32,34,38,42,44,48

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-26010

RN3#,4#..4F

 1
89620 - IGNITER ASSY
89620-20101

RN3#,42..CND

 1
89620-35090

RN3#,42..CND

IGNITER MARK=96

 1
Common parts
90119-08063
90461-08022
90461-08041
90463-15067
90463-15617
91651-40610
91651-40612
93385-16016
Linked diagrams
1903
8601

(7808-8008)

Click highlighted areas on diagram

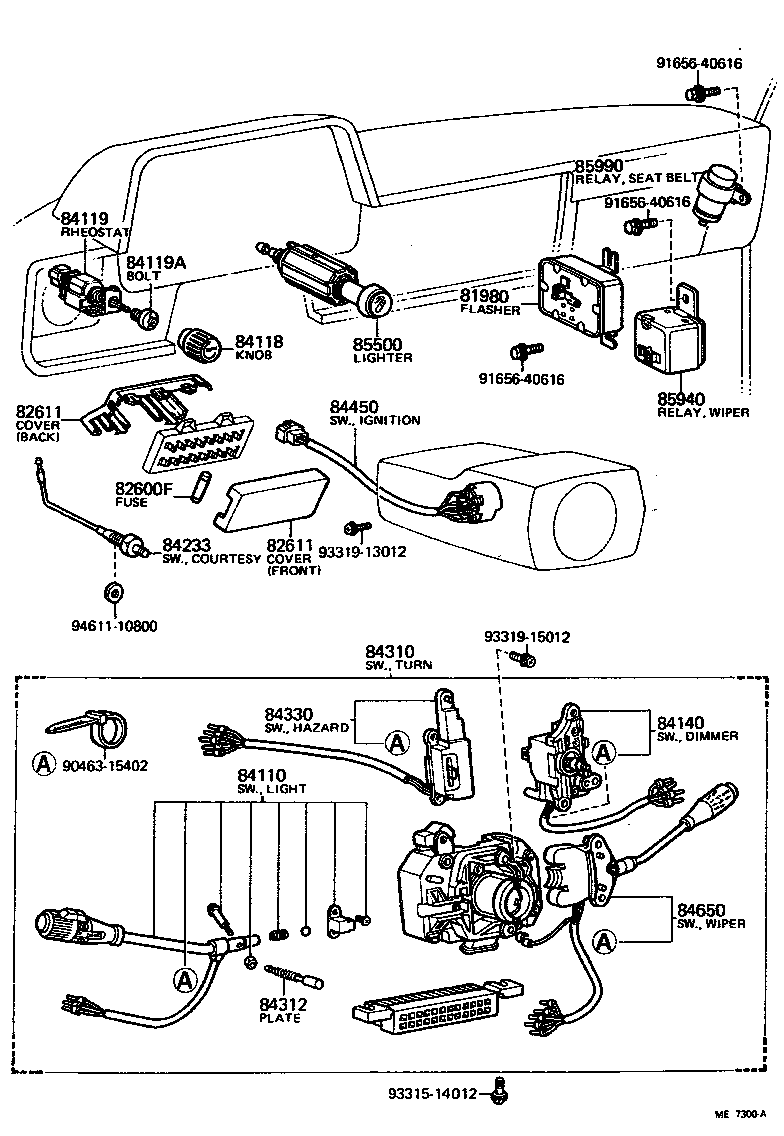

diagram 81980 82600F 82611 82611 84110 84118 84119 84119A 84140 84233 84310 84312 84330 84450 84650 85500 85940 85990 9046315402 9165640616 9165640616 9165640616 9331514012 9331913012 9331915012 9461110800
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-30040

RN3#,42

 1
82600F - FUSE, FUSE BLOCK
99118-62910

LN40,RN3#,4#

10A

 6
99118-62005

LN40,RN3#,4#

5A

 2
99118-62915

LN40,RN3#,4#

15A,15A

 5
82611 - COVER, FUSE BLOCK
82611-89105

LN40,RN3#,4#

RR

 1
82611-89106

LN40,RN3#,4#

FR

 1
82611 - COVER, FUSE BLOCK
82611-89105

LN40,RN3#,4#

RR

 1
82611-89106

LN40,RN3#,4#

FR

 1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19085

RN3#,42

 1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-14010

RN3#,42

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-89101

RN3#,42

 1
84119A - BOLT OR NUT, RHEOSTAT CONTROL SET
90984-01013

RN32,37,38,42,47,48

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19025

LN40,RN3#,4#

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-20040

LN40,RN3#,4#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-10230

RN3#,42

 1
84312 - PLATE, HORN CONTACT
84312-20011

LN40,RN3#,4#

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19025

LN40,RN3#,4#

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-14021

LN40,RN3#,4#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-19155

RN3#,42

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-20042

RN3#,42

 1
Common parts
90463-15402
91656-40616
93315-14012
93319-13012
93319-15012
94611-10800

(7808-8008)

Click highlighted areas on diagram

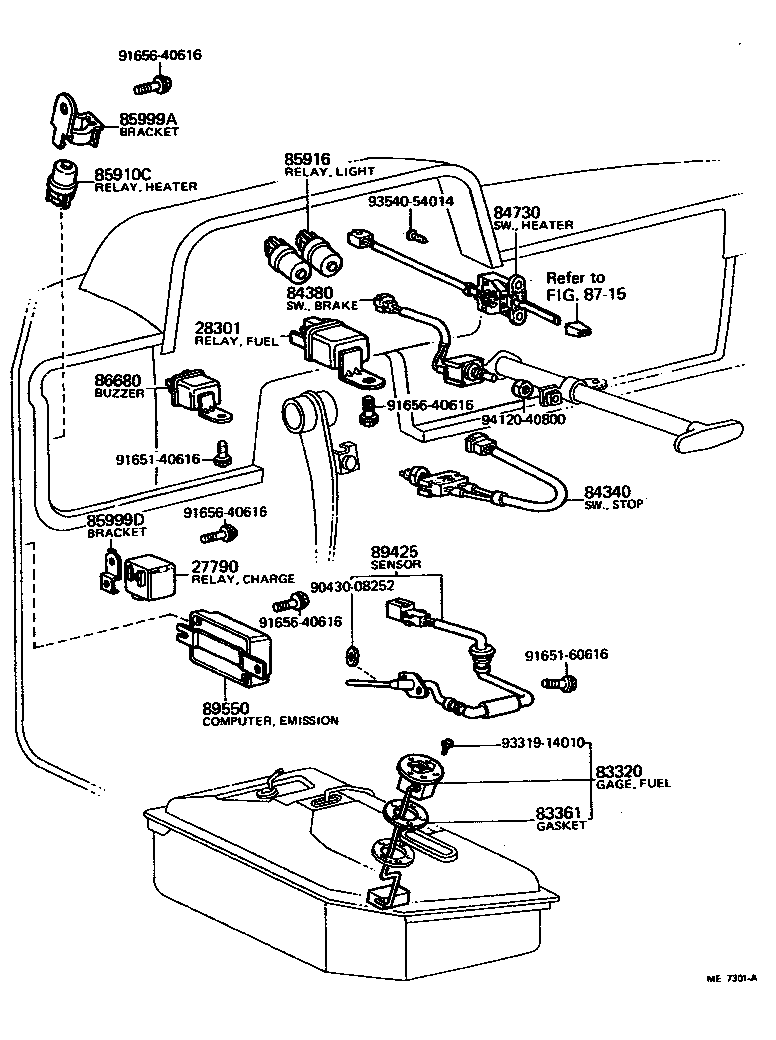

diagram 27790 28301 83320 83361 84340 84380 84730 85910C 85916 85999A 85999D 86680 8715 89425 89550 9043008252 9165140616 9165160616 9165640616 9165640616 9165640616 9165640616 9331914010 9354054014 9412040800
Part # Description Qty Price
27790 - RELAY ASSY, CHARGE LAMP
27790-41010

20R..RN3#,4#

 1
28301 - RELAY ASSY, FUEL PUMP
28380-20010

20R..RN3#,4#

 1
83320 - GAGE ASSY, FUEL SENDER
83320-39175

RN3#;RN44..4FC

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

LN40,RN3#,4#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22071

LN40,RN3#,4#

TOKAIRIKA

 1
84340-22060

LN40,RN3#,4#

MATSUSHITA

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-35010

LN40,RN3#,4#

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-89105

LN40,RN3#,4#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02001

RN3#,42

 1
85916 - RELAY, LIGHT CONTROL
90987-01001

LN40,RN32,34,37,42,44

 2
85999A - BRACKET, RELAY, NO.2
85999-26010

RN3#,42

 1
85999D - BRACKET, RELAY, NO.4
85999-22070

RN3#,4#

CHARGE LAMP RELAY

 1
86680 - BUZZER ASSY, UN-LOCK WARNING OR SEAT BELT WARNING
86650-30022

RN3#,42

 1
89550 - COMPUTER ASSY, EMISSION CONTROL
89550-35090

RN32,42

 1
89550-35150

RN32,42..3QT,HLF

 1
Common parts
90430-08252
91651-40616
91651-60616
91656-40616
93319-14010
93540-54014
94120-40800
Linked diagrams
8715
