RN32L-KRK (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

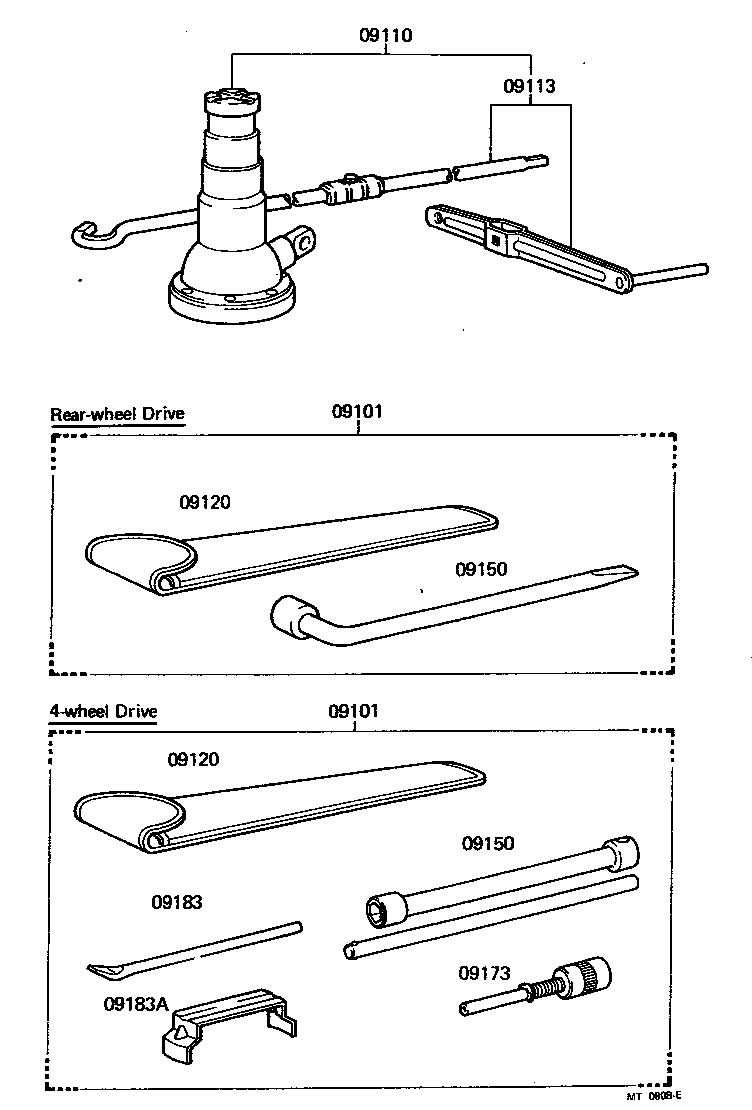

Click highlighted areas on diagram

diagram 09101 09101 09110 09113 09120 09120 09150 09150 09173 09183 09183A
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-14060

RN32,42

 1
09101 - TOOL SET, STANDARD W/O JACK
09101-14060

RN32,42

 1
09110 - JACK ASSY
09110-35090

RN32,42

 1
09113 - HANDLE, JACK
09113-35060

RN32,42

 1
09120 - BAG, TOOL
09120-12030

LN40,RN3#,4#

 1
09120 - BAG, TOOL
09120-12030

LN40,RN3#,4#

 1
09150 - WRENCH, HUB NUT BOX
09150-30011

RN32,42

 1
09150 - WRENCH, HUB NUT BOX
09150-30011

RN32,42

 1
