RN32L-KRA3 (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

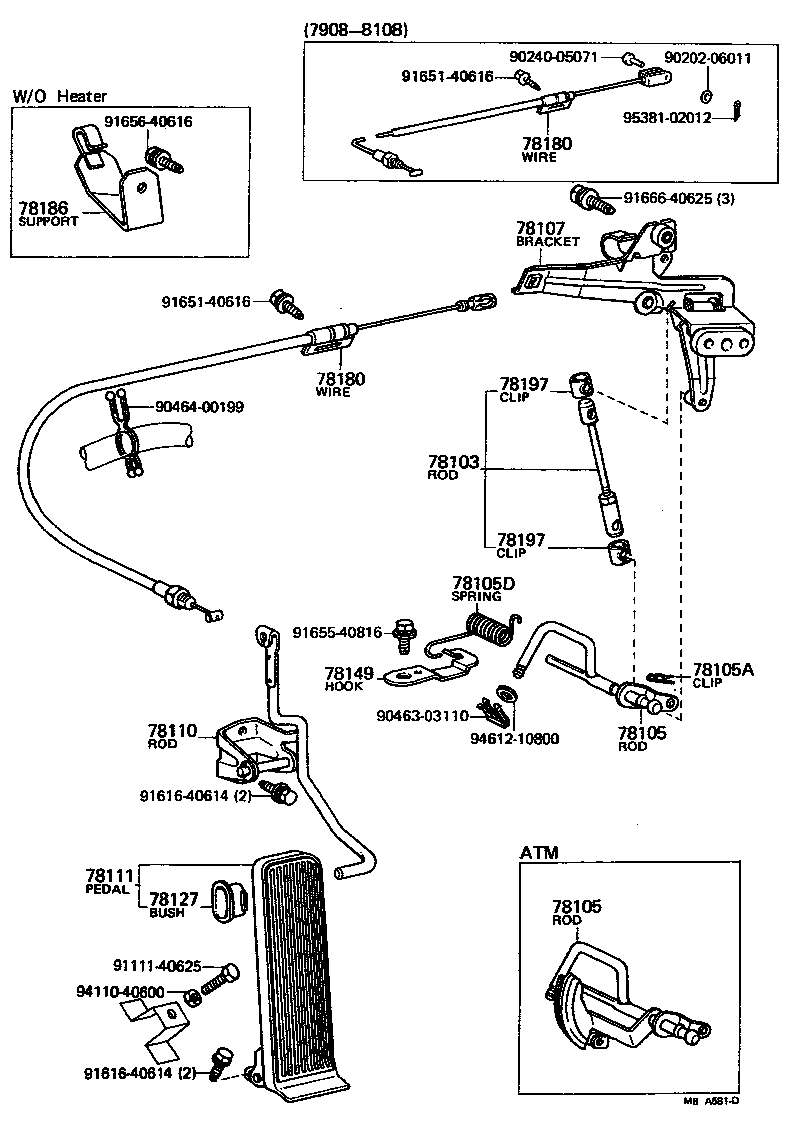

(7808-7908)RN32,42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-89114 |
RN32,42..MTM |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-89114 |
RN32,42..MTM |
1 | ||
| 78105A - CLIP (FOR ACCELERATOR TORQUE ROD) | ||||
| 90468-16012 |
RN32,34,42,44 |
1 | ||
| 78105D - SPRING (FOR ACCELERATOR TORQUE ROD) | ||||
| 90508-14407 |
RN32,42 TORSION,WD=1.4 |
1 | ||
| 90506-09020 |
RN32,42 TENSION,WD=0.9 |
1 | ||
| 90508-14032 |
RN32,42..MTM |
1 | ||
| 78105D - SPRING (FOR ACCELERATOR TORQUE ROD) | ||||
| 90508-14407 |
RN32,42 TORSION,WD=1.4 |
1 | ||
| 90506-09020 |
RN32,42 TENSION,WD=0.9 |
1 | ||
| 90508-14032 |
RN32,42..MTM |
1 | ||
| 78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD | ||||
| 78170-89103 |
RN32,42 |
1 | ||
| 78170-89105 |
RN32,42 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89103 |
RN32,42 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-89102 |
LN40,RN32,34,42,44 |
1 | ||
| 78127 - BUSH, ACCELERATOR PEDAL, NO.2 | ||||
| 78127-20010 |
LN40,RN3#,4# |
1 | ||
| 78149 - HOOK, ACCELERATOR TORQUE ROD SPRING | ||||
| 78149-20060 |
RN32,34,42,44 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-89119 |
RN32,42 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78018-89101 |
RN32,42 W/HEATER |
1 | ||
| 78186-89105 |
RN32,34,42,44..USA W/O HEATER |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78018-89101 |
RN32,42 W/HEATER |
1 | ||
| 78186-89105 |
RN32,34,42,44..USA W/O HEATER |
1 | ||
| Common parts | ||||
| 90202-06011 | ||||
| 90240-05071 | ||||
| 90463-03110 | ||||
| 90464-00199 | ||||
| 91111-40625 | ||||
| 91616-40614 | ||||
| 91651-40616 | ||||
| 91655-40816 | ||||
| 91656-40616 | ||||
| 91666-40625 | ||||
| 94110-40600 | ||||
| 94612-10800 | ||||
| 95381-02012 | ||||

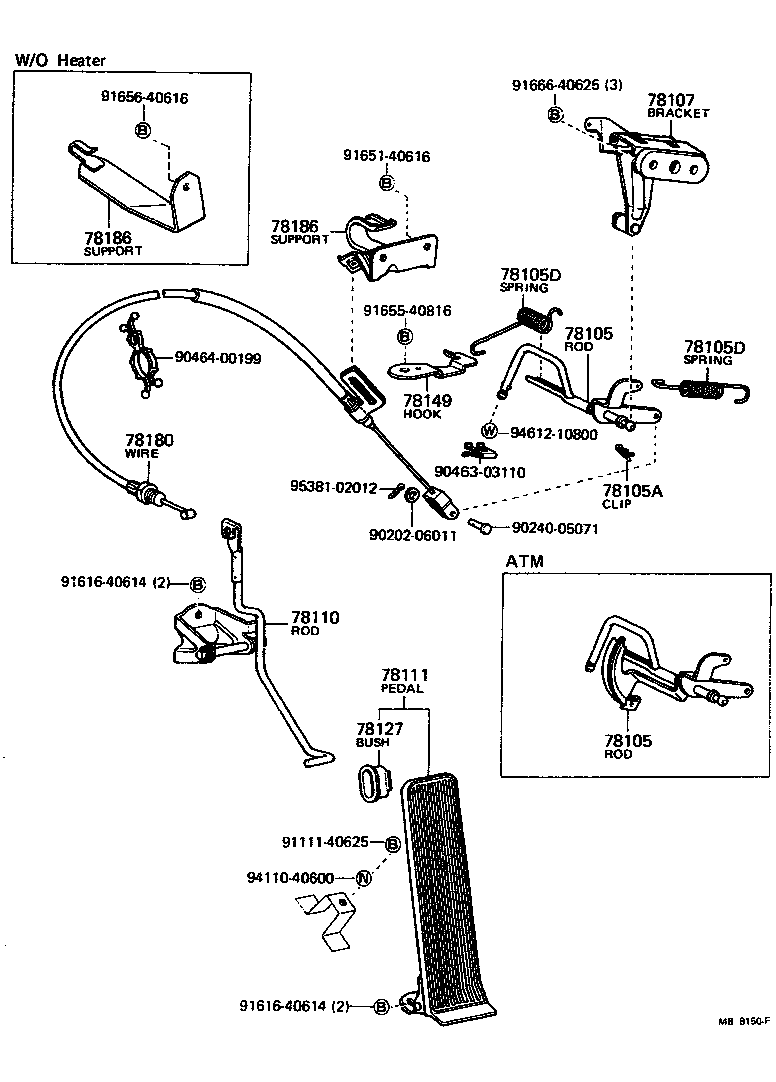

(7908- )RN32,34,42,44
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-89114 |
RN32,42..MTM |
1 | ||
| 78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 | ||||
| 78105-89114 |
RN32,42..MTM |
1 | ||
| 78105A - CLIP (FOR ACCELERATOR TORQUE ROD) | ||||
| 90468-16012 |
RN32,34,42,44 |
1 | ||
| 78105D - SPRING (FOR ACCELERATOR TORQUE ROD) | ||||
| 90508-14407 |
RN32,42 TORSION,WD=1.4 |
1 | ||
| 90506-09020 |
RN32,42 TENSION,WD=0.9 |
1 | ||
| 90508-14032 |
RN32,42..MTM |
1 | ||
| 78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD | ||||
| 78170-89103 |
RN32,42 |
1 | ||
| 78170-89105 |
RN32,42 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89103 |
RN32,42 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-89102 |
LN40,RN32,34,42,44 |
1 | ||
| 78127 - BUSH, ACCELERATOR PEDAL, NO.2 | ||||
| 78127-20010 |
LN40,RN3#,4# |
1 | ||
| 78149 - HOOK, ACCELERATOR TORQUE ROD SPRING | ||||
| 78149-20060 |
RN32,34,42,44 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-89119 |
RN32,42 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-89119 |
RN32,42 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78018-89101 |
RN32,42 W/HEATER |
1 | ||
| 78186-89105 |
RN32,34,42,44..USA W/O HEATER |
1 | ||
| Common parts | ||||
| 90202-06011 | ||||
| 90240-05071 | ||||
| 90463-03110 | ||||
| 90464-00199 | ||||
| 91111-40625 | ||||
| 91616-40614 | ||||
| 91651-40616 | ||||
| 91655-40816 | ||||
| 91656-40616 | ||||
| 91666-40625 | ||||
| 94110-40600 | ||||
| 94612-10800 | ||||
| 95381-02012 | ||||
