RN32L-KRA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

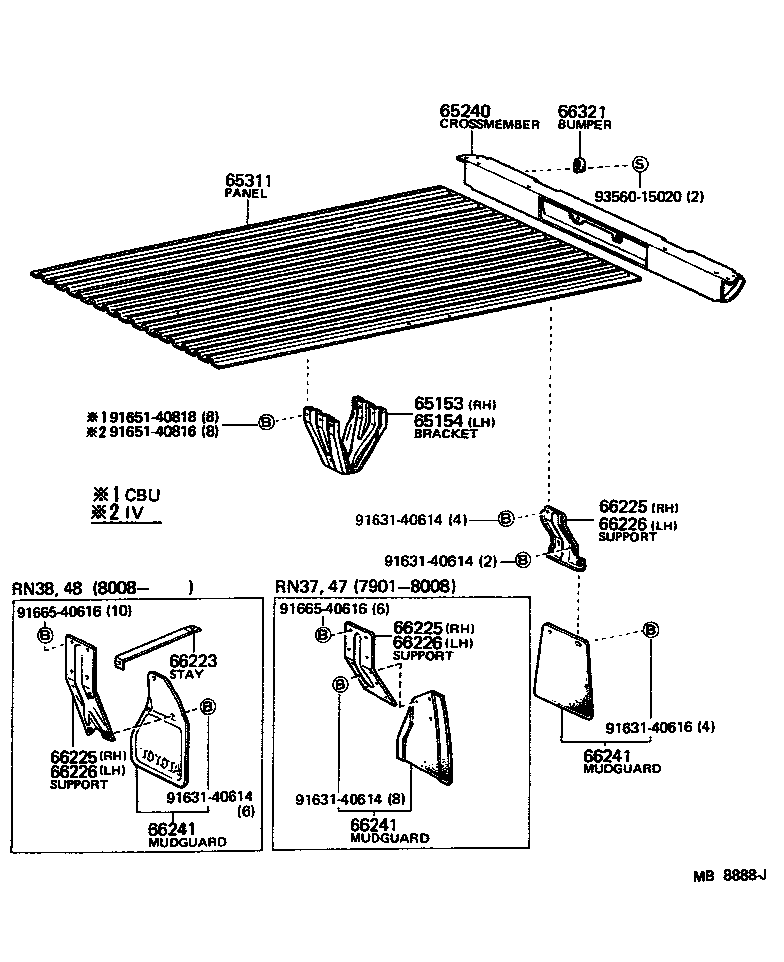

Click highlighted areas on diagram

diagram 65153 65154 65240 65311 66223 66225 66225 66225 66226 66226 66226 66241 66241 66241 66321 9163140614 9163140614 9163140614 9163140614 9163140616 9165140816 9165140818 9166540616 9166540616 9356015020
Part # Description Qty Price
66225 - SUPPORT, REAR MUDGUARD, RH
66225-89104

RN32,42

 1
66225-89103

RN32,42

 1
66225 - SUPPORT, REAR MUDGUARD, RH
66225-89104

RN32,42

 1
66225-89103

RN32,42

 1
66225 - SUPPORT, REAR MUDGUARD, RH
66225-89104

RN32,42

 1
66225-89103

RN32,42

 1
66226 - SUPPORT, REAR MUDGUARD, LH
66225-89103

RN32,42

 1
66225-89104

RN32,42

 1
66226 - SUPPORT, REAR MUDGUARD, LH
66225-89103

RN32,42

 1
66225-89104

RN32,42

 1
66226 - SUPPORT, REAR MUDGUARD, LH
66225-89103

RN32,42

 1
66225-89104

RN32,42

 1
66241 - MUDGUARD, REAR
66241-39016

LN40,RN32,34,42,44

 2
66241 - MUDGUARD, REAR
66241-39016

LN40,RN32,34,42,44

 2
66241 - MUDGUARD, REAR
66241-39016

LN40,RN32,34,42,44

 2
66321 - BUMPER, GATE RUBBER
66321-89106

RN3#,4#

 2
Common parts
91631-40614
91631-40616
91651-40816
91651-40818
91665-40616
93560-15020
