RN32L-KRA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN40,RN32,34,42,44

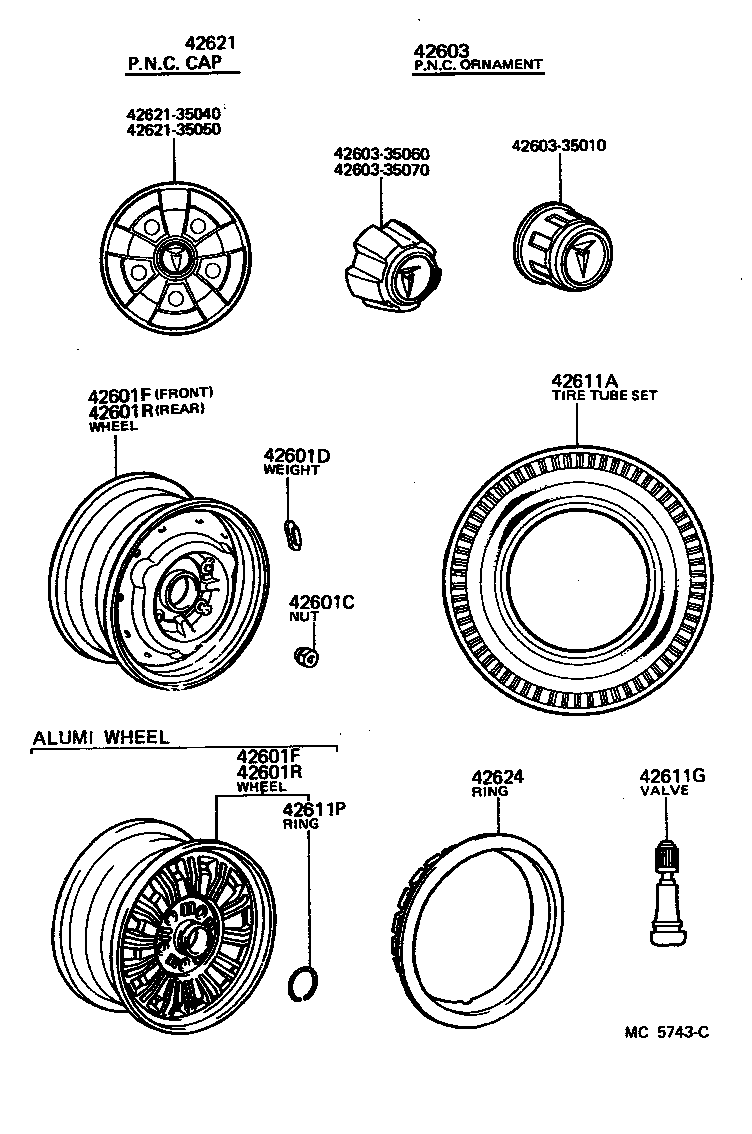

Click highlighted areas on diagram

diagram 42601C 42601D 42601F 42601F 42601R 42601R 42603 4260335010 4260335070 4260336060 42611A 42611G 42611P 42621 4262135040 4262135050 42624
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01007

LN40,RN32,34,42,44..DLX,STD

 20
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03017

LN40,RN32,34,42,44

20G,T=8,20G

 1
90942-03020

LN40,RN32,34,42,44

30G,T=10,30G

 1
90942-03101

LN40,RN32,34,42,44

45G,45G

 1
90942-03100

LN40,RN32,34,42,44

35G,35G

 1
90942-03027

LN40,RN32,34,42,44

60G,T=9.5,60G

 1
90942-03022

LN40,RN32,34,42,44

40G,T=9.5,40G

 1
90942-03031

LN40,RN32,34,42,44

80G,T=9.5,80G

 1
90942-03041

LN40,RN32,34,42,44

10G,T=7.5,10G

 1
90942-03102

LN40,RN32,34,42,44

55G,55G

 1
90942-03025

LN40,RN32,34,42,44

50G,T=9.5,50G

 1
90942-03099

LN40,RN32,34,42,44

25G,25G

 1
90942-03098

LN40,RN32,34,42,44

15G,15G

 1
90942-03029

LN40,RN32,34,42,44

70G,T=9.5,70G

 1
42601F - WHEEL, DISC (FOR FRONT)
42601-35150

LN40,RN32,34,42,44..DLX,STD

5J-14

 2
42601F - WHEEL, DISC (FOR FRONT)
42601-35150

LN40,RN32,34,42,44..DLX,STD

5J-14

 2
42601R - WHEEL, DISC (FOR REAR)
42601-35150

LN40,RN32,34,42,44..DLX,STD

5J-14

 2
42601R - WHEEL, DISC (FOR REAR)
42601-35150

LN40,RN32,34,42,44..DLX,STD

5J-14

 2
42611A - TIRE TUBE SET OR TUBELESS TIRE
42652-35010

RN32,42..(DLX,STD)..HLF

E78-14

 4
98511-70143

RN32,34,42,44..(DLX,STD)..HLF

7.00-14-6,BLACK

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05004

LN40,RN32,34,42,44

 4
42621 - CAP, WHEEL
42621-35040

RN32,34,42,44..STD

 4
42621-35050

RN32,34,42,44..STD

 4
Common parts
42603-35010
42603-35070
42603-36060
42621-35040
42621-35050
