RN32L-KRA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

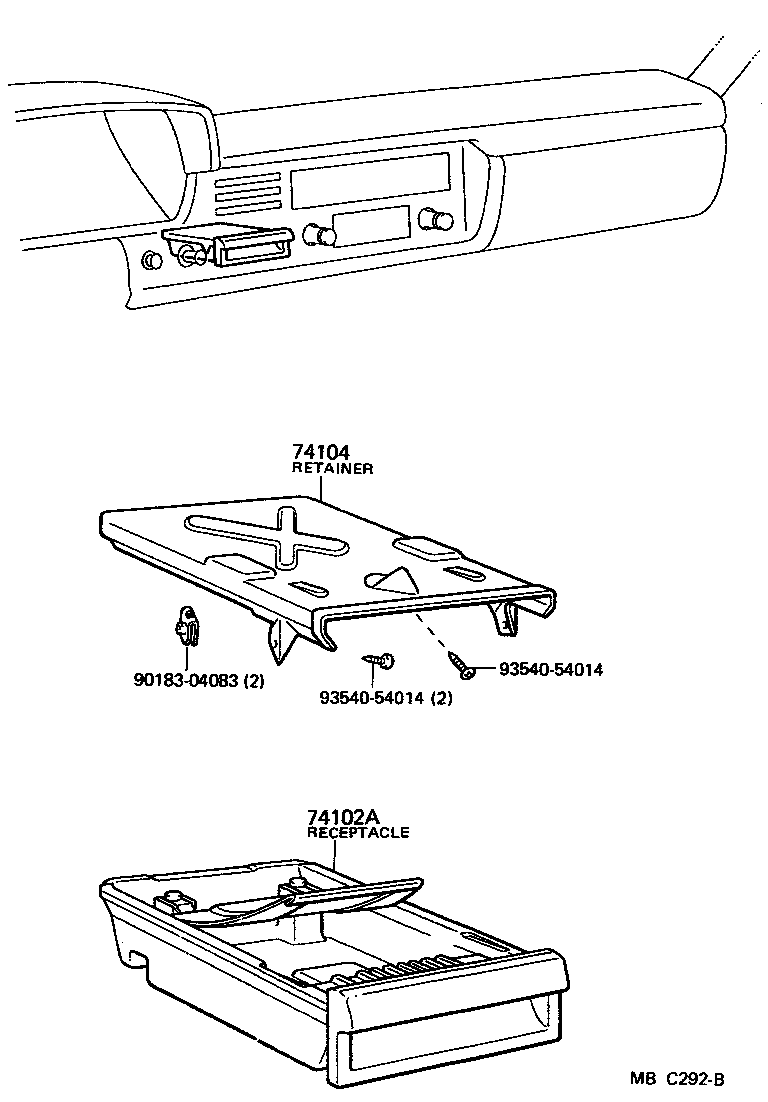

Click highlighted areas on diagram

diagram 74102A 74104 9018304083 9354054014 9354054014
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-8910106

LN40,RN3#,4#

BROWN,BROWN

 1
74102-8910103

LN40,RN3#,4#

DARK GRAY-M,GRAY

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-89104

LN40,RN3#,4#

 1
Common parts
90183-04083
93540-54014
